0106-003 - (M748YH---0002) Chapter 3 3 44 AFU01EMTP (3) R Conveyor Section (TPM-100F) 3.1 Location of Sensors in Conveyor Section

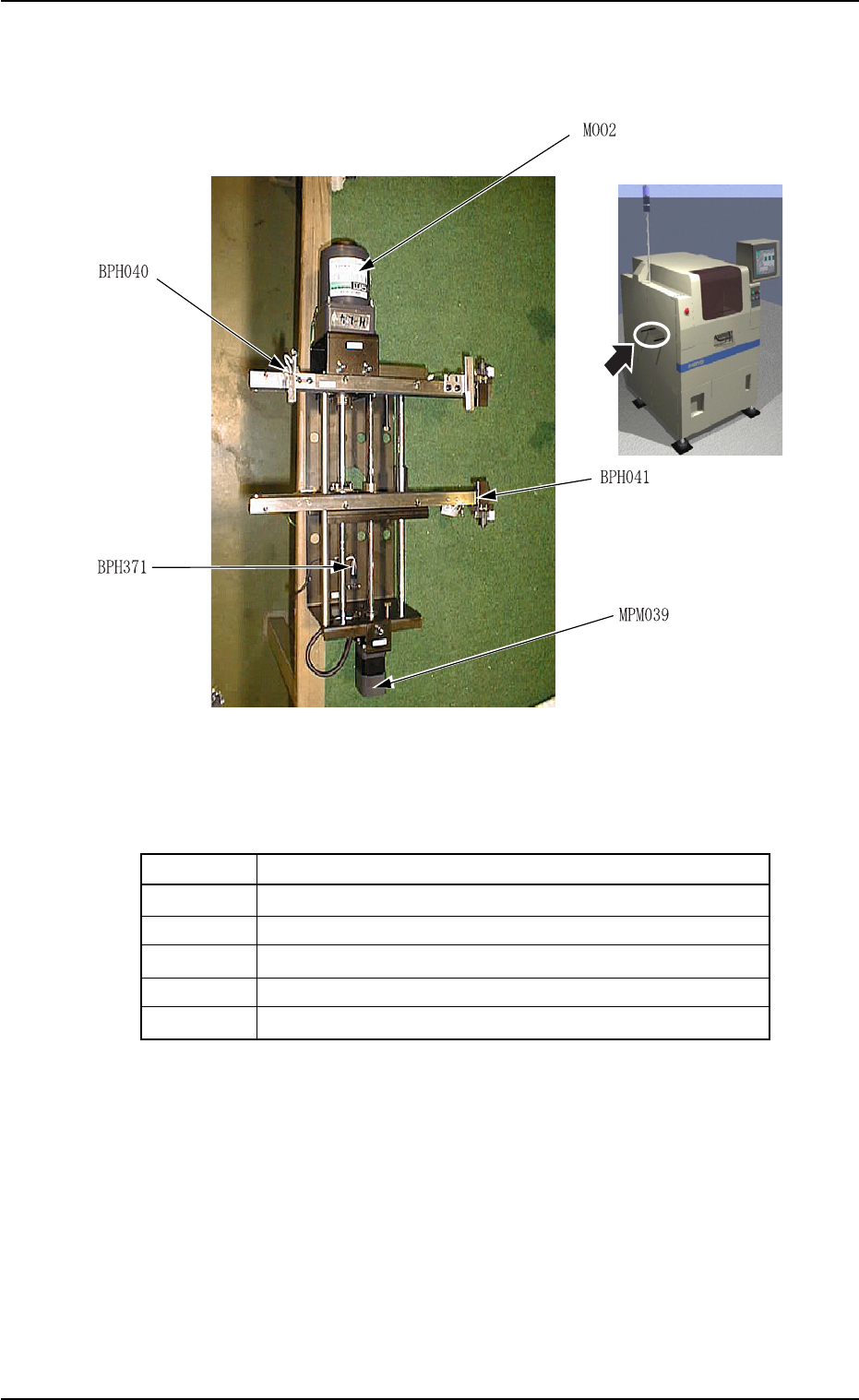

(2) L Conveyor Section (TPM-100R)
Fig. 5C1
Table 5C1
Symbols Name
BPH040 P.C.B. Transfer Check
BPH041 P.C.B. Detection
BPH371 L Conveyor Rail Width Limit (+)
M002 L Conveyor Motor
MPM037 L Conveyor Width Pulse Motor
3.1 Location of Sensors in Conveyor Section
0106-002 Chapter 3 3-43 AFU01EMTP
0106-003 - (M748YH---0002) Chapter 3 3 44 AFU01EMTP
(3) R Conveyor Section (TPM-100F)
3.1 Location of Sensors in Conveyor Section
(4) R Conveyor Section (TPM-100R)
Fig. 5C2
Table 5C2
Symbols Name
BPH044 P.C.B. Arrival Check
BPH045 P.C.B. Passage Check
BPH391 R Conveyor Rail Width Limit (+)
M003 R Conveyor Motor
MPM039 R Conveyor Width Pulse Motor
YSV04E P.C.B. Stopper Solenoid Valve (Outward)
YSV04F P.C.B. Stopper Solenoid Valve (Backward)
0106-003 Chapter 3 3 45 AFU01EMTP
3.1 Location of Sensors in Conveyor Section
