3.2 Location of Sensors in T able Section 3.2 Location of Sensors in T able Section Fig. 5C3 0106-002 Chapter 3 3 46 AFU01EMTP

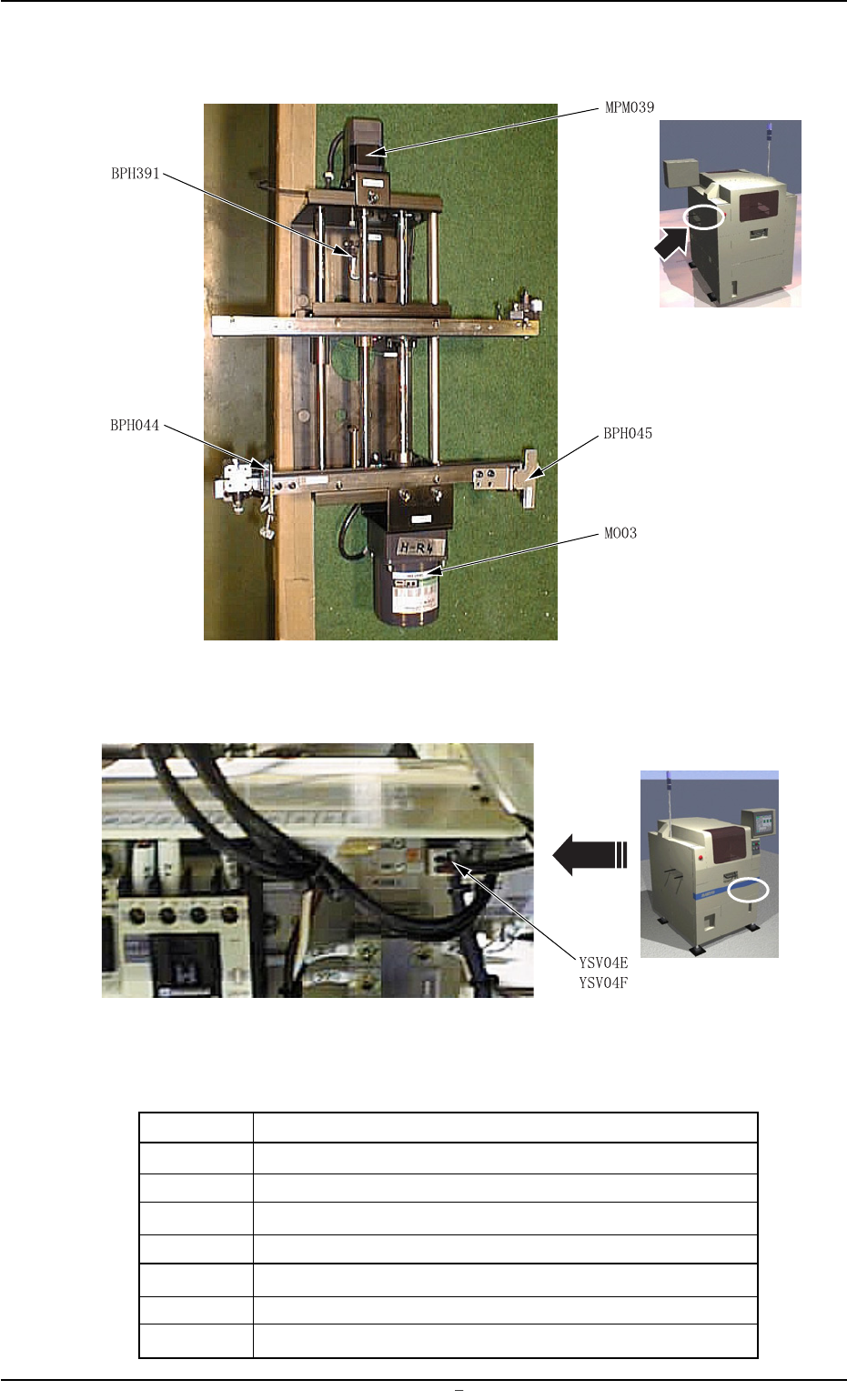

(4) R Conveyor Section (TPM-100R)
Fig. 5C2
Table 5C2
Symbols Name
BPH044 P.C.B. Arrival Check
BPH045 P.C.B. Passage Check
BPH391 R Conveyor Rail Width Limit (+)
M003 R Conveyor Motor
MPM039 R Conveyor Width Pulse Motor
YSV04E P.C.B. Stopper Solenoid Valve (Outward)
YSV04F P.C.B. Stopper Solenoid Valve (Backward)
0106-003 Chapter 3 3 45 AFU01EMTP
3.1 Location of Sensors in Conveyor Section
3.2 Location of Sensors in Table Section
3.2 Location of Sensors in Table Section

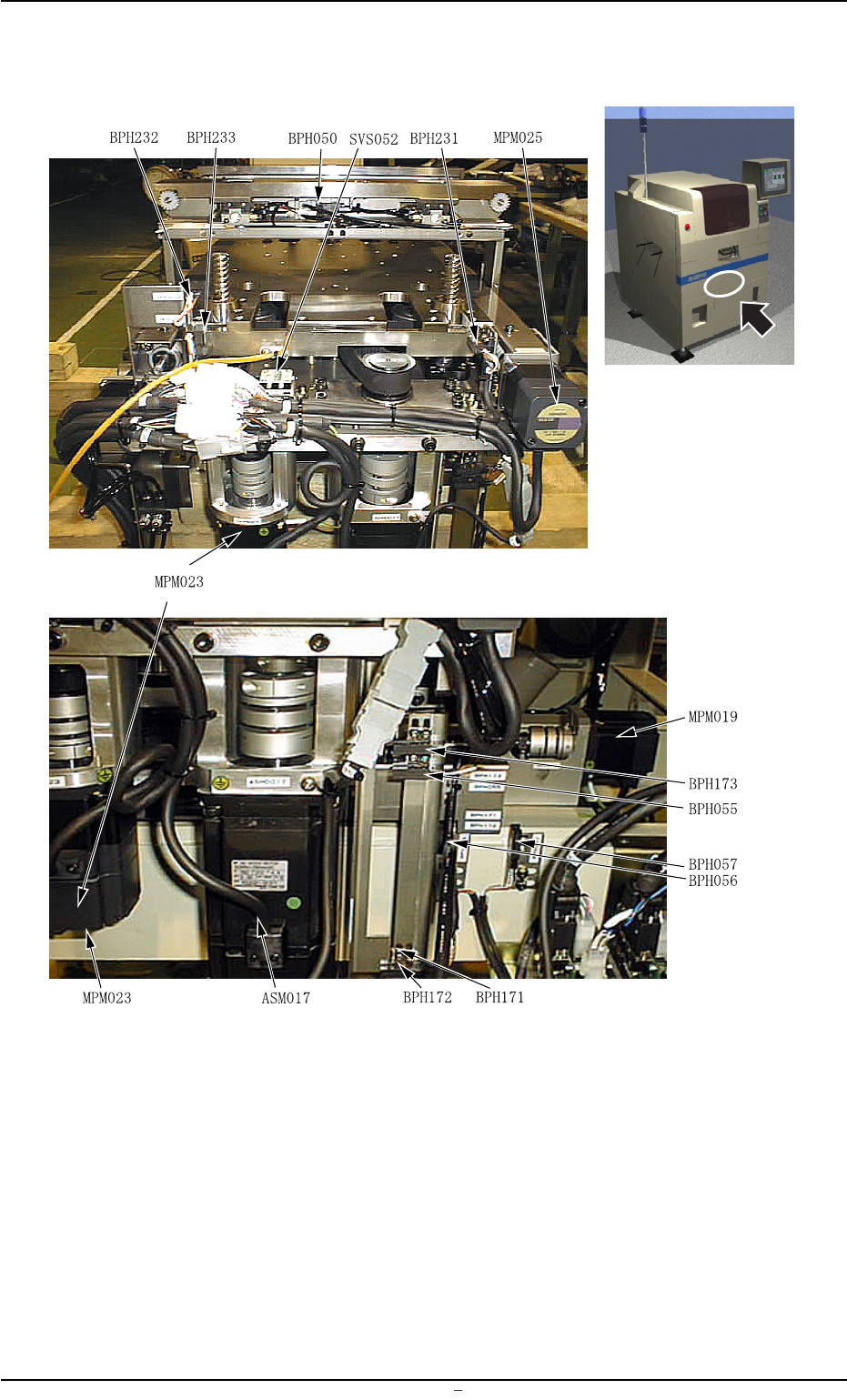

Fig. 5C3
0106-002 Chapter 3 3 46 AFU01EMTP

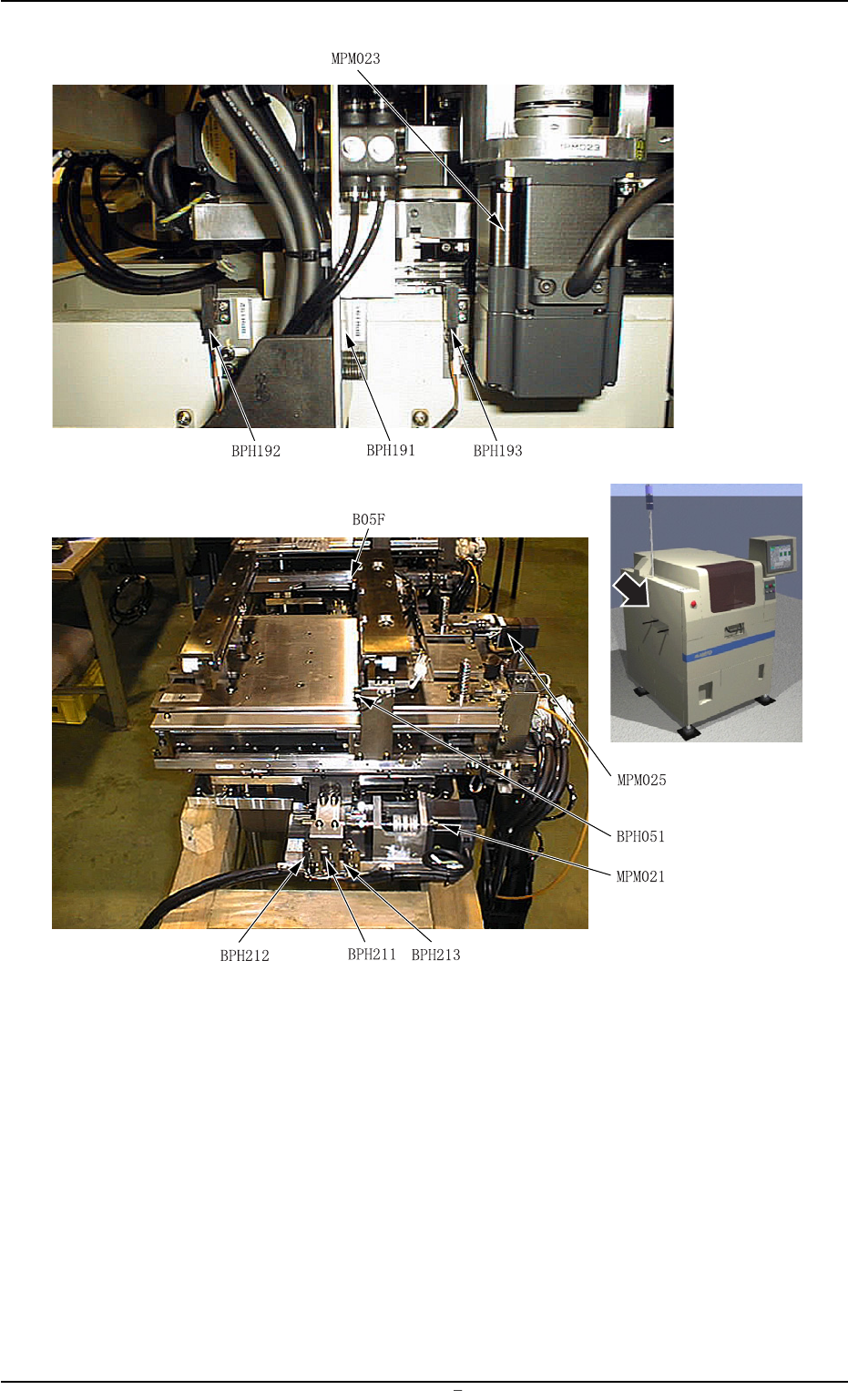

Fig. 5C4
0106-002 Chapter 3 3 47 AFU01EMTP
3.2 Location of Sensors in Table Section
