"Window" Menu T able 3B9 Command Menus Functions Icons Cascade When several "Pattern Program" windows are opened at the same time, cascading the windows overlays them so that you can see each title ba…
"View" Menu Table 3B6
Command Menus Functions Icons
View PCB Image Not Available
Tree Data Select A pane opens on the left side of the editing sheet and dis-
plays the tree view of the data names as a group of data
that can be edited.
Tab Data Select This classifies the data to be edited into each tab sheet.
At least, either "Tree View Select" or "Tab Data Select" must
be selected.
Image Zoom... Not Available
Change Font... This changes the font used in the sheets.
"Insert" Menu Table 3B7
Command Menus Functions Icons
File... Not Available
"Tool" Menu Table 3B8
Command Menus Functions Icons
User Option... This changes the display mode of the sheets and the direc-
tion of the cursor movement.
FD Backup... This saves the currently displayed pattern program on a
floppy disk.
Tool When the button is pressed, the “Edit Tool” bar appears on
the screen.
When the [Copy] button on the “Edit Tool” bar is pressed, the
P.C.B. recognition coordinate data can be transferred to the
screen recognition coordinate data.
0106-002 Chapter 1 2 28 AFU01EDTP
2.1 Navigations in “Pattern Program” Edit Window
"Window" Menu Table 3B9
Command Menus Functions Icons
Cascade When several "Pattern Program" windows are opened at the
same time, cascading the windows overlays them so that
you can see each title bar.
The pattern program to be edited can be selected from "List
of Displayed Windows" located at the bottom of the pull-down
menu.
Tile When several "Pattern Program" windows are opened at the
same time, each window is re-arranged and the programs
appear in adjacent windows.
Separate This splits one sheet into two areas.
List of Displayed This lists the names (pattern program names) of all displayed
Windows windows.
In the case of "Cascade", the pattern program to be edited
can be selected from "List of Displayed Window". A check
mark (9) appears next to the name of the currently active
window.
"Help" Menu Table 3B10
Command Menus Functions Icons
Contents... Not Available
Help Topics... Not Available
About... This displays the version of the current application
(software).
0106-002 Chapter 1 2 29 AFU01EDTP
2.1 Navigations in “Pattern Program” Edit Window

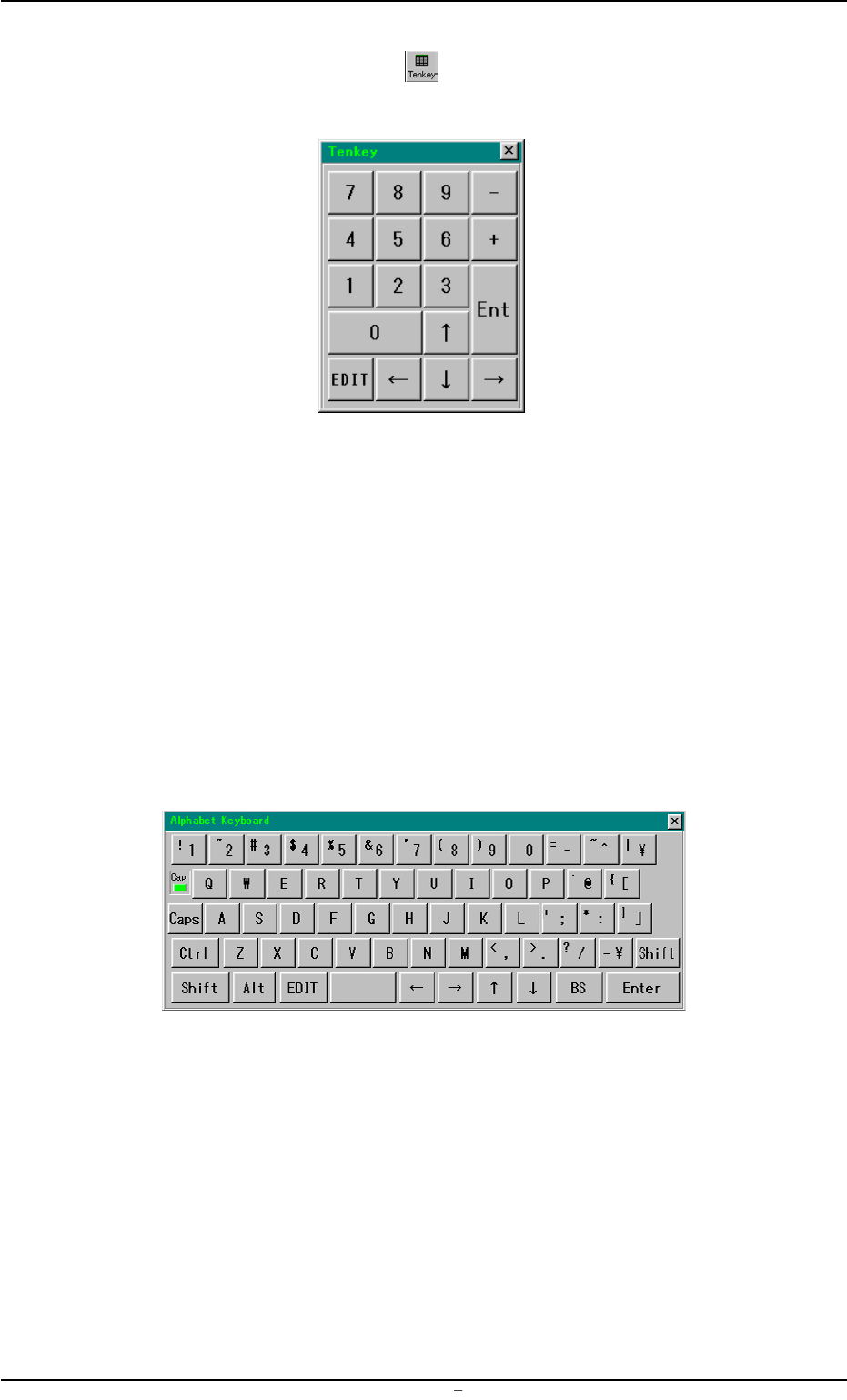

(2) Entry of Numerical Values
When the "Tenkey" icon
on the toolbar is pressed, the follow-
ing tenkey window appears.
Fig. 3B78 "Tenkey" Window
When you double-push a text box quickly in which a numerical
value should be entered, the parameter in the text box is high-
lighted, indicating that a numerical value should be entered. Enter
a value, using the number keys on the tenkey window and press
the [Ent] key.
(3) Entry of Alphabetic Characters
When a pattern program must be loaded or saved or a file name
must be entered, the following virtual keyboard appears.
Fig. 3B79 Virtual Keyboard
Use the alphabetic keys to enter a parameter and press the [Enter]
key.
0106-002 Chapter 1 2 30 AFU01EDTP
2.1 Navigations in “Pattern Program” Edit Window
