8. Half-Y early Maintenance Linear Guide for P .C.B. Clamping Lubrication Apply grease with a brush or a spatula. 0009-002 Chapter 3 1 25 AFUQ01EINP X-Axis Linear Guide Apply grease with a brush or a spatula. Lubrication…
Backup Table Z-Axis Guide
Bushing
(1) Move up the backup table
Z axis.
(2) Apply grease with a brush
or a spatula.
Lubrication
Ball Screw for Chute Width
Adjustment
(1) Move up the backup table
Z axis.
(2) Apply grease with a brush
or a spatula.
Lubrication
Linear Guide for Chute Width
Adjustment
(1) Move up the backup table
Z axis.
(2) Apply grease with a brush
or a spatula.
Lubrication
Backup Table Z-Axis Ball
Screw
(1) Move up the backup table
Z axis.
(2) Apply grease with a brush
or a spatula.
Lubrication

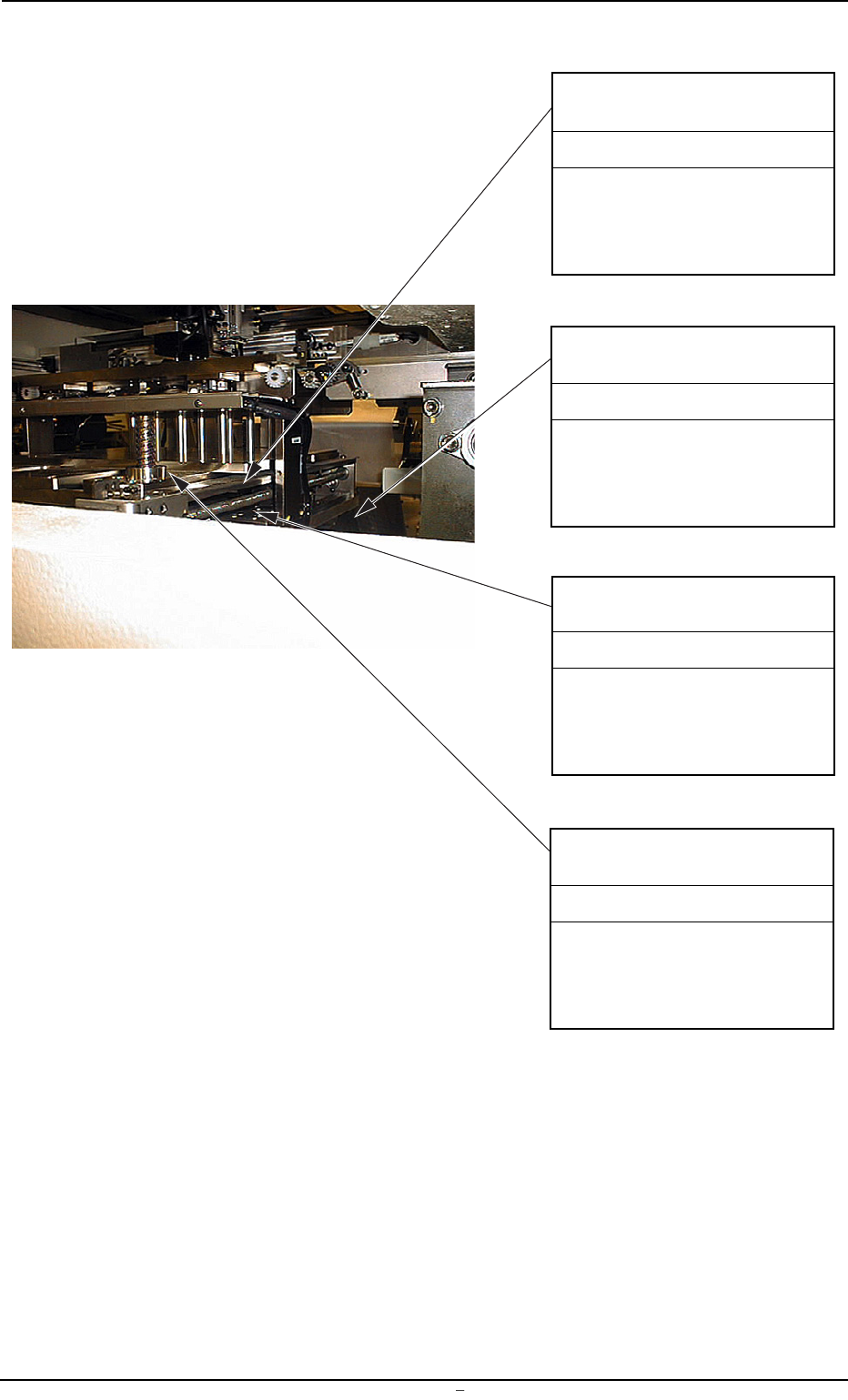

Fig. 5A26 Chuck Section
8. Half-Yearly Maintenance
0009-002 Chapter 3 1 24 AFU01EINP
8. Half-Yearly Maintenance
Linear Guide for P.C.B.
Clamping
Lubrication
Apply grease with a brush or
a spatula.
0009-002 Chapter 3 1 25 AFUQ01EINP
X-Axis Linear Guide
Apply grease with a brush or
a spatula.
Lubrication
P.C.B. Stopper Guide Bushing
Apply grease with a brush.
Note: If a large amount of
grease is applied to the
ball screw, it may be
dispersed over a P.C.B.
and the screen. After
applying grease to the
ball screw, brush the
surface or scrape with a
spatula until a small
amount of grease
remains.
Lubrication

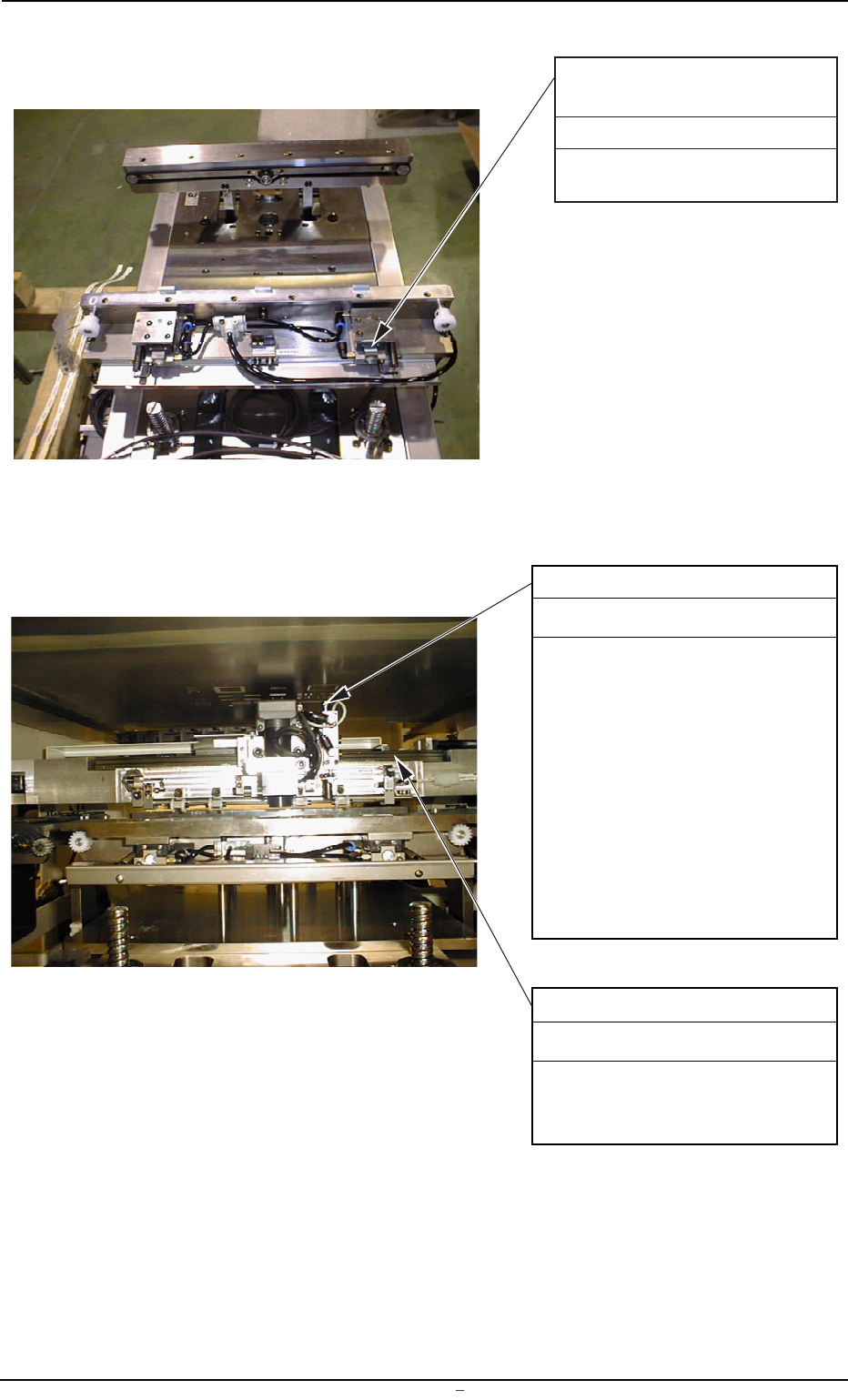

Fig. 5A27 Chuck Section
Fig. 5A28 P.E.C. Recognition Section
0009-002 Chapter 3 1 26 AFUQ01EINP
8. Half-Yearly Maintenance
X-Axis Ball Screw
Apply grease with a brush or a
spatula.
Note: If a large amount of
grease is applied to the
ball screw, it may be
dispersed over a P.C.B.
and the screen. After
applying grease to the
ball screw, brush the
surface or scrape with a
spatula until a small
amount of grease
remains.
Lubrication
Y-Axis Ball Screw
Apply grease with a brush or a
spatula.
Note: If a large amount of
grease is applied to the
ball screw, it may be
dispersed over a P.C.B.
and the screen. After
applying grease to the
ball screw, brush the
surface or scrape with a
spatula until a small
amount of grease
remains.
Lubrication
Y-Axis Linear Guide
Apply grease with a brush.
Note: If a large amount of
grease is applied, it may
adhere to a P.C.B.
Lubrication

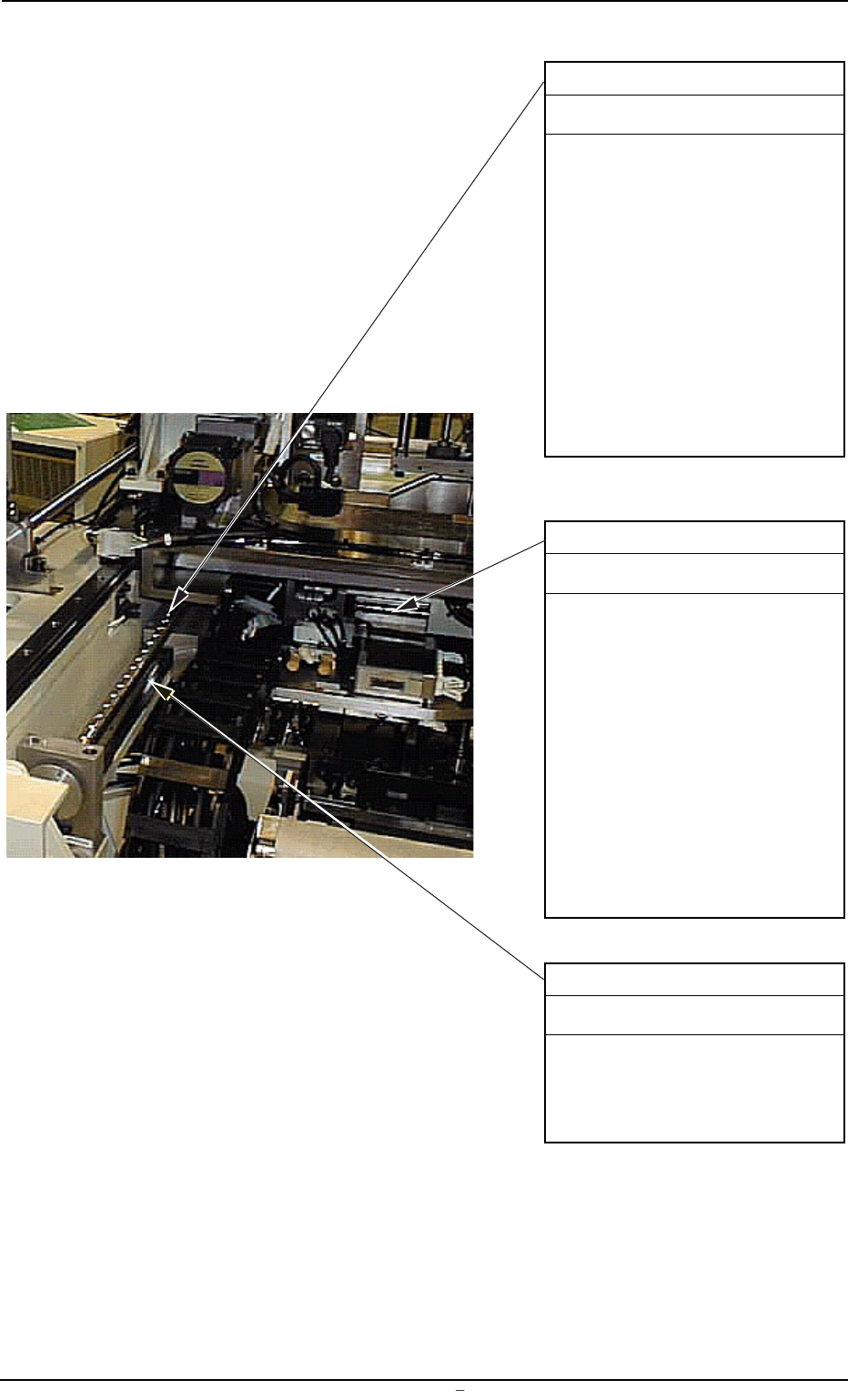

Fig. 5A29 P.E.C. Recognition Section
