(3) Operation Mode It can be selected whether or not solder paste should be printed on the P .C.B. to be produced. PRINT : The machine prints solder paste during automatic opera- tion. P ASS : The machine pereforms only …
1. Pattern Program
1.1 Model Name
When a pattern program should be saved, up to 8 characters (alphanumerics
and symbols) can be used as a pattern program name.
1.2 Operation Data

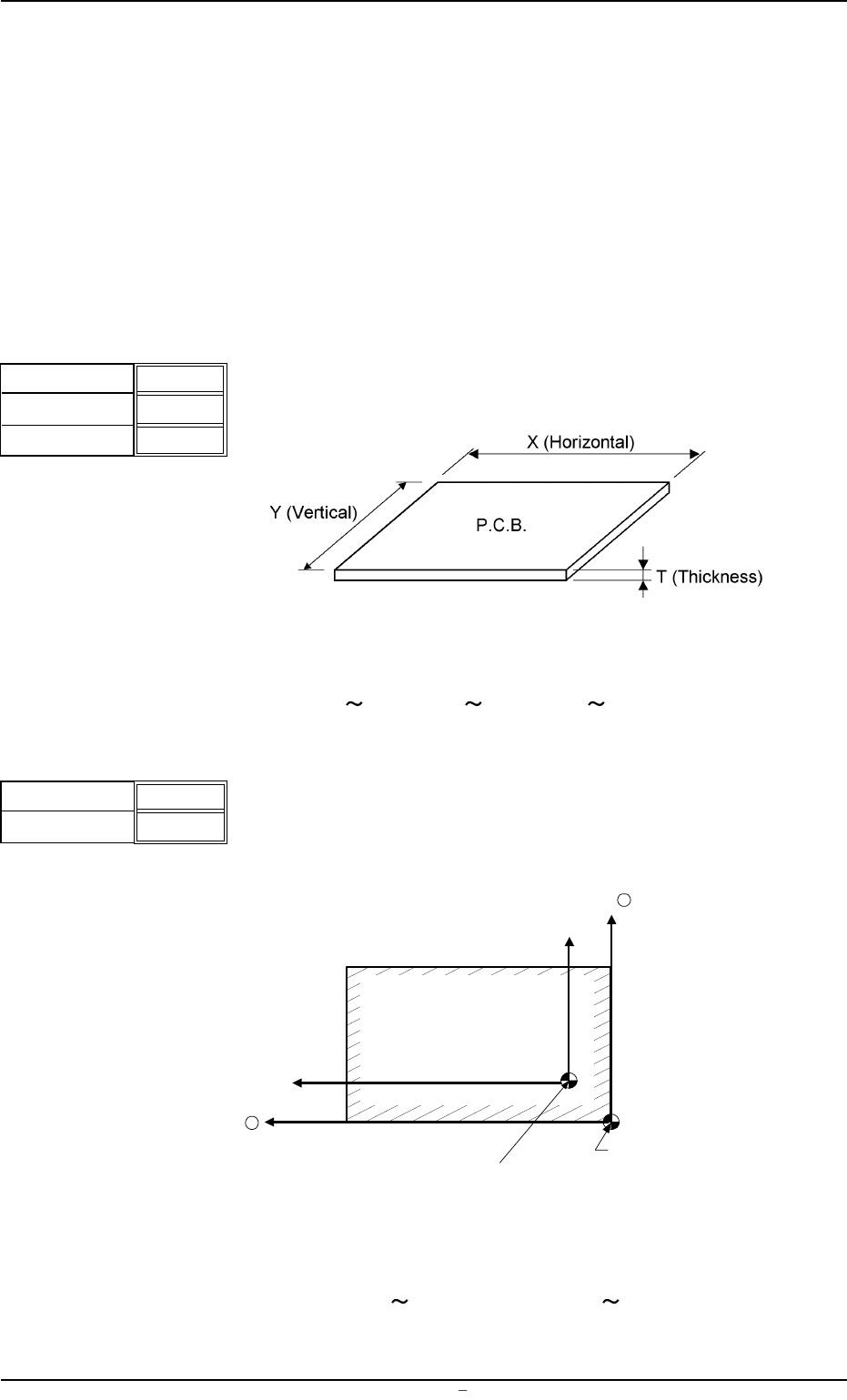

1.2.1 P.C.B. Data
(1) P.C.B. Size
X (horizontal), Y (vertical), and T (thickness)
Set the dimensions of the P.C.B. to be produced.
Unit: mm
Fig. 3B2
Data Input Range
X: 50
330 Y: 35 250 T: 0.5 5.0
(2) P.C.B. Origin OFfset
X (horizontal) and Y (vertical)
Set the offset values to correct the difference between the refer-
ence point (N
0
) of the pattern program and the P.C.B. origin (P
0
) .
Unit: mm
Fig. 3B4
Data Input Range
X: -99.999
+99.999 Y: -99.999 +99.999
X
Y
000.00
000.00
T
2.00
Fig.3B1
X
Y
+00.000
+00.000
Fig.3B3
P
0
(P.C.B. Origin)
Y +
X +
P.C.B.
N
0
(Printing Coordinates Reference)
1.1 Model Name
0004-001 Chapter 1 2 2 AFU01EDTP

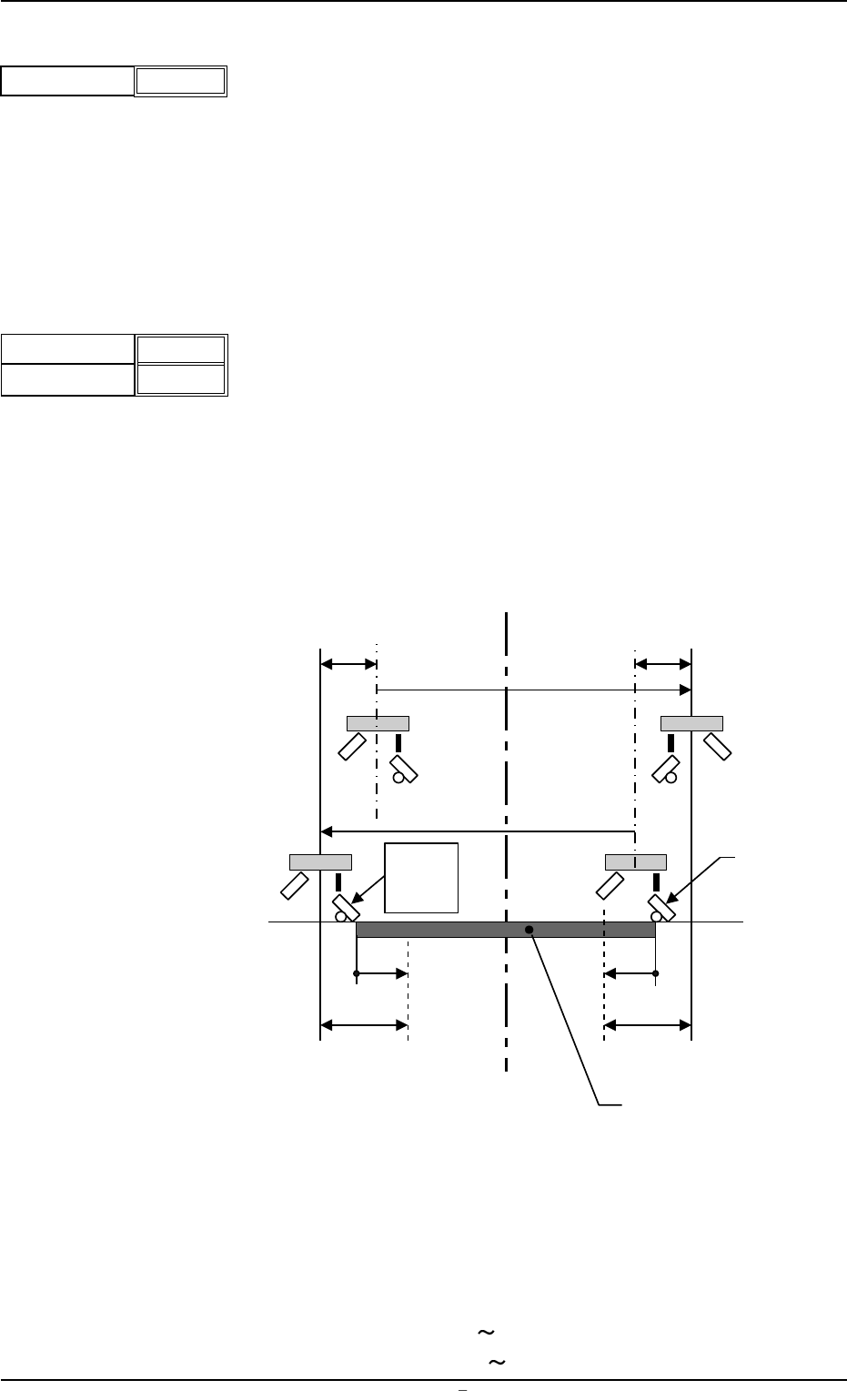

(3) Operation Mode
It can be selected whether or not solder paste should be printed
on the P.C.B. to be produced.
PRINT: The machine prints solder paste during automatic opera-
tion.
PASS : The machine pereforms only P.C.B. transfer during auto-
matic operation.
(4) Print Area
Set parameters as offset values of the P.C.B. end plane in the Y
direction.
Unit: mm
Enter the offset values based on the pattern program coodinates
of the end planes on the origin and rear sides. When the defaults
"0" (zero) are set, the whole area of the P.C.B. is printed.
Various offsets are considered in the actual printing range as shown
below.
L1, L2 : Printing Area Data (based on the pattern program origin)
X2 : Overshoot at End of Printing
S
o : Travel from Previous End Position at Printing Start (Squee-
gee Offset)
Fig.3B7
Data Input Range
Origin Side : -10 +250
Rear Side : -250
+10
Origin
Depth
+ 000.00
+ 000.00
Fig.3B6
1.2 Operation Data
0004-001 Chapter 1 2 3 AFU01EDTP
Operation Mode Print
Fig.3B5
Screen Center
S
o
S
o
Squeegee
L1
X2
(-)
P.C.B.
Pattern
Program
Origin
L1
X2
(+)
1.2.2 Print Data
(1) Screen Basis
Select a reference type of the screen frame.
Center Ref. : The center of the screen frame is regarded as a
reference point.
Front Ref. : The front side of the screen frame is regarded as a
reference point.
Rear Ref. : The rear side of the screen frame is regarded as a
reference point.
(2) Round-Way Printing
It can be selected whether or not the round-way printing operation
should be performed.
ON : The machine performs the round-way printing operation.
OFF: The machine does not perform the round-way printing op-
eration.
(3) Frame Select
Select dimensions of the screen frame to be used.
Unit: mm
650
××
××
×550
550
××
××
×550 600
××
××
×550 550
××
××
×650
(4) Prntg. Press. [N]
Set the printing pressures of the front and rear squeegees.
Unit: N
Data Input Range: 10
147 N
(5) Squeegee Select
Select the length ("270" or "350") of the squeegee to be used.
Unit: mm
(6) Squeegee Spd.
Select the speed at which the squeegees move back and forth for
printing.
Unit: mm/s
For. : Set the speed at which the squeegees move forward (from
the rear to the front side).
Back. : Set the speed at which the squeegees move backward
(from the front to the rear side).
Front Side
Rear Side
040
040
Fig.3B11
005
005
0009-002 Chapter 1 2 4 AFU01EDTP
1.2 Operation Data
Fig.3B8
Screen Basis
Center Ref.
Round-Way Printing
OFF
Fig.3B9
Frame Select
650 550
Fig.3B10
Squeegee Select
270
Fig.3B12
FOR.
BACK
Fig.3B13
