2.4 "P.C.B. Backup" Tab
This tab sheet can be used to specify how to support a P.C.B.
• Sheet Layout
When you push the "PCB Backup" tab in the "Pattern Program" edit
window, the following tab sheet appears.

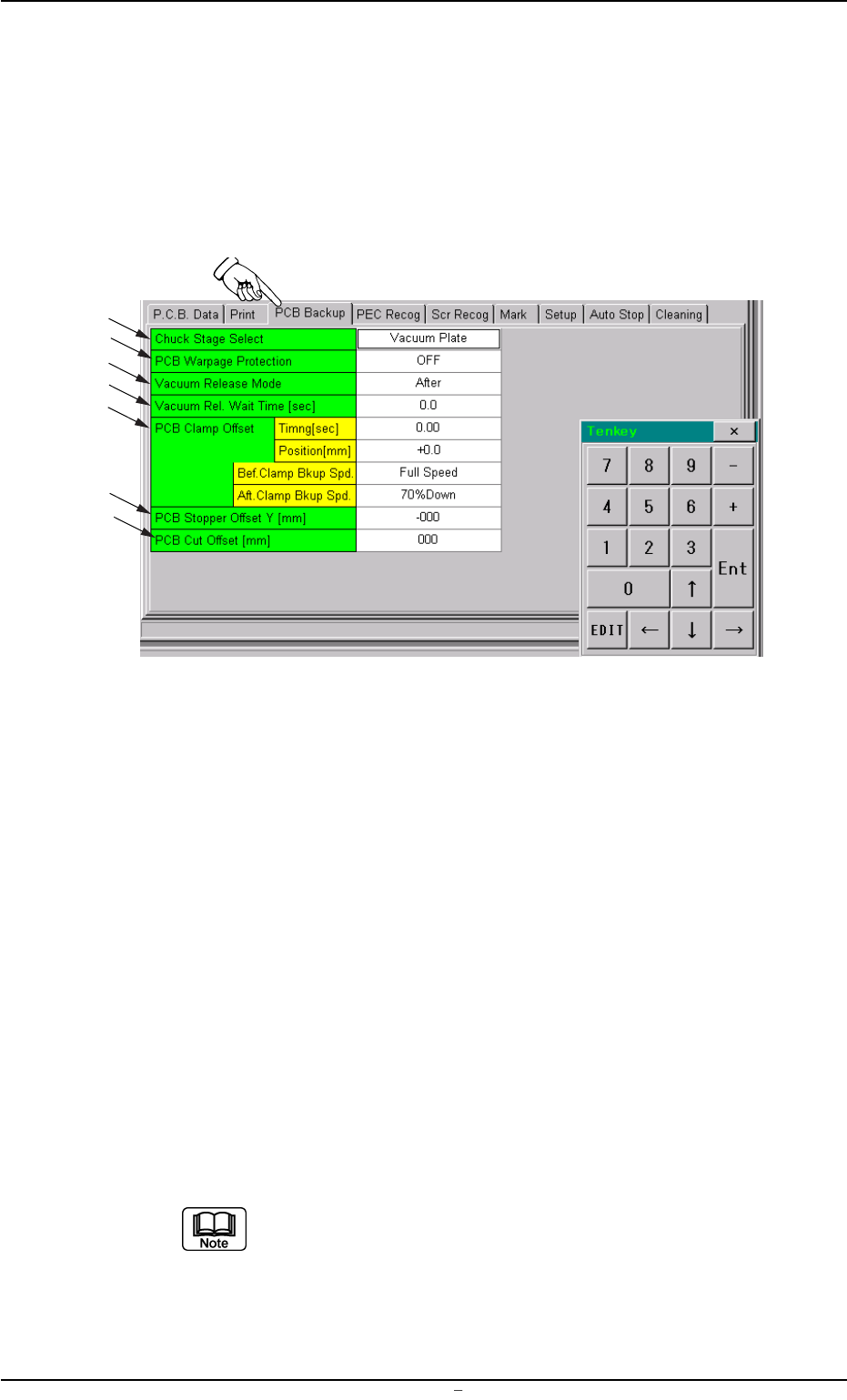

Fig. 3B88 "PCB Backup" Tab Sheet
• Sheet Composition
*1 Chuck Stage Select
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "Backup
Jig", "Backup Pin", or "Vacuum Plate" from the drop-down list.
*2 PCB Warpage Protection
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "OFF" or
"ON" from the drop-down list.
*3 Vacuum Release Mode
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "Before" or
"After" from the drop-down list.
The value can be changed only when "Vacuum Plate" is
selected in the "Chuck Stage Select" text box *1.
2.4 “P.C.B. Backup” Tab
*1
*2
*7
*6
*4
*5
*3
0106-002 Chapter 1 2 38 AFU01EDTP
*4 Vacuum Rel. Wait Time [sec]
Make the tenkey window appear and enter a value in the text box.
The value can be changed only when "Vacuum Plate" is selected
in the "Chuck Stage Select" text box *1.
*5 PCB Clamp Offset
Timing [sec] : Make the tenkey window appear and
enter a value in the text box.
Position [mm] : Make the tenkey window appear and
enter a value in the text box.
Bef.Clamp Bkup Spd.: The ascending speed of the backup
table can be set in the range of 10 steps
(Full Speed to 90% Down) before the
P.C.B. is clamped.
Aft.Clamp Bkup Spd. : The ascending speed of the backup
table can be set in the range of 10 steps
Full Speed to 90% Down) after the
P.C.B. is clamped.
*6 P.C.B. Stopper Offset Y [mm]
Make the ten-key window appear and enter a value in the text box.
*7 PCB Cut Offset [mm]
Open the “Tenkey” window and enter a parameter in the text box.
0106-002 Chapter 1 2 39 AFU01EDTP
2.4 “P.C.B. Backup” Tab
2.5 "PEC Recog" Tab
• Sheet Layout
When you push the "PEC Recog" tab in the "Pattern Program" edit
window, the following tab sheet appears.

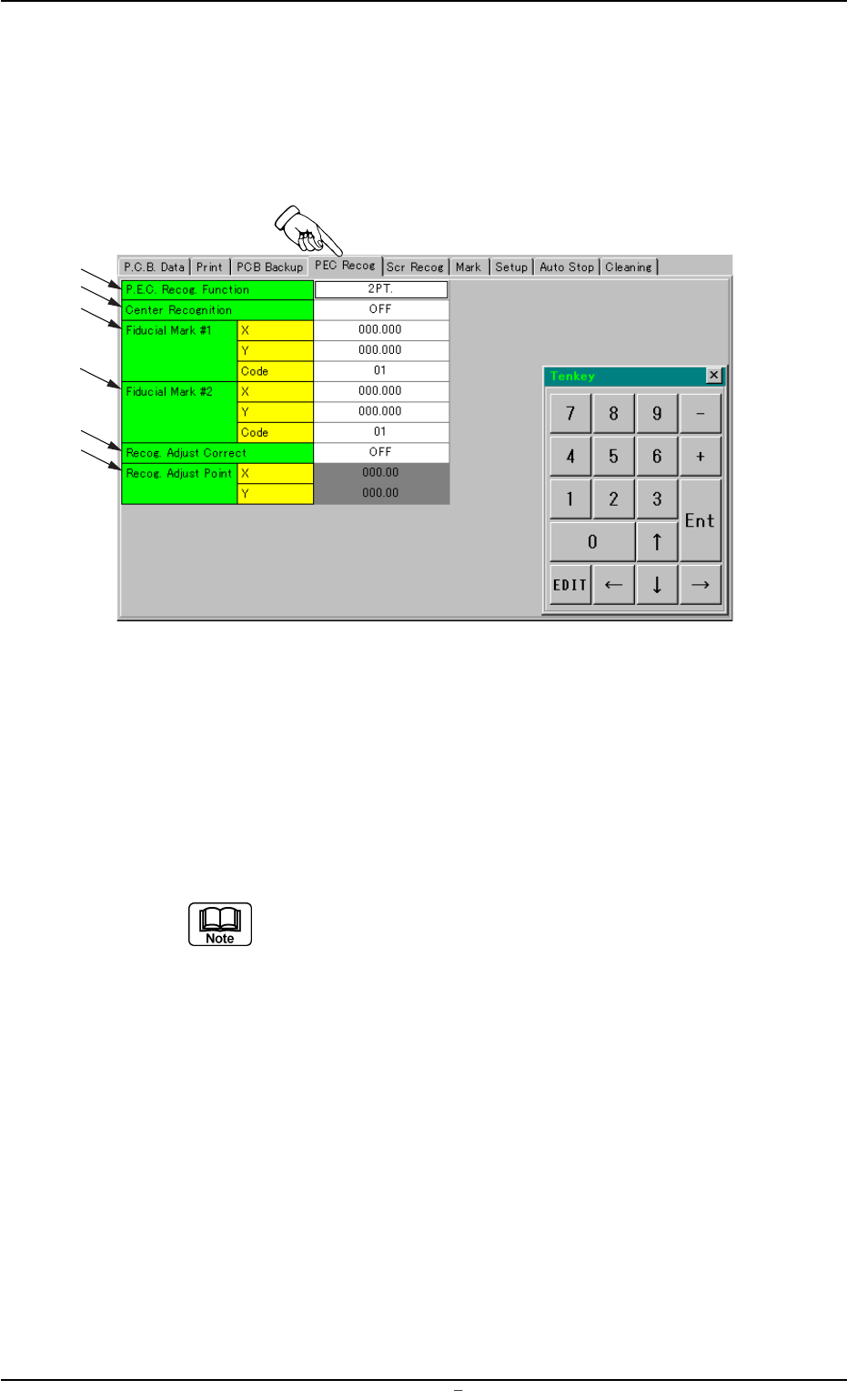

Fig. 3B89 "PEC Recog" Tab Sheet
• Sheet Composition
*1 P.E.C. Recog. Function
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "2PT."
from the drop-down list.
The drop-down list has rows of options - "OFF", "1PT.",
"2PT.", and "3PT.". However, be sure to select only "2PT.".
*2 Center Recognition
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "OFF" or
"ON" from the drop-down list.
*3 Fiducial Mark #1
Make the ten-key window appear and enter values in the "X (hori-
zontal)", "Y (vertical)", and "Code" text boxes.
*4 Fiducial Mark #2
Make the ten-key window appear and enter values in the "X (hori-
zontal)", "Y (vertical)", and "Code" text boxes.
2.5 “PEC Recog” Tab
0004-001 Chapter 1 2 40 AFU01EDTP
