0009-002 Chapter 2 1 4 AFU01ETRP 1.1 "MAC. ERR." Window • Window Layout When an error is detected, the following "MAC. ERR." window opens. Fig. 4A2 Example of "MAC. ERR." Window • Window Com…

0106-003 Chapter 2 1 3 AFU01ETRP-

*4 [MAINT. STOP] Button

Pressing this button displays the contents of a situation where the

machine has stopped under the condition specified in advance for

maintenance.

When this button flickers in blue and gray, it indicates that the

machine has stopped for maintenance concurrently with another

error (machine error).

Refer to "1.4 "MAINT. STOP" Window" for details.

*5 [Information] Button

Pressing this button displays the contents of an alarm issued un-

der the condition specified in advance in order to stop the machine

due to a shortage of components, etc.

When this button flickers in blue and gray, it indicates that the above

condition is fulfilled concurrently with another error (machine er-

ror).

Refer to "1.5 "Information" Window" for details.

*6 [RESET] Button

Pressing this button cancels an alarm (sound) and closes the "ER-

ROR" window.

*7 [BUZZER RESET] Button

Pressing this button cancels an alarm (sound) only.

When a mark recognition error is displayed, refer to “6.2.3

Manual Alignment Operation” (Section 6)in “Chapter 2” of

“Vol. 1” for details.

When the [STOP] button on the front operation panel is

pressed after the manual alignment operation, the “ER-

ROR” window closes and the previous window resumes.

1. "ERROR" Window

0009-002 Chapter 2 1 4 AFU01ETRP

1.1 "MAC. ERR." Window

• Window Layout

When an error is detected, the following "MAC. ERR." window opens.

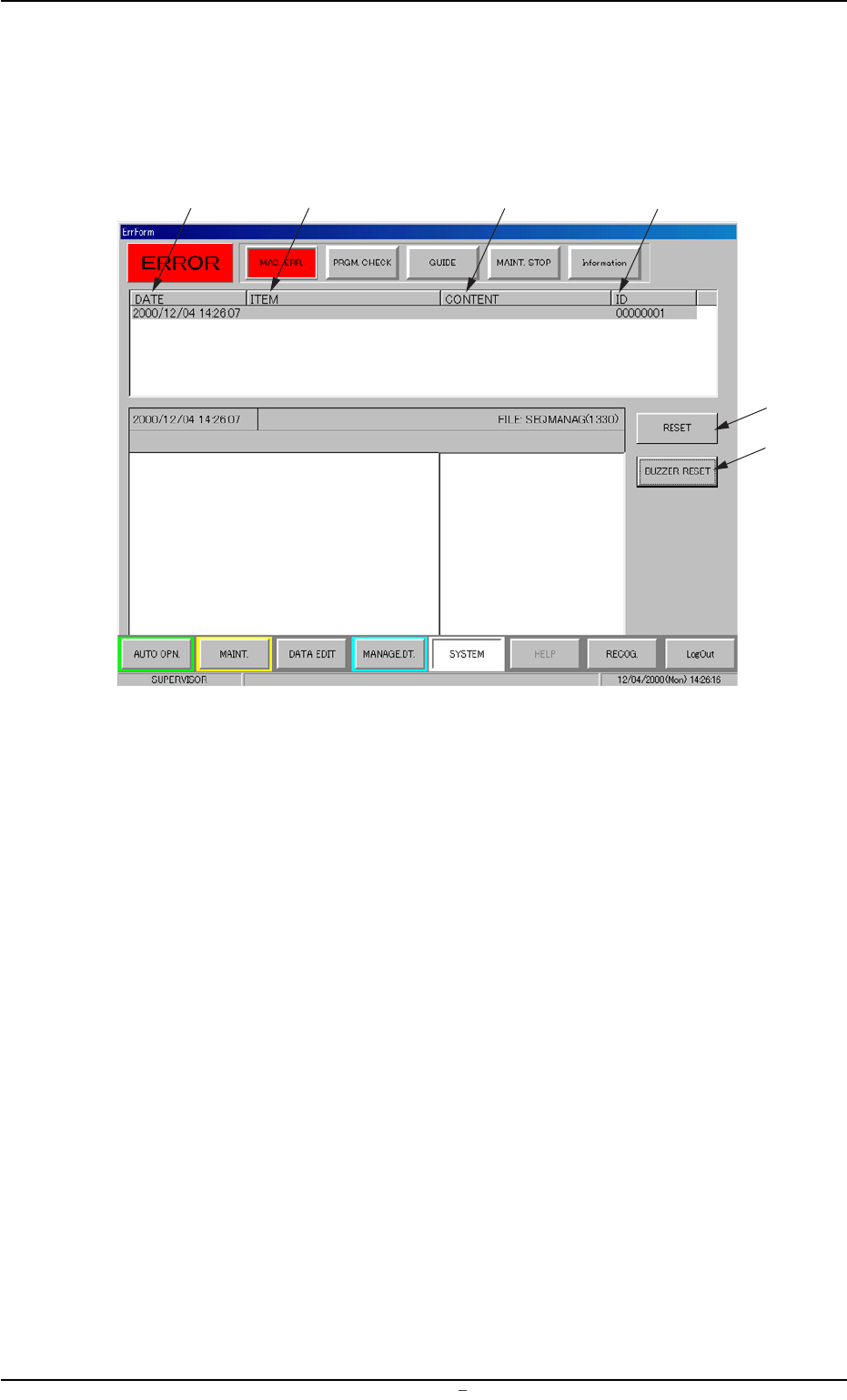

Fig. 4A2 Example of "MAC. ERR." Window

• Window Composition

*1 DATE

Displayed are the date and time of error occurrence.

*2 ITEM

Displayed is an error item.

*3 CONTENT

Displayed are the contents of an error.

*4 ID

Displayed is a number that identifies an error.

When an error has occurred, use this ID as an index and refer to

"2. Troubleshooting after Error Display" (Section 2) for details.

1.1 "MAC. ERR." Window

*5 [RESET] Button

Pressing this button cancels an alarm (sound) and closes the "ER-

ROR" window.

*6 [BUZZER RESET] Button

Pressing this button cancels an alarm (sound) only.

• Reset Procedure from "ERROR" Window

(1) Take notes of the descriptions under "ID", "ITEM", and "CONTENT".

Note: When you have forgotten an error message, refer to the

list of errors in the "Machine Error Recall" window. (Opera-

tion Sequence: [RECALL MSG.] Button (Submenu) → "Ma-

chine Error Recall" Window)

(2) Press the [RESET] button to resume the original window.

(3) Use the found ID as an index and refer to "2. Troubleshooting after

Error Display" (Section 2) for details. Then, reset the machine to its

normal condition.

1.1 "MAC. ERR." Window
