5. W eekly Maintenance DE1: DAPHNE EPONEX GREASE No. 1 T able 5A5 Maintenance Spots Description Grease Cleaning Check T ools, Name DWG Nozzles, No. etc. P .C.B. Chuck Upper Surface of 5A9 Cleaning - V acuum Section Backu…
Camera (Lens)
Remove dirt and dust with a
vacuum cleaner.
Cleaning
Glass Surface of P.C.B.
Recognition Lighting
Remove dirt and dust with a
vacuum cleaner.
Cleaning
0009-001 Chapter 3 1 10-1 AFU01EINP
4. Daily Maintenance

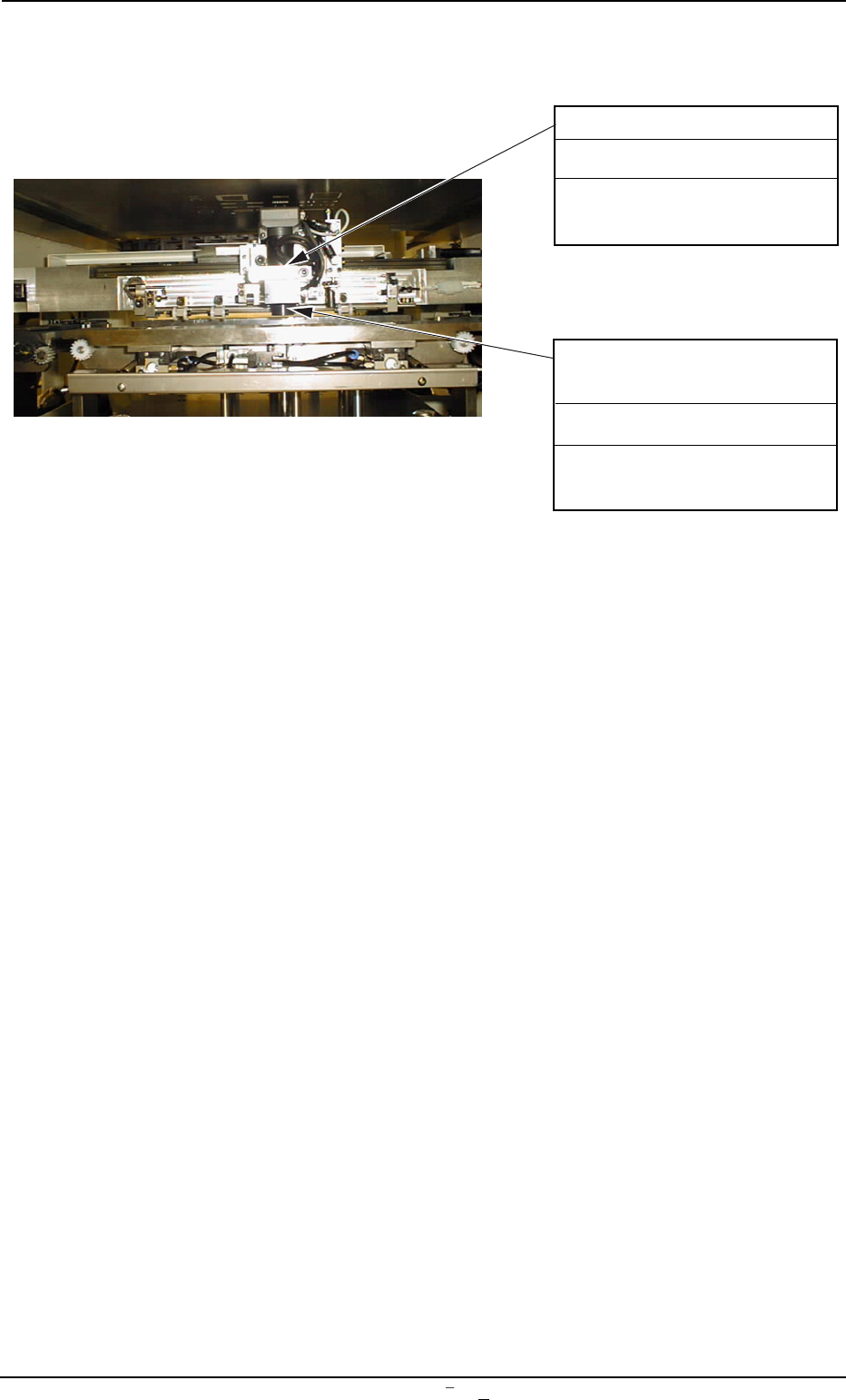

Fig. 5A8-1
5. Weekly Maintenance
DE1: DAPHNE EPONEX GREASE No. 1
Table 5A5
Maintenance Spots
Description
Grease
Cleaning
Check
Tools,
Name
DWG
Nozzles,
No. etc.
P.C.B. Chuck Upper Surface of 5A9 Cleaning - Vacuum
Section Backup Table and Cleaner
Pin Hole Section
P.E.C. P.C.B. Stopper 5A10 Cleaning DE1 Oiled Rag
Recognition P.C.G. Warpage 5A10 Cleaning Rag
Section Top Holder
(Outer Circumfe-
rence of Roller)
Air Source Drain 5A11 Cleaning Container,
etc.
L Conveyor Interlock
5A11-1
Cleaning - Vacuum
Section Cleaner
R Conveyor Interlock
5A11-2
Cleaning - Vacuum
Section Cleaner
Blower Filter
5A11-3
Cleaning - Air and
Vacuum
Cleaner

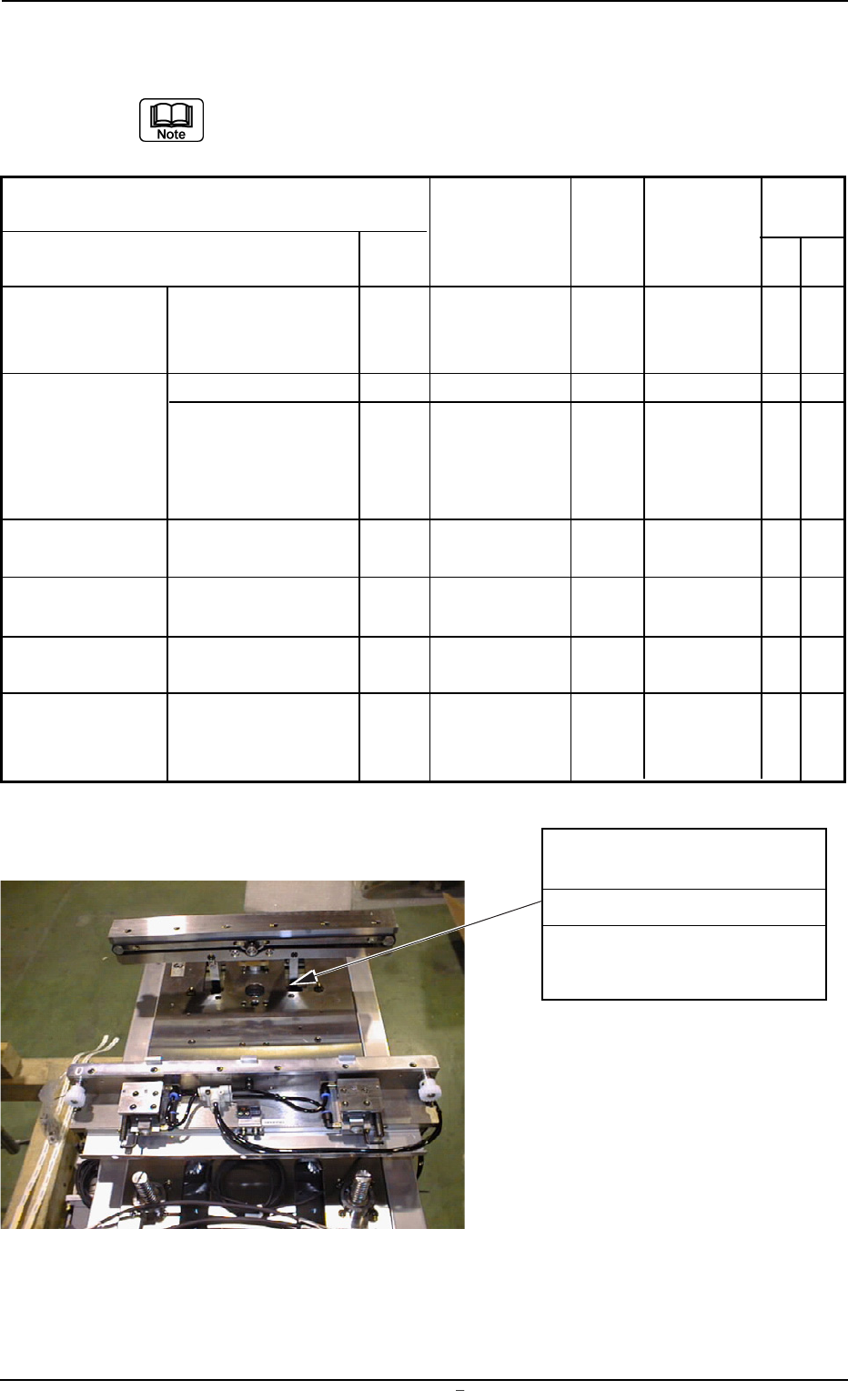

Fig. 5A9 P.C.B. Chuck Section
0106-003 Chapter 3 1 11 AFU01EINP
Upper Surface of Backup
Table and Pin Hole Section
Remove solder paste and
dust with a vacuum cleaner.
Cleaning
5. Weekly Maintenance

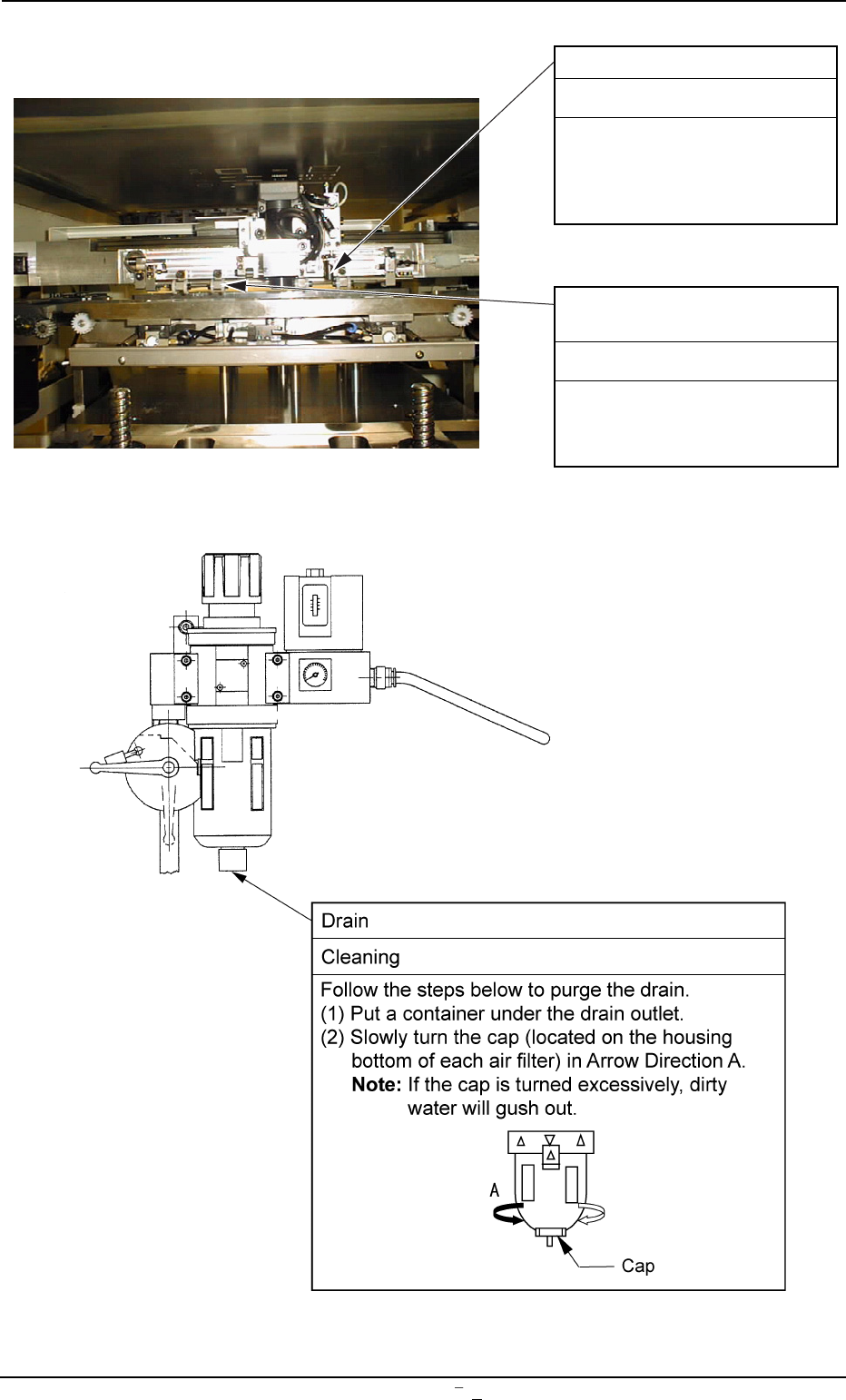

Fig. 5A10 P.E.C. Recognition Section
Fig. 5A11 Air Source
0009-002 Chapter 3 1 12 AFU01EINP
P.C.B. Stopper
Cleaning
P.C.B. Warpage Top Holder
(Outer Circumference of Roller)
Remove dirt on the outer
circumference of the roller with
a soft cloth, etc.
Cleaning
Clean the stopper with an
oiled rag.
Note: Remove waste thread
if any.
5. Weekly Maintenance
