2.6 "Scr Recog" T ab • Sheet Layout When you push "Scr Recog" tab in the "Pattern Program" edit win- dow , the following tab sheet appears. Fig. 3B90 "Scr Recog" T ab Sheet • Sheet…

100%1 / 387
*5 Recog. Adjust Correct
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "OFF" or
"ON" from the drop-down list.
*6 Recog. Adjust Point
Make the tenkey window appear and enter values (coordinates) in
the "X (horizontal)" and "Y (vertical)" text boxes.

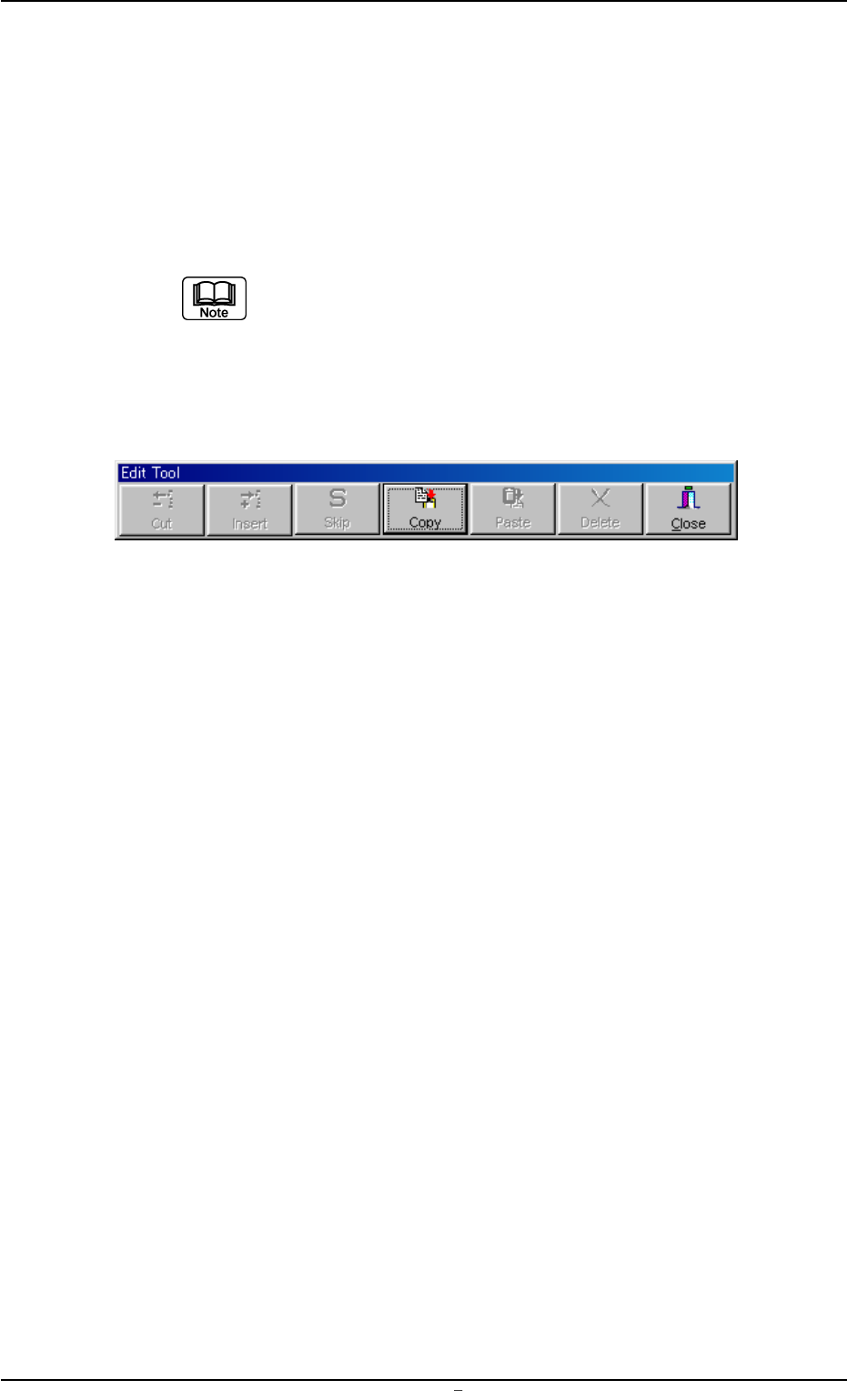

When the [Tool] button on the toolbar is pressed, the “Edit
Tool” bar appears.
When the [Copy] button on the “Edit Tool” bar is pressed,
the P.C.B. recognition coordinate data can be transferred
to the screen recognition coordinate data.
Fig. 3B89-1 “Edit Tool” Bar
2.5 “PEC Recog” Tab
0106-002 Chapter 1 2 41 AFU01EDTP

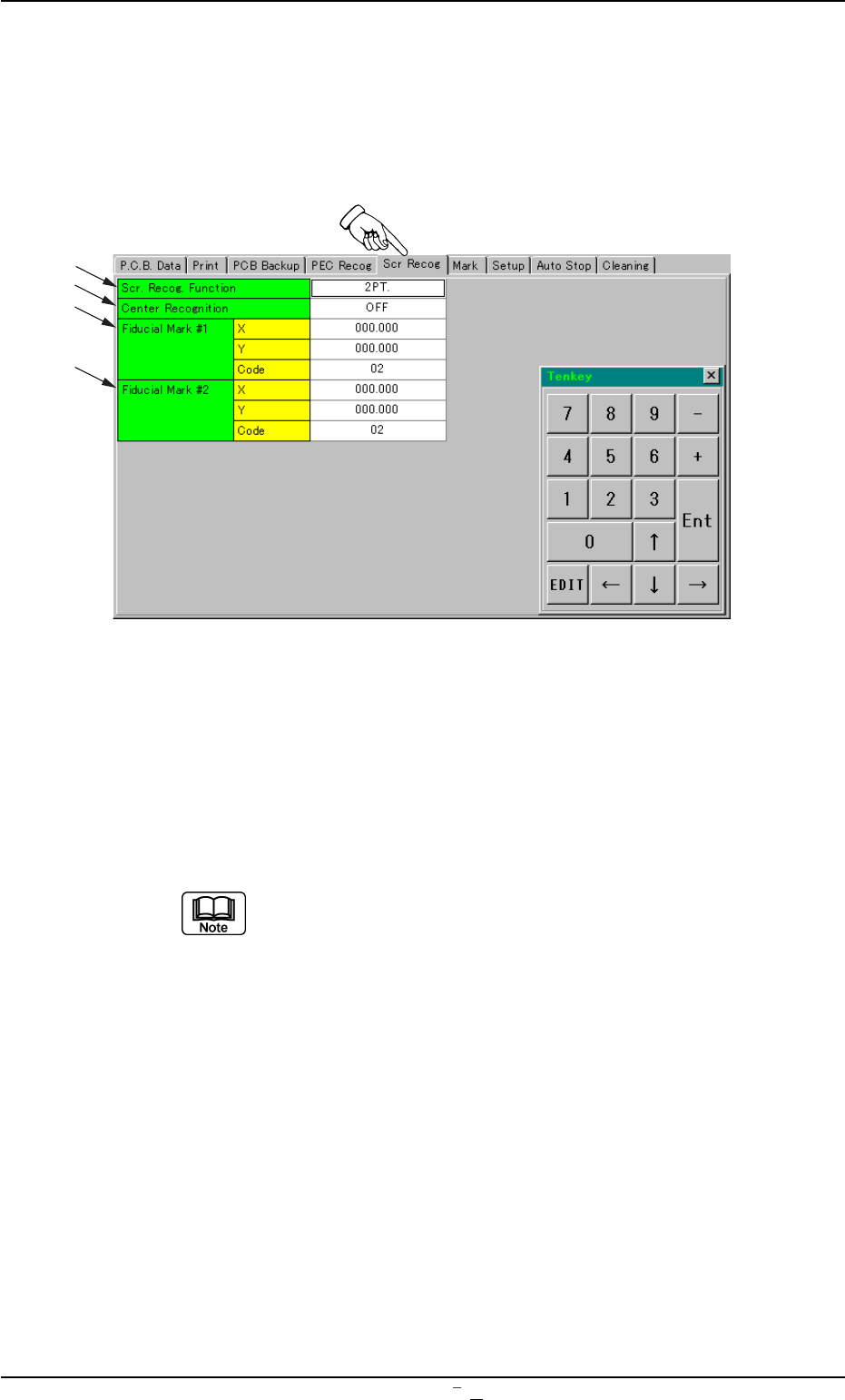

2.6 "Scr Recog" Tab
• Sheet Layout
When you push "Scr Recog" tab in the "Pattern Program" edit win-
dow, the following tab sheet appears.
Fig. 3B90 "Scr Recog" Tab Sheet
• Sheet Composition
*1 Scr. Recog. Function
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select “2PT.”
from the drop-down list.
The drop-down list has rows of options - "OFF", "1PT.",
"2PT.", and "3PT.". However, be sure to select only "2PT.".
*2 Center Recognition
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "OFF"
or"ON" from the drop-down list.
*3 Fiducial Mark #1
Make the tenkey window appear and enter values in the "X (hori-
zontal)", "Y (vertical)", and "Code" text boxes.
*4 Fiducial Mark #2
Make the tenkey window appear and enter values in the "X (hori-
zontal)", "Y (vertical)", and "Code" text boxes.
2.6 “Scr Recog” Tab
0106-002 Chapter 1 2 42 AFU01EDTP
*1
*2
*3
*4
2.6 “Scr Recog” Tab
0106-001 Chapter 1 2 42-1 AFU01EDTP

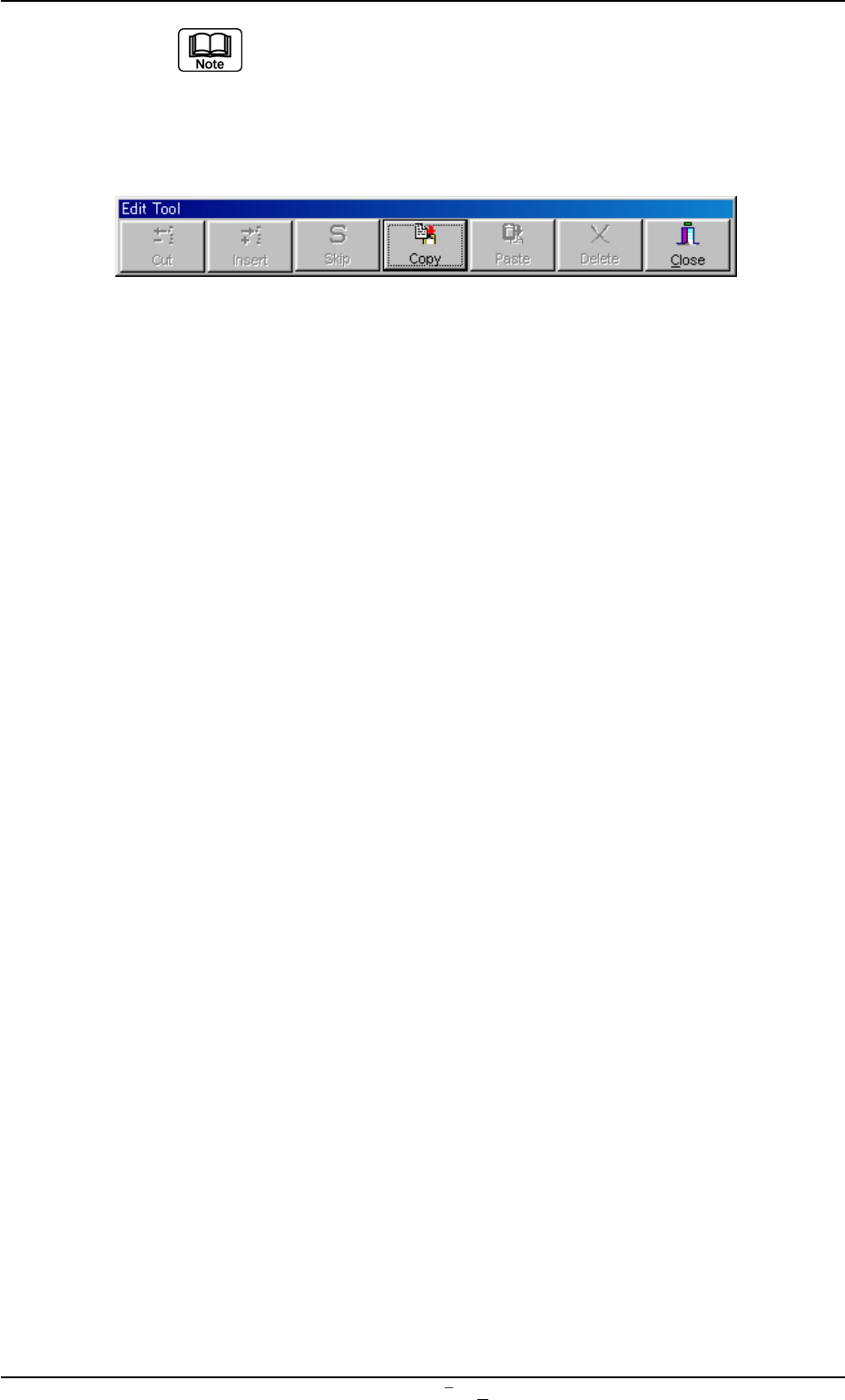

When the [Tool] button on the toolbar is pressed, the “Edit
Tool” bar appears.
When the [Copy] button on the “Edit Tool” bar is pressed,
the P.C.B. recognition coordinate data can be transferred
to the screen recognition coordinate data.
Fig. 3B90-1“Edit Tool” Bar
