1.1 "MAC. ERR." Window

• Window Layout

When an error is detected, the following "MAC. ERR." window opens.

Fig. 4A2 Example of "MAC. ERR." Window

• Window Composition

*1 DATE

Displayed are the date and time of error occurrence.

*2 ITEM

Displayed is an error item.

*3 CONTENT

Displayed are the contents of an error.

*4 ID

Displayed is a number that identifies an error.

When an error has occurred, use this ID as an index and refer to

"2. Troubleshooting after Error Display" (Section 2) for details.

1.1 "MAC. ERR." Window

*5 [RESET] Button

Pressing this button cancels an alarm (sound) and closes the "ER-

ROR" window.

*6 [BUZZER RESET] Button

Pressing this button cancels an alarm (sound) only.

• Reset Procedure from "ERROR" Window

(1) Take notes of the descriptions under "ID", "ITEM", and "CONTENT".

Note: When you have forgotten an error message, refer to the

list of errors in the "Machine Error Recall" window. (Opera-

tion Sequence: [RECALL MSG.] Button (Submenu) → "Ma-

chine Error Recall" Window)

(2) Press the [RESET] button to resume the original window.

(3) Use the found ID as an index and refer to "2. Troubleshooting after

Error Display" (Section 2) for details. Then, reset the machine to its

normal condition.

1.1 "MAC. ERR." Window

0009-001 Chapter 2 1 5 AFU01ETRP

1.2 "PRGM. CHECK" Window

• Window Layout

When you select "Pattern Program Data Error" in the field under

"ITEM" in the "MAC. ERR." window and press the [PRGM. CHECK]

button, the following window opens.

When an item other than "Pattern Program Data Error" is se-

lected and the [PRGM. CHECK] button is pressed, nothing ap-

pears in the display field.

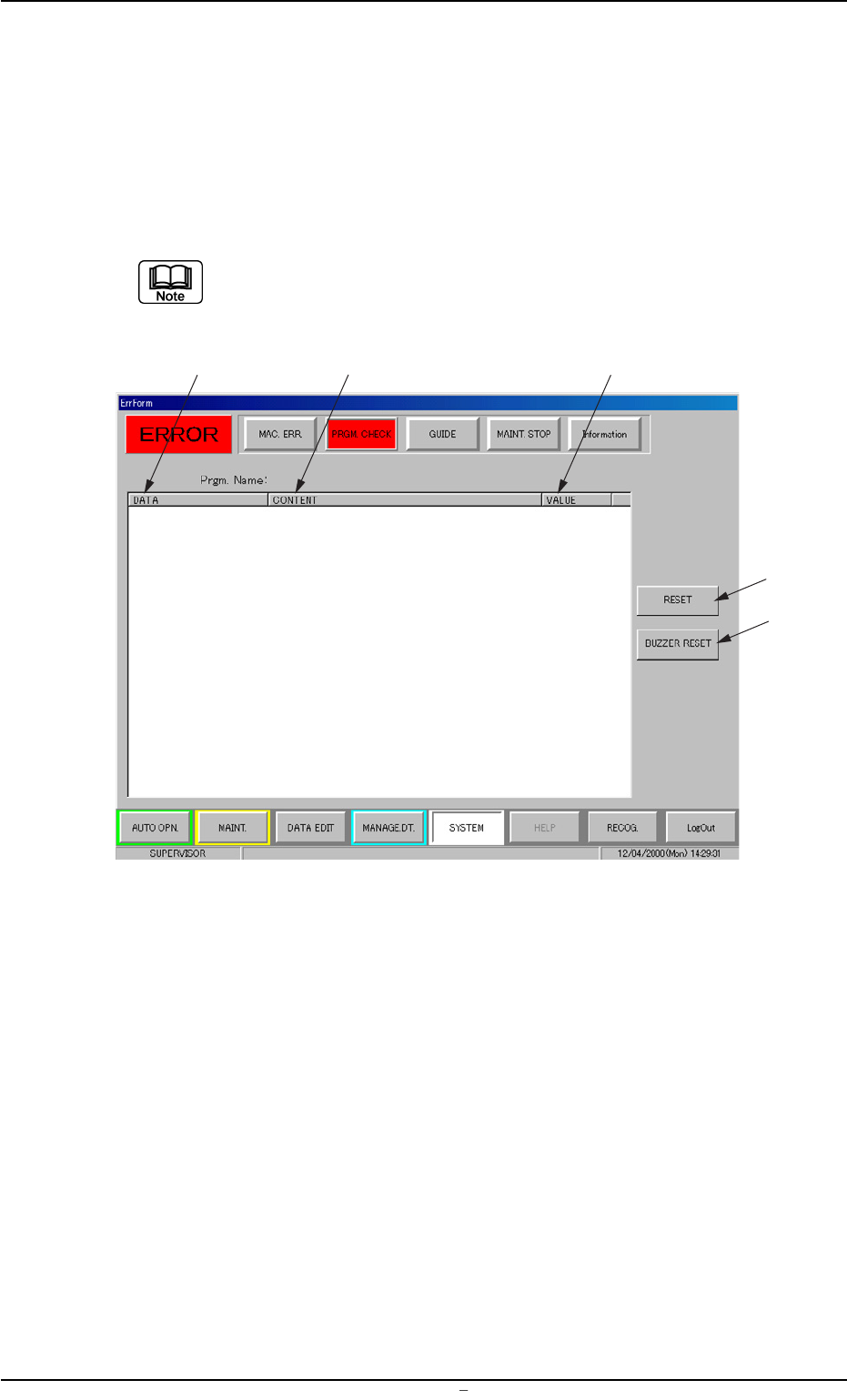

Fig. 4A3

• Window Composition

*1 DATA

Displayed is the name of abnormal data.

*2 CONTENT

Displayed are the contents of an error.

*3 VALUE

Displayed is the value of abnormal data.

*4 [RESET] Button

Pressing this button cancels an alarm (sound) and closes the "ER-

ROR" window.

*5 [BUZZER RESET] Button

Pressing this button cancels an alarm (sound) only.

1.2 "PRGM. CHECK" Window
