2.7 "Mark" Tab
• Sheet Layout
When you push "Mark" tab in the "Pattern Program" edit window, the
following tab sheet appears.

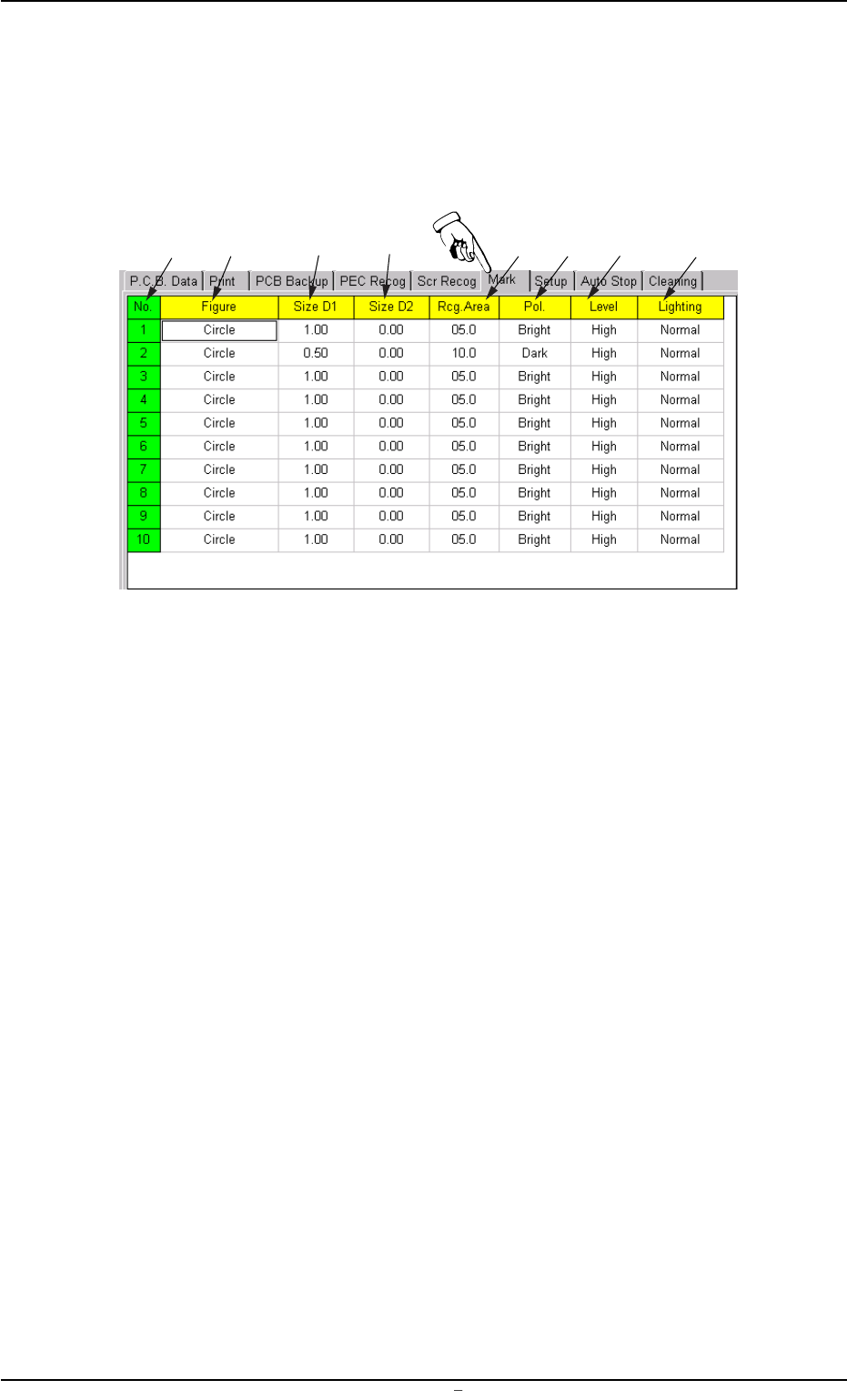

Fig. 3B91 "Mark" Tab Sheet
• Sheet Composition
*1 Code
Mark codes are displayed.
*2 Figure
Push a text box twice. The text box changes to a combo box. Push
the down arrow to open the drop-down list. Select a proper figure
(shape) of the fiducial mark from the drop-down list.
*3 Size D1
Make the tenkey window appear and enter a value in each text
box.
*4 Size D2
Make the tenkey window appear and enter a value in each text
box.
*5 Rcg. Area
Make the tenkey window appear and enter a value in each text
box.
2.7 “Mark” Tab
*4
*5
*6 *7
*8
*1
*2
*3
0106-002 Chapter 1 2 43 AFU01EDTP
*6 Pol.
Push a text box twice. The text box changes to a combo box. Push
the down arrow to open the drop-down list. Select "Bright" or "Dark"
from the drop-down list.
*7 Level
Push a text box twice. The text box changes to a combo box. Push
the down arrow to open the drop-down list. Select "High", "Middle"
or "Low" from the drop-down list.
*8 Lighting
Only “Normal” can be selected for the standard machine (standard
specifications).
0106-002 Chapter 1 2 44 AFU01EDTP
2.7 “Mark” Tab
2.8 "Setup" Tab
• Sheet Layout
When you push "Setup" tab in the "Pattern Program" edit window,
the following tab sheet appears.
Fig. 3B92 "Setup" Tab Sheet
• Sheet Composition
*1 All Conveyor Setup
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "OFF" or
"ON" from the drop-down list.
*2 Two Camera Auto Calib.
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "’OFF" or
"ON" from the drop-down list.
*3 Screen Recog.
Push the text box twice. The text box changes to a combo box.
Push the down arrow to open the drop-down list. Select "’OFF" or
"ON" from the drop-down list.
2.8 “Setup” Tab
0004-001 Chapter 1 2 45 AFU01EDTP
*1
*2
*3
