0106-001 Chapter 1 4 18-1 AFU01EDTP Output Interval : When "Interval" is selected as "Output Mode" (described in *2), enter the operating time of the conveyor in the text box. Make the"T enkey&qu…
Auto Stop Mode: When this mode is selected, the machine auto-
matically stops running in the following case A
or B.
A. The machine stops running based on the fol-
lowing criteria.
1) There is no P.C.B. inside the machine.
2) The machine is waiting for a P.C.B. to be
transferred from the input machine and
more than 2 seconds has elapsed since
the "RUN" signal of the input machine is
turned off.
B. The machine stops running based on the
following criteria
1) There is no P.C.B. inside the machine.
2) The input machine is stopped.
Auto Line Start Mode : When this mode is selected and the out-
put machine starts the automatic opera-
tion, the main machine is interlocked and
also starts its automatic operation.
This function does not work while the screen saver func-
tion is activated.
Auto Line Stop Mode : When this mode is selected and the out-
put machine stops the automatic opera-
tion, the main machine is interlocked and
also stops its automatic operation.
*5 Timer Setting (sec)
It can be determined how many seconds are required for the input
and output conveyors to be activated to receive a P.C.B. from the
input machine and discharge a P.C.B. to the output machine.
Input Conveyor : Enter the operating time of the input conveyor
in the text box.
Approximately 2 seconds must be added to
the time required to receive a P.C.B. from the
input machine and the total time must be en-
tered.
Output Conveyor : Enter the operating time of the output con-
veyor in the text box.
Approximately 2 seconds must be added to
the time required to discharge a P.C.B. to the
output machine and the total time must be
entered.
0106-002 Chapter 1 4 18 AFU01EDTP
3.1 “Transfer Mode Set-up” Tab
0106-001 Chapter 1 4 18-1 AFU01EDTP
Output Interval : When "Interval" is selected as "Output Mode"
(described in *2), enter the operating time of
the conveyor in the text box.
Make the"Tenkey" window appear and enter the time in
the text bo
*6 Conveyor Speed Down Offset
Enter the speed at which the L and R conveyors should transfer a
P.C.B. in the text box.
Make the "Tenkey" window appear and enter the speed in
the text box.
3.1 “Transfer Mode Set-up” Tab
4. "Offset Data" Submenu
• Window Layout
When the [OFFSET DATA] button is pressed in the "SYSTEM" submenu
bar, the following window appears.

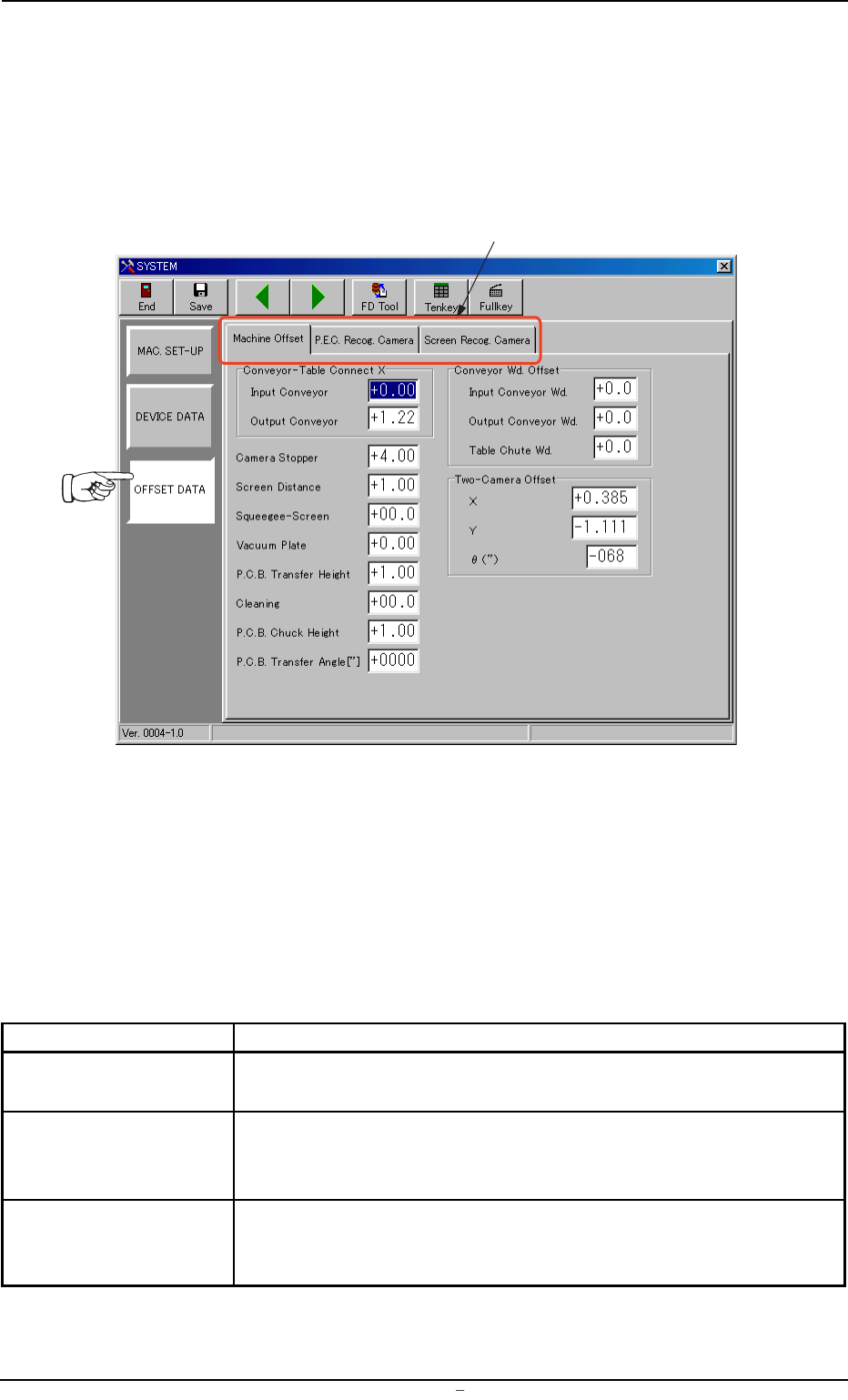

Fig. 3D12 "Offset Data" Window (Submenu)
• Window Composition
*1 Tabs
The "Offset Data" window (submenu) is provided with three tab
sheets.
Every time a tab is pressed, the corresponding tab sheet appears.
Table 3D3
Tabs Description
Machine Offset This tab sheet enables the operator to set offset values for each
section of the machine.
P.E.C. Recog. Camera This tab sheet enables the operator to set offset values and magni-
fications of the P.E.C. recognition camera and gain & level (contrast
and brightness difference) of the fiducial mark.
Screen Recog. Camera This tab sheet enables the operator to set offset values and magni-
fications of the screen recognition camera and gain & level (contrast
and brightness difference) of the fiducial mark.
*1
0004-001 Chapter 1 4 19 AFU01EDTP
4.
"
Offset Data
"
Submenu
