Fig. 5A32 Squeegee Head Section Fig. 5A33 Screen Holder Section 0009-002 Chapter 3 1 28 AFUQ01EINP 8. Half-Y early Maintenance Screen Recognition X-Axis Linear Guide Inject grease into the grease nipple with a grease gun…
0009-002 Chapter 3 1 27 AFU01EINP
8. Half-Yearly Maintenance
Inject grease into the grease
nipple with a grease gun.
Lubrication
Squeegee Head Y-Axis Linear
Guide
Apply grease with a brush or a
spatula.
Note: If a large amount of
grease is applied to the
ball screw, it may be
dispersed over a P.C.B.
and the screen. After
applying grease to the
ball screw, brush the
surface or scrape with a
spatula until a small
amount of grease
remains.
Lubrication
Squeegee Head Y-Axis Ball
Screw
Guide Bushing for Squeegee
Up/Down Movement
Apply grease with a brush or
a spatula.
Lubrication
Fig. 5A30 Squeegee Head Section
Fig. 5A31 Squeegee Head Section
Fig. 5A32 Squeegee Head Section
Fig. 5A33 Screen Holder Section
0009-002 Chapter 3 1 28 AFUQ01EINP
8. Half-Yearly Maintenance
Screen Recognition X-Axis
Linear Guide
Inject grease into the grease
nipple with a grease gun.
Lubrication
Screen Recognition X-Axis
Ball Screw
Apply grease with a brush or a
spatula.
Lubrication
Apply grease with a brush.
Note: If a large amount of
grease is applied to the
ball screw, it may be
dispersed over a P.C.B.
and the screen. After
applying grease to the
ball screw, brush the
surface until a small
amount of grease
remains.
Lubrication
Y-Axis Ball Screw
Fig. 5A34 Screen Holder Section
Fig. 5A35 L Conveyor Section

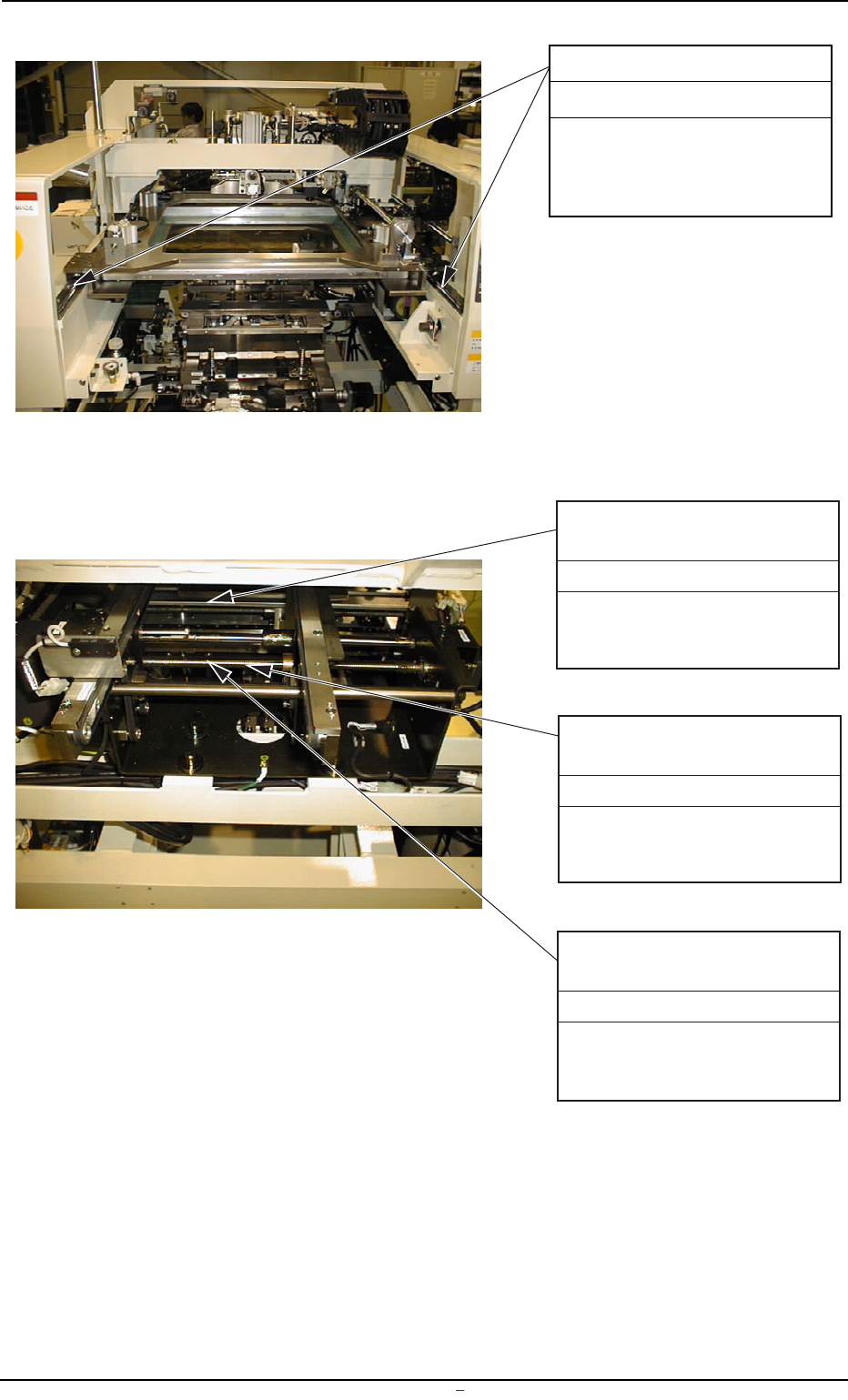

0009-002 Chapter 3 1 29 AFU01EINP
8. Half-Yearly Maintenance
Y-Axis Linear Guide
Apply grease with a brush.
Lubrication
Guide Bushing for Width
Adjustment
Lubrication
Apply grease with a brush or
a spatula.
Ball Screw for Width
Adjustment
Lubrication
Apply grease with a brush or
a spatula.
Spline Shaft for Width
Adjustment
Lubrication
Apply grease with a brush or
a spatula.
