12. Replacement of Cleaning Paper

(How to change the cleaning paper width)

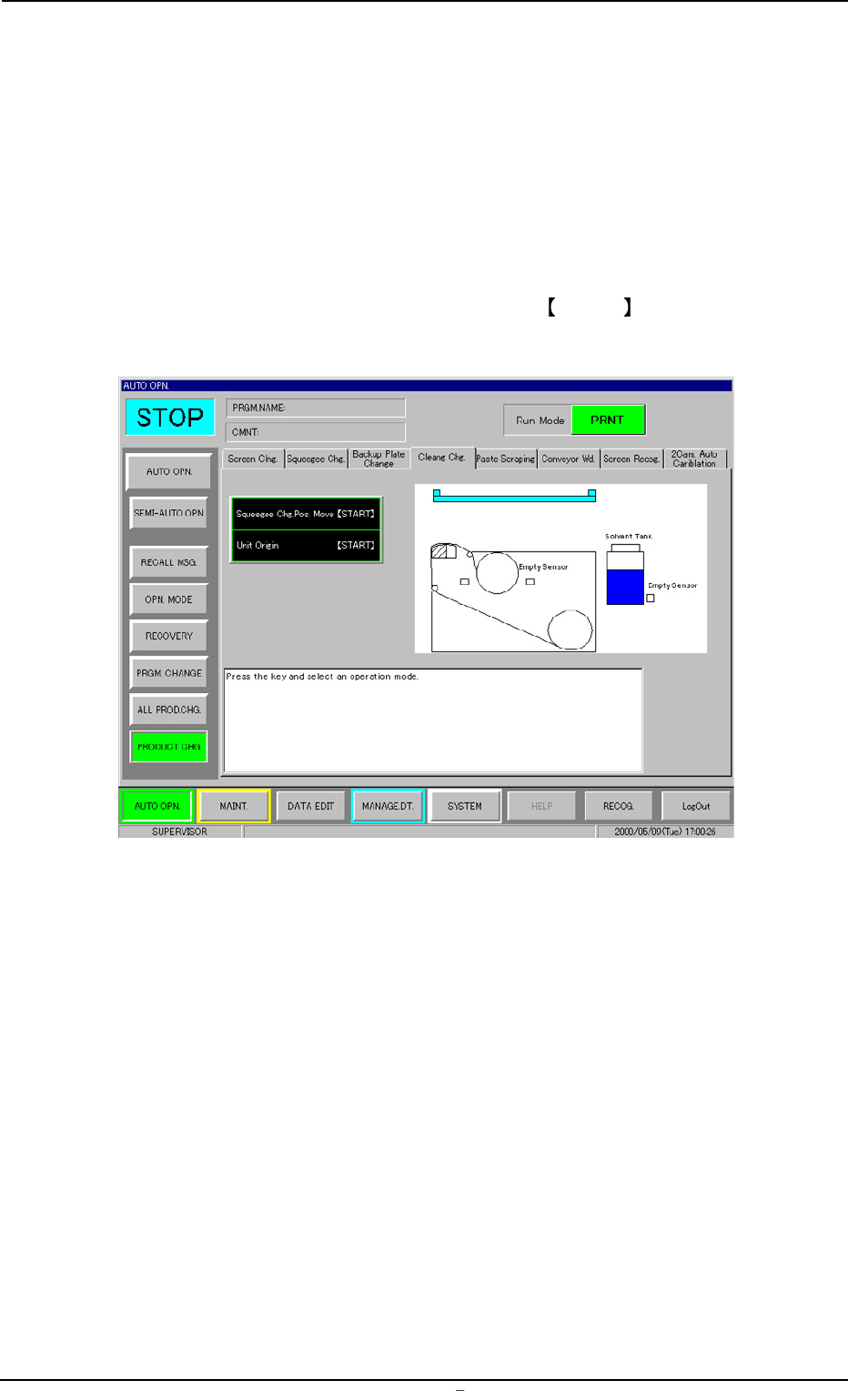

When the "PRODUCT CHG." button is pressed on the "AUTO OPN."

submenu bar, the following tab sheet appears.

Operation Procedure

(1) Press the "Cleang Chg." tab.

(2) Press the [Squeegee Chg. Pos. Move

START ] button. The

background color turns blue.

Fig. 5A40

12. Replacement of Cleaning Paper (How to change the cleaning paper width)

0009-002 Chapter 3 1 34 AFU01EINP

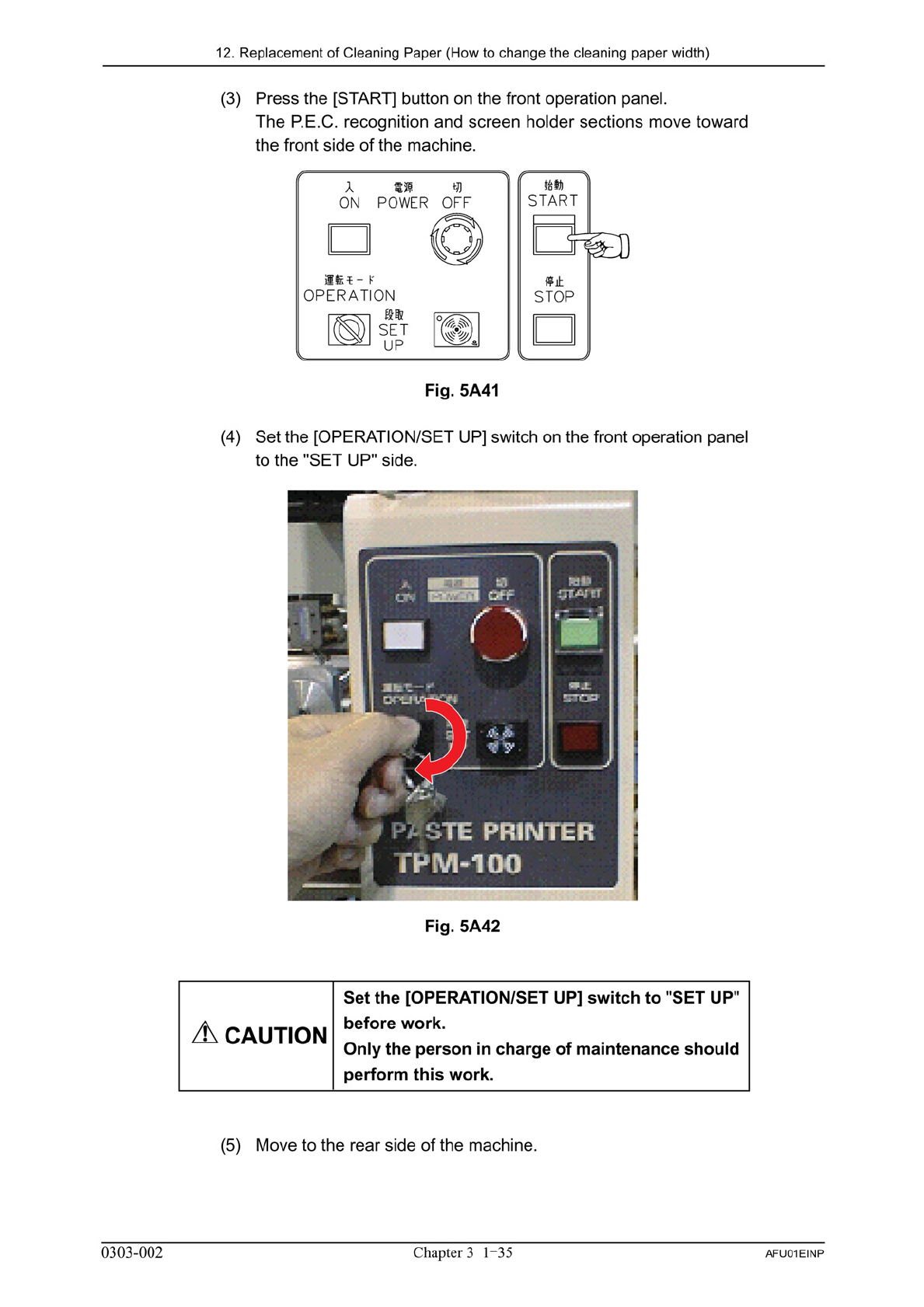

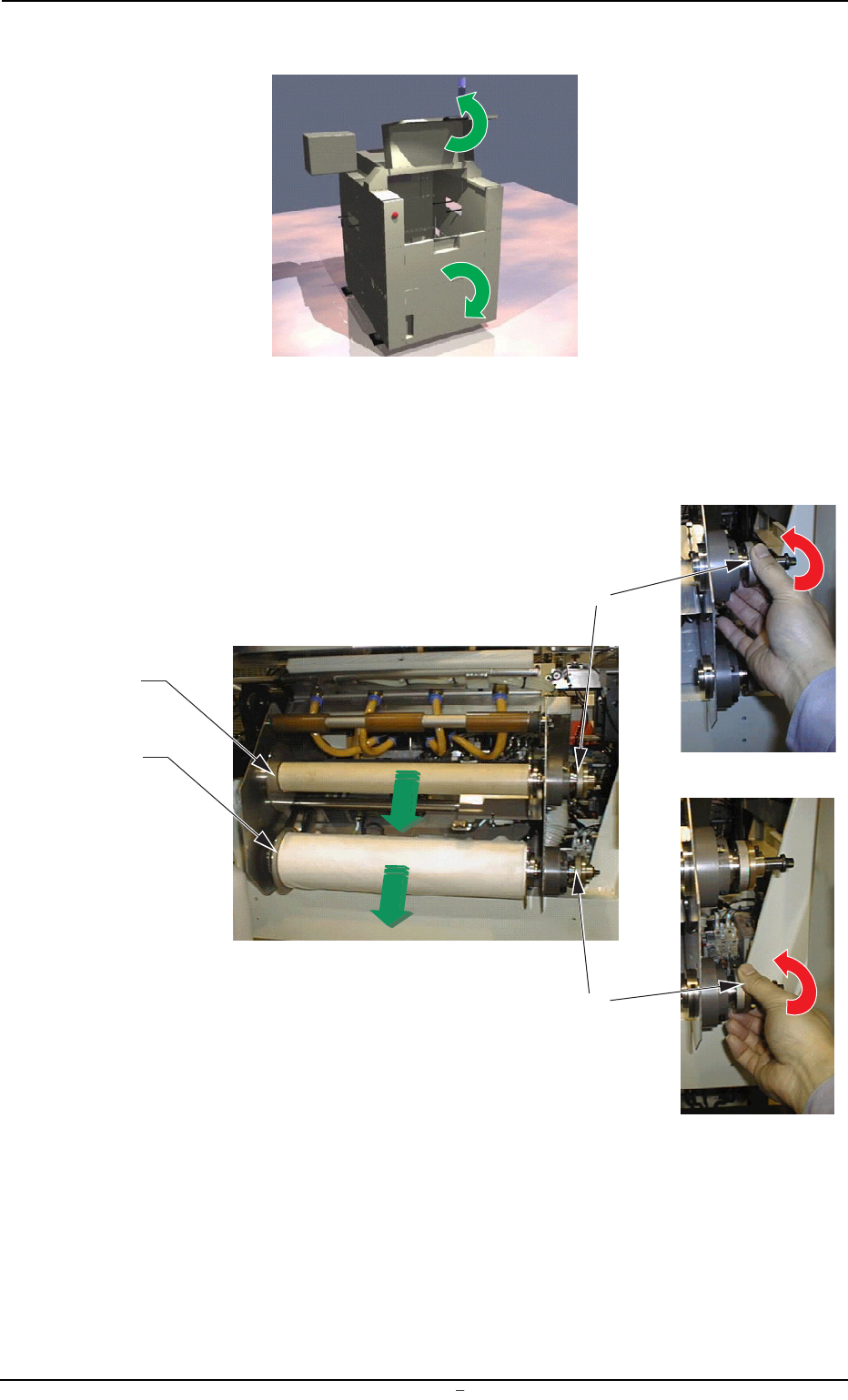

(6) Open the two safety doors on the rear side of the machine.

Fig. 5A43

(7) Turn the knobs of both take-up and supply rollers clockwise and

pull out each roller forward to detach from the cleaning unit.

Fig. 5A44

12. Replacement of Cleaning Paper (How to change the cleaning paper width)

0009-002 Chapter 3 1 36 AFU01EINP

Supply Roller

Take-Up Roller

Knob
