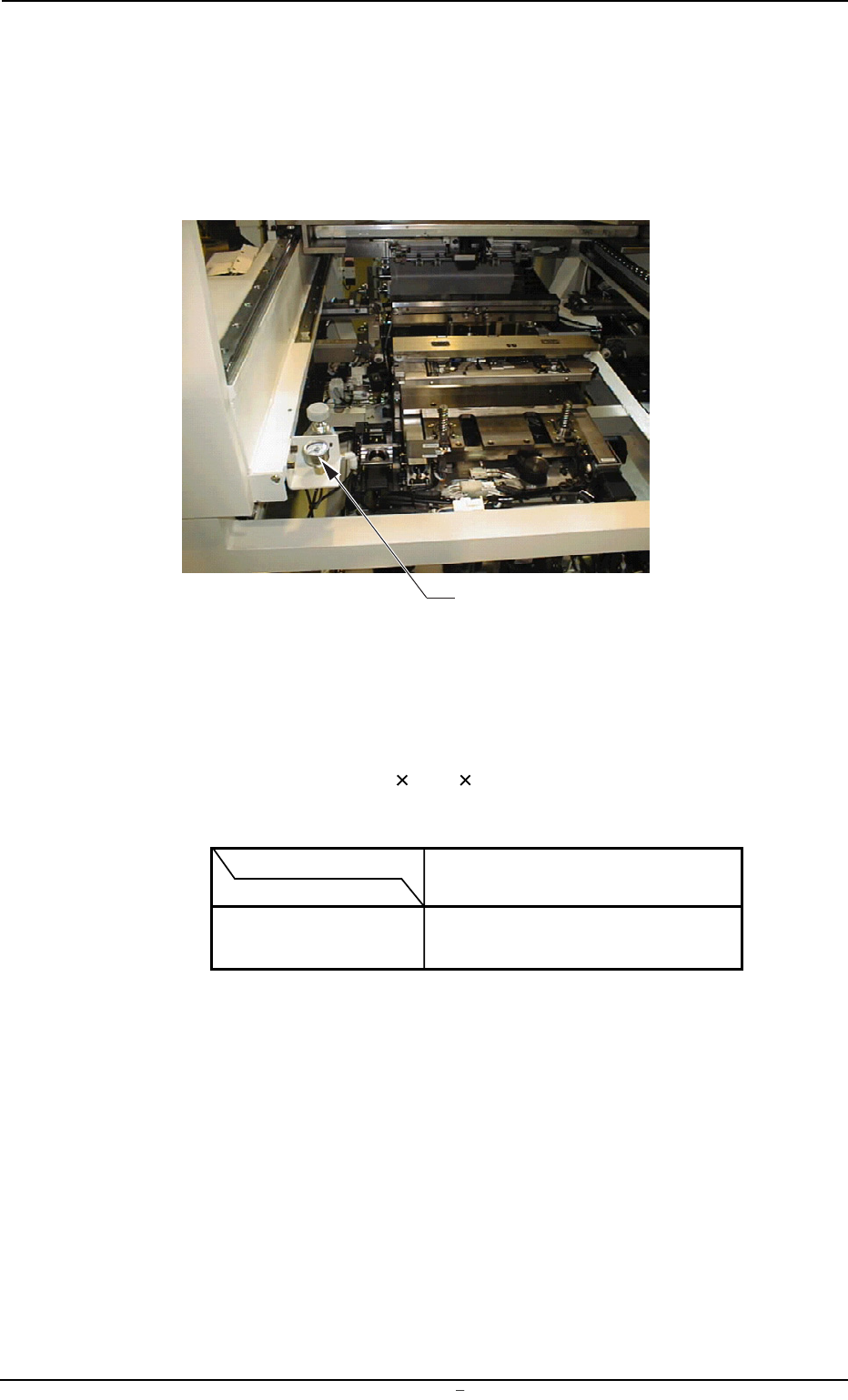

10. Adjustment of P.C.B. Horizontal Clamping
When a thin P.C.B. is used and the horizontal clamping force is strong,
it may be warped. To avoid this, adjust the force with the pressure re-
ducing valve which is located at the front left (operator side) of the L
conveyor.
Fig. 5A38
• Refer to the following table for the relation between the P.C.B. thick-
ness and air pressure.
The values indicate the pressures to be applied, assuming that a
P.C.B. (Dimensions: "150
100 1.5 (t)") is used without a P.C.B.
stopper.
P.C.B. Thickness
Air Pressure 0.5 1.0 1.5 2.0 (mm)
MPa 0.12 0.2 0.3 0.3
(kgf/cm
2
) (1.2) (2.0) (3.0) (3.0)
0009-002 Chapter 3 1 32 AFU01EINP
10. Adjustment of P.C.B. Horizontal Clamping
Pressure Reducing Valve

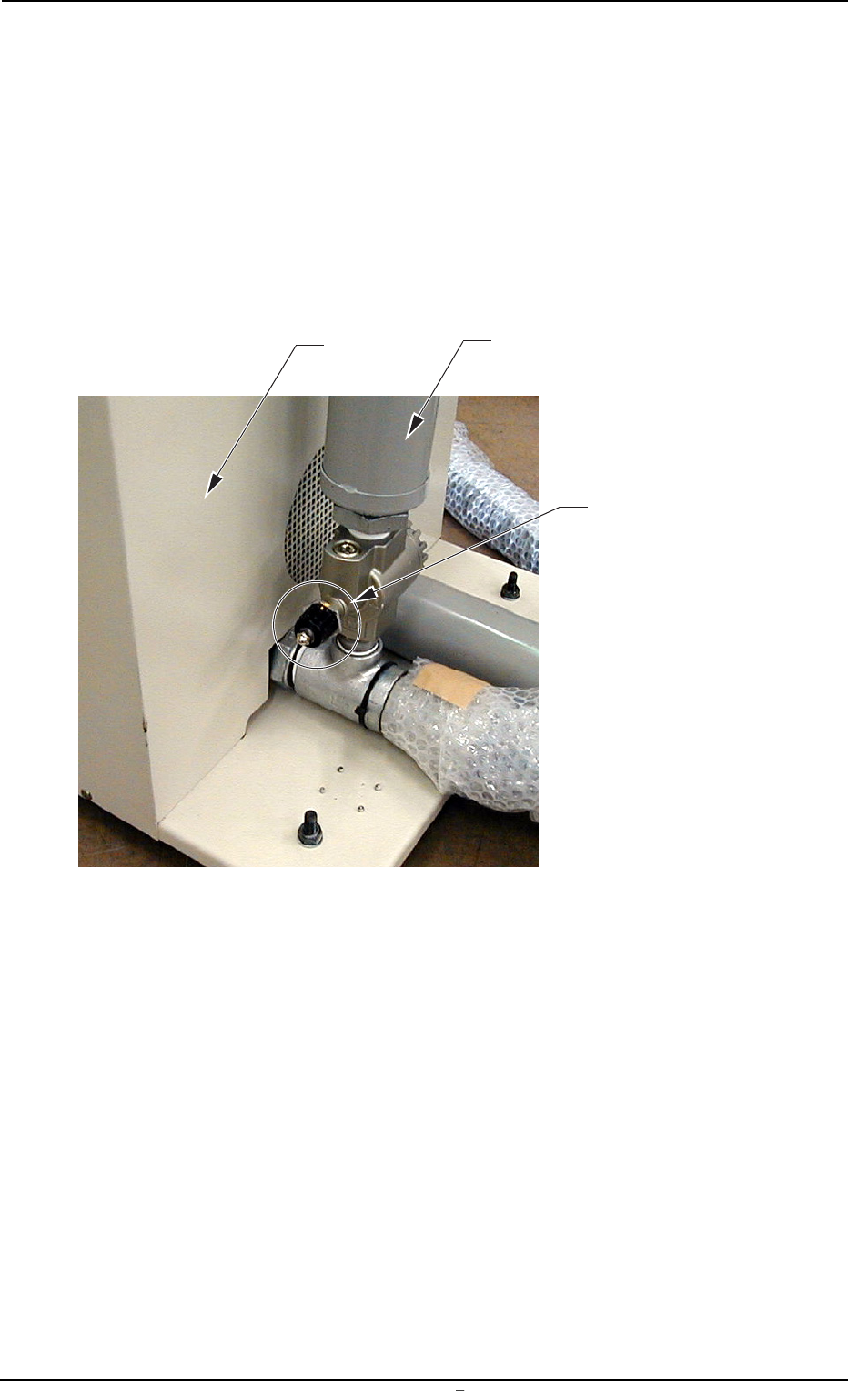

11. Vacuum Source
• The blower-type vacuum source is provided and used for the vacuum-
type P.C.B. clamping unit and the automatic cleaning (suction type).
(1) Adjustment of Vacuum Suction Force
• The vacuum force can be adjusted with the vacuum control valve.
When the valve is turned clockwise, the suction force weakens.
Turning it counterclockwise strengthens the suction force.
Fig. 5A39
• The vacuum control valve is factory-adjusted to the condition
that it is opened (turned 9 times counterclockwise) from the "Max."
position (fully-closed position).
11. Vacuum Source
0106-003 Chapter 3 1 33 AFU01EINP
Blower Unit
Muffler
Vacuum Control Valve
12. Replacement of Cleaning Paper
(How to change the cleaning paper width)
When the "PRODUCT CHG." button is pressed on the "AUTO OPN."
submenu bar, the following tab sheet appears.
Operation Procedure
(1) Press the "Cleang Chg." tab.
(2) Press the [Squeegee Chg. Pos. Move
START ] button. The
background color turns blue.
Fig. 5A40
12. Replacement of Cleaning Paper (How to change the cleaning paper width)
0009-002 Chapter 3 1 34 AFU01EINP
