4. Daily Maintenance DE1: DAPHNE EPONEX GREASE No. 1 T able 5A4 Maintenance Spots Description Grease Cleaning Check T ools, Name DWG Nozzles, No. etc. P .C.B. Chuck Upper Surface of 5A5 Cleaning - V acuum Section P .C.B.…

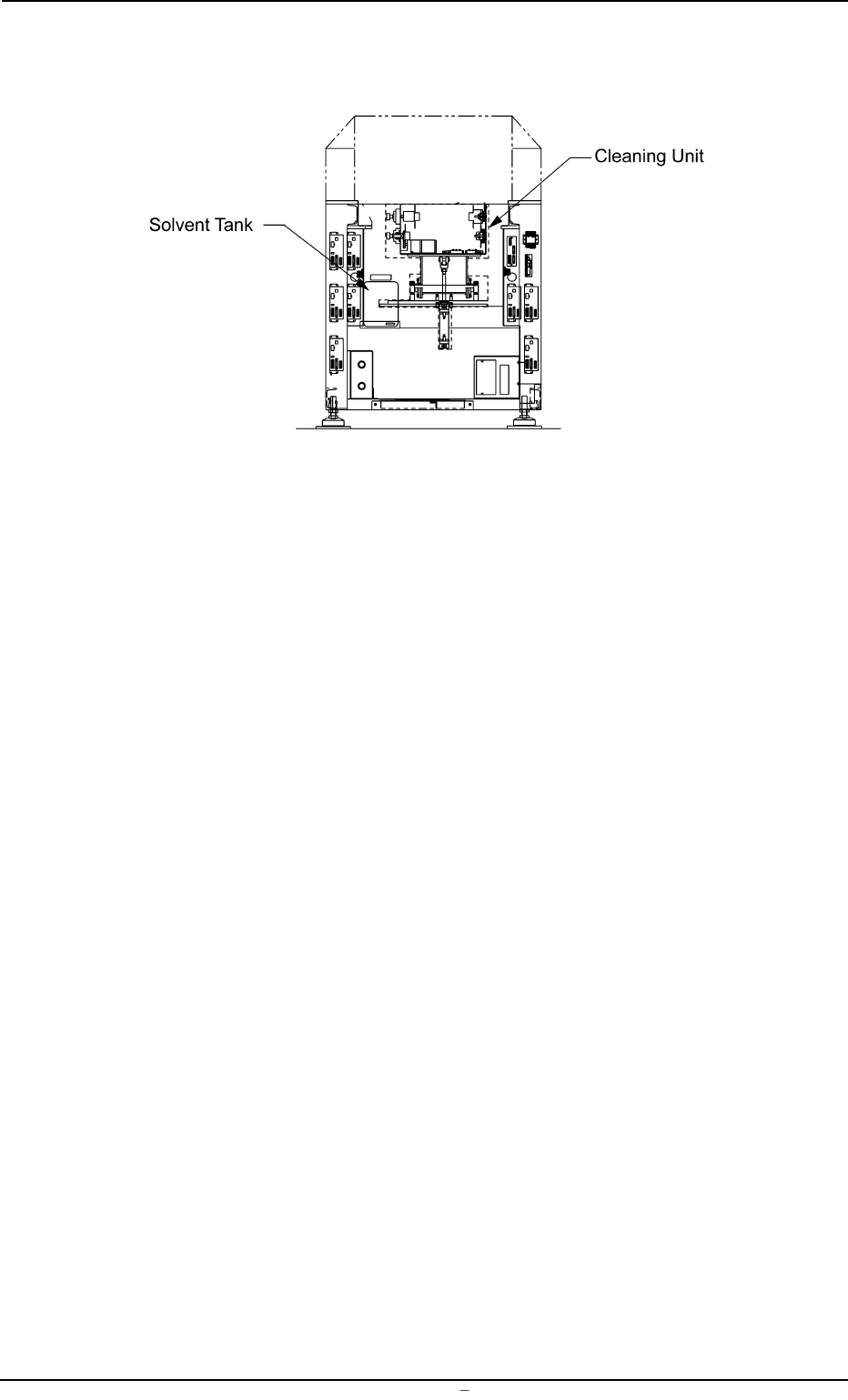

Fig. 5A4
0009-002 Chapter 3 1 7 AFU01EINP
3. Maintenance Spots (Overall)
4. Daily Maintenance
DE1: DAPHNE EPONEX GREASE No. 1
Table 5A4
Maintenance Spots
Description
Grease
Cleaning
Check
Tools,
Name
DWG
Nozzles,
No. etc.
P.C.B. Chuck Upper Surface of 5A5 Cleaning - Vacuum
Section P.C.B. Transfer Belt Cleaner
P.C.B. Positioning 5A5 Cleaning DE1 Vacuum
Side and Upper Cleaner
Surface
Squeegee Head Squeegee 5A6 Cleaning - Rag and
Section
Industrial
Alcohol
(solvent)
Recognition Lighting
5A6-1
Cleaning - Vacuum
Glass Surface Cleaner
Camera (Lens)
5A6-1
Cleaning - Vacuum
Cleaner
Upper Surface of 5A7 Cleaning - Rag
Screen Holder
Screen Printing 5A7 Cleaning -
Rag,
Pattern
Industrial
Alcohol
(solvent), and
Ultrasonic
Cleaning
Lower Surface of 5A7 Cleaning -
Industrial
Screen Alcohol
(solvent)
and Rag
L/R Conveyors Upper Surface of 5A8 Cleaning - Vacuum
Sections P.C.B. Transfer Belt Cleaner
P.E.C. Recognition
Glass Surface of
5A8-1
Cleaning - Vacuum
Section Recognition Lighting Cleaner
Camera (Lens)
5A8-1
Cleaning - Vacuum
Cleaner
• When you use industrial alcohol (solvent), be sure
to wear protective equipment (gloves and apron,
etc.) to protect against spills on exposed skin.
• Be careful not to inhale industrial alcohol (solvent).
CAUTION
0106-003 Chapter 3 1 8 AFU01EINP
4. Daily Maintenance
Fig. 5A5 P.C.B. Chuck Section
Fig. 5A6 Squeegee Head Section
Remove solder paste and
dust with a vacuum cleaner.
P.C.B. Positioning Side and
Upper Surface
Cleaning
Remove solder paste and
dust with a vacuum cleaner.
Upper Surface of P.C.B.
Transfer Belt
Cleaning
Squeegees
Cleaning
Clean the squeegees with a
rag soaked in industrial
alcohol (solvent) or with
industrial alcohol (solvent).
Remove deteriorated solder
paste.
