0106-002 Chapter 3 3 53 AFU01EMTP 3.5 Location of Sensors in Squeegee Section 3.5 Location of Sensors in Squeegee Section Fig. 5C9

0106-002 Chapter 3 3 52 AFU01EMTP

3.4 Location of Sensors for Screen Holding

Fig. 5C8

Table 5C5

Symbols Name

BPH047 Screen Y-Axis Interlock

BPH291 Screen Y-Axis Origin

BPH294 Screen Y-Axis Rotational Origin

MPM029 Screen Y-Axis Pulse Motor

0106-002 Chapter 3 3 53 AFU01EMTP

3.5 Location of Sensors in Squeegee Section

Fig. 5C9

0106-002 Chapter 3 3 54 AFU01EDTP

Fig. 5C10

Table 5C6

Symbols Name

B001 Front Load Cell

B002 Rear Load Cell

BPS060 Front Squeegee U/D Upper Limit

BPS061 Front Squeegee U/D Middle

BPS062 Rear Squeegee U/D Upper Limit

BPS063 Rear Squeegee U/D Middle

BPH064 Paste Height Detection (Option)

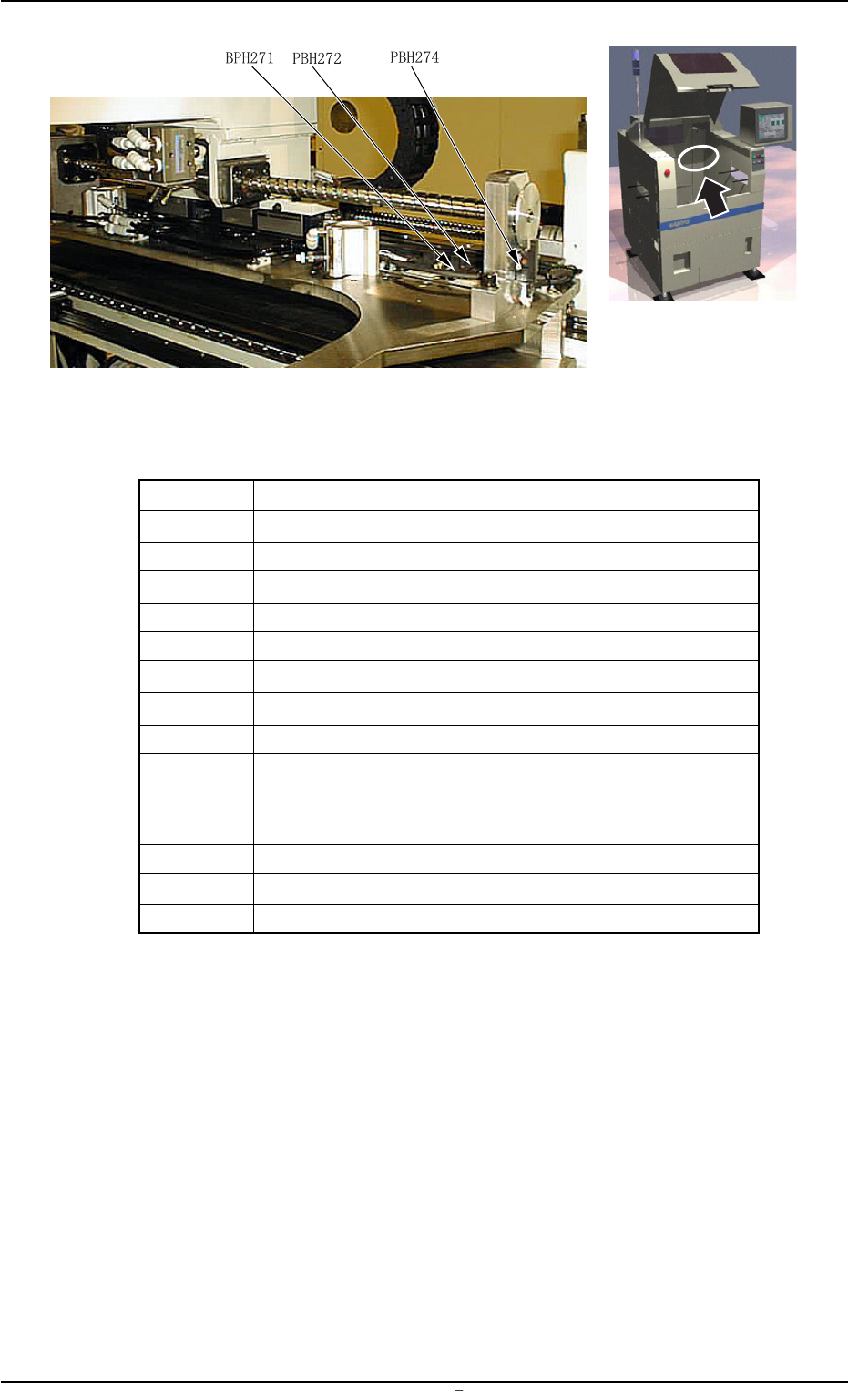

BPH271 Squeegee Driving Axis Origin

BPH272 Squeegee Driving Axis Limit

BPH274 Squeegee Driving Axis Rotational Origin

MPM027 Squeegee Driving Axis Pulse Motor

YSV068 Front Squeegee U/D Solenoid Valve

YSV069 Rear Squeegee U/D Solenoid Valve

YSV06A Squeegee Middle Stopper (Outward)

3.5 Location of Sensors in Squeegee Section
