V acuum Filter Cleaning Detach the vacuum filter and blow off dust with air or remove dust with a vacuum cleaner . Replace the filter with a new one when it is stained exces- sively . Refer to "9.2 Replacement Proce…

100%1 / 387

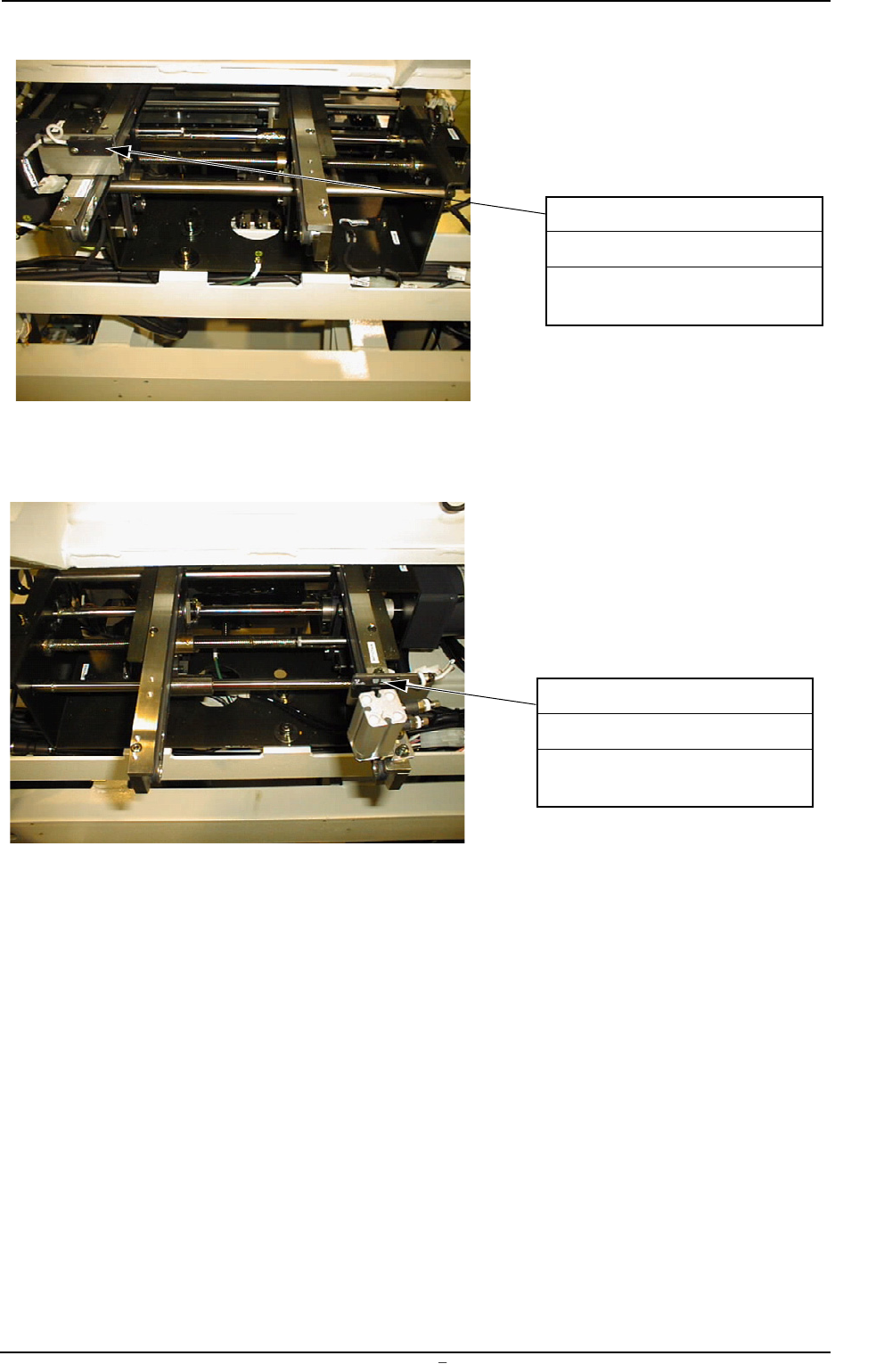

Fig. 5A11-1 L Conveyor Section
Fig. 5A11-2 R Conveyor Section
0009-001 Chapter 3 1 12-1 AFU01EINP
Interlock Sensor
Cleaning
Remove dust with a vacuum
cleaner.
Interlock Sensor
Cleaning
Remove dust with a vacuum
cleaner.
5. Weekly Maintenance
Vacuum Filter
Cleaning
Detach the vacuum filter and
blow off dust with air or
remove dust with a vacuum
cleaner.
Replace the filter with a new
one when it is stained exces-
sively.
Refer to "9.2 Replacement
Procedure of Blower Filter"
for details.
0009-001 Chapter 3 1 12-2 AFU01EINP
5. Weekly Maintenance

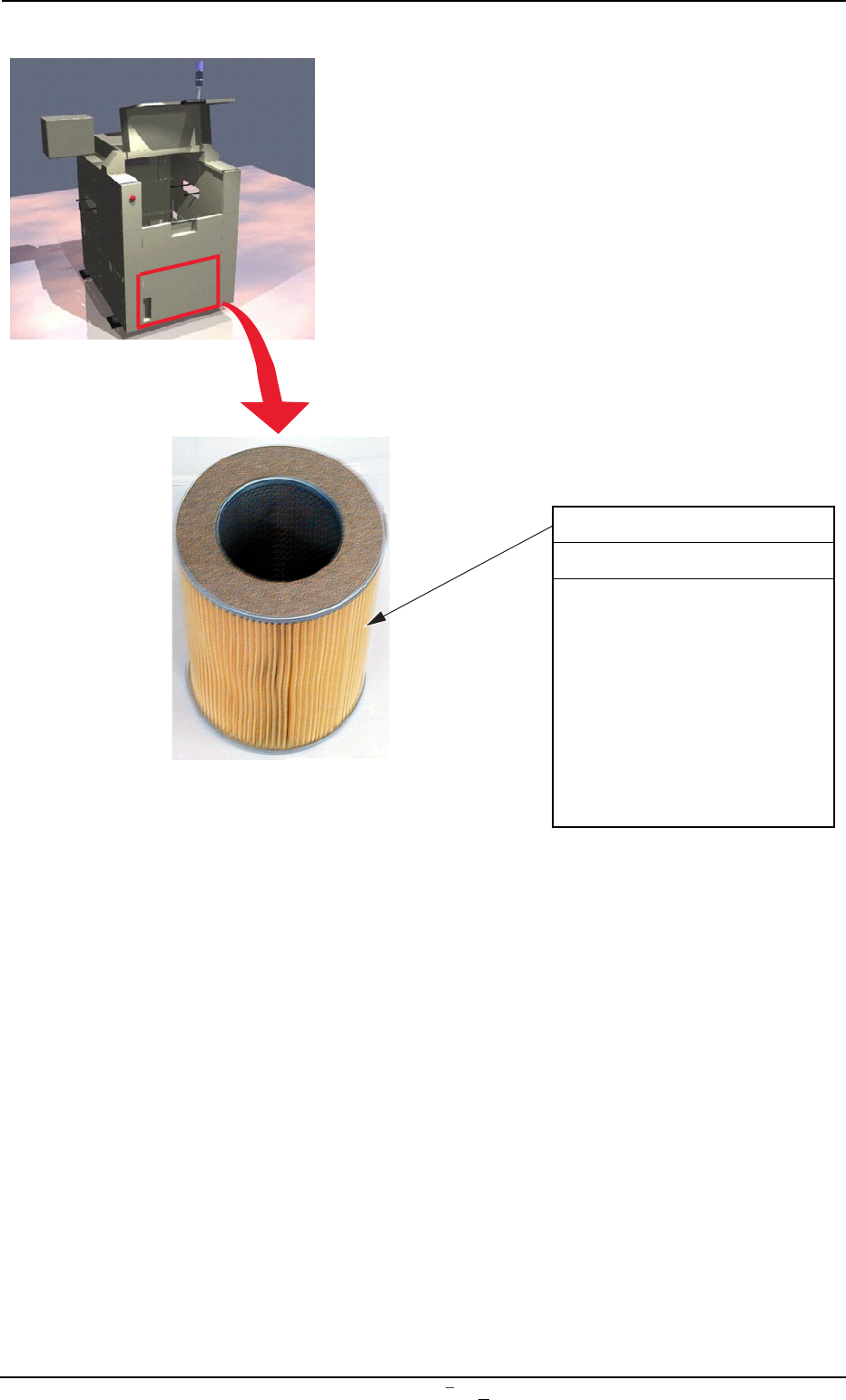

Fig. 5A11-3 Blower
6. Monthly Maintenance
DE1: DAPHNE EPONEX GREASE No. 1
Table 5A6
Maintenance Spots
Description
Grease
Cleaning
Check
Tools,
Name
DWG
Nozzles,
No.
etc.
Table Section X-Axis Linear 5A12 Cleaning DE1 Oiled Rag
Guide
Z-Axis Guide 5A12 Cleaning DE1 Oiled Rag
Bushing
-Axis Linear 5A13 Cleaning DE1 Oiled Rag
Guide
P.C.B. Chuck Linear Guide for 5A14 Cleaning - Rag
Section Chute Width
Adjustment
Backup Table 5A14 Cleaning - Oiled Rag
Z-Axis Guide
Bushing
Linear Guide 5A14 Cleaning - Oiled Rag
for P.C.B. Clamping
-1
P.E.C. X-Axis Linear 5A15 Cleaning - Oiled Rag
Recognition Guide
Section Y-Axis Linear Guide 5A16 Cleaning DE1 Oiled Rag
Squeegee Y-Axis Linear Guide 5A17 Cleaning DE1
Head Section X-Axis Linear Guide 5A18 Cleaning DE1 Oiled Rag
Guide Bushing for 5A19 Cleaning DE1 Oiled Rag
Squeegee Up/Down
Movement
Screen Holder Screen Y-Axis 5A20 Cleaning DE1 Oiled Rag
Section Linear Guide
L Conveyor Spline Shaft for 5A21 Cleaning DE1 Oiled Rag
Section Width Adjustment
Ball Screw for 5A21 Cleaning DE1 Oiled Rag
Width Adjustment
Guide Bushing for 5A21 Cleaning DE1 Oiled Rag
Width Adjustment
R Conveyor Spline Shaft for 5A22 Cleaning DE1 Oiled Rag
Section Width Adjustment
Ball Screw for 5A22 Cleaning DE1 Oiled Rag
Width Adjustment
Guide Bushing for 5A22 Cleaning DE1 Oiled Rag
Width Adjustment
6. Monthly Maintenance
0106-003 Chapter 3 1 13 AFU01EINP
