CACCIA Manual 1 Caccia Student Guide Issue 04/2007 EN 11 1.1.4 Change Properties - Advanced Subs ystem Configuration → Open the Advanced Subsyst em Configuration dialog box with th e button: 1 Fig. 1 - 6 Advanced subsys …

1 Caccia Student Guide CACCIA Manual

Issue 04/2007 EN

Machines types:

Placement head types:

Others:

F5HM

1 gantry machine with DLM2 C&P6 or DLM2 C&P12

heads and IC head

X-2

2 gantry machine with all 4 head types possible on all

gantries

X-3

3 gantry machine with C&P heads on G1/G4 and C&P6/

1220 or Twin on G3

X-4

4 gantry machine with C&P heads on all gantries -same

types required in any one placement area

HF HF series

HF3 HF series

HS50(VC2)

HS60(VC2)

HS machines in their current series versions

D1 D series

D1+ D series

D2 D series

D3 D series

D4 D series

S27HM

2 gantry machine with DLM2 C&P6 and/or DLM2 C&P12

heads

DLM2 RV 6 C&P 6 placement head during the development phase

DLM2 RV 12 C&P 12 placement head during the development phase

DLM2 16Bit RV

C&P 6 placement head series with 16 Bit CAN processor on head

interface

DLM2 16Bit RV

C&P 12 placement head series with 16 Bit CAN processor on head

interface

VHS head C&P 20 placement head

Component

table

CO table for S feeder

X-Table CO table for X feeder

MTC2 MTC 2 for location 2 of X3 and X2 at location 4

CACCIA Manual 1 Caccia Student Guide

Issue 04/2007 EN

1.1.4 Change Properties - Advanced Subsystem Configuration

→ Open the Advanced Subsystem Configuration dialog box with the button:

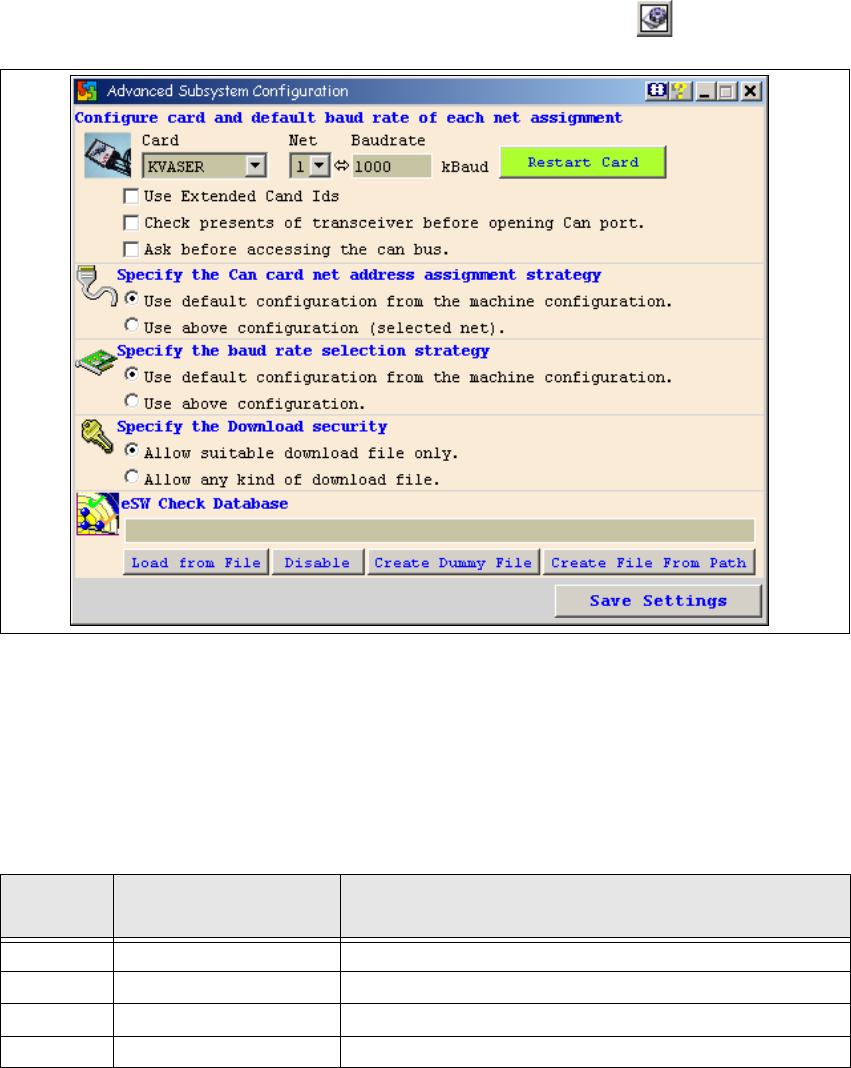

Fig. 1 - 6 Advanced subsystem configuration dialog box

CAN card configuration and default baud rate setting: 1

–CAN card:

Select the CAN card which is installed on the system concerned. 1

– Net, baud:

– Restart card

Restarts the selected CAN card. 1

Net

Baud

1 Kbaud = 1 Kbit/s

Machine(s)

1, 2 1000 Kbaud For X2/X3/X4 and HF/HF3 machines.

1 500 Kbaud For HS 50/ HS 60 machines

2 125 Kbaud For HS 50/ HS 60 machines

1 1000 Kbaud S27HM

1 Caccia Student Guide CACCIA Manual

Issue 04/2007 EN

– Use extended CAN IDs

This option has been introduced due to an address extension. 1

Enable this option if you have installed one of the following CAN cards: 1

– CANAS

– CANBLUE

–CANDY

The drivers for these CAN cards need to be informed that they are to operate in extended CAN

mode. This information is required at program start. 1

– Check presence of transceiver

If this option is disabled, Caccia can be used "offline" for training purposes. 1

Note

This option only works with KVASER and CANcardXL cards 1

– Assignment: CAN Card - Net

– Recommended setting: Use default configuration from the machine configuration.

– Specify baudrate selection

– Recommended setting: Use default configuration from the machine configuration.

– Specify the download security

– Recommended setting: Allow suitable download file only.

Embedded Software Check (eSW) Check DataBase

The eSW Check compares the SW versions of the individual CAN subsystems with the latest SW

version. This functions allows you to detect differences in the software versions used by the CAN

subsystems. 1

Before you can use the eSW Check Database option, the following preparations need to be per-

formed: 1

→ Copy the firmware files (FW files) from the C:\SRProgramme\CANFw folder of the current sta-

tion software release. Specify a suitable folder on the service laptop as the target for these files

(e.g. C:\FW_Vergleich).

→ Click on the Create File from Path button. A dialog box for searching a folder will open. Select

the folder chosen on the service laptop as the target for the FW files (e.g. C:\FW_Vergleich)

and click on OK.
