CACCIA Manual 1 Caccia Student Guide Issue 04/2007 EN 79 Fig. 1 - 54 1 wire hub for NC (03041473-02) Note In future we don‘t have the switch for the locati on code (only HF). The location code for the noz- zlechanger wil…
1 Caccia Student Guide CACCIA Manual
Issue 04/2007 EN
78

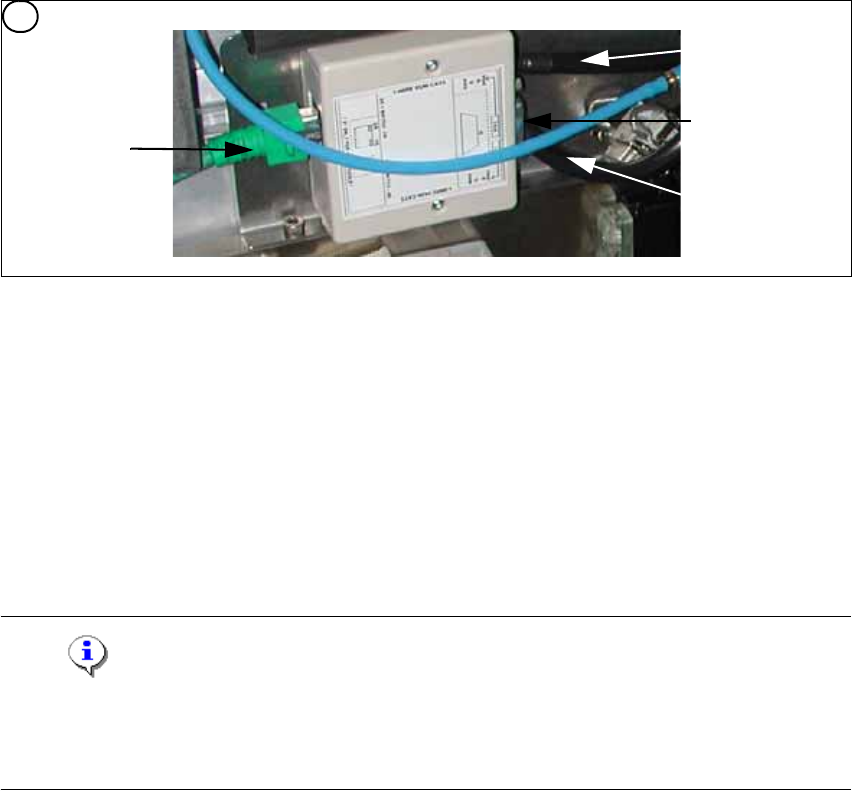

Fig. 1 - 52 1 Wire CAT 5 Splitter (03040219-01)
Fig. 1 - 53 1 Wire trailing interface board (03042214-01)
2
Input CAT 5 cable
from RS 232 Interface
Input 24 V for
NC
Output CAT 5
to the NC HUB
Gantry 3or 4
Output CAT 5 to
the 1 Wire gan-
try board
Output CAT 5
to the NC HUB
Gantry 1or 2
3
Switch: position below Gantry 1/2
position above Gantry 3/4
This board is located directly on the CAN
bus connector of the trailing interface.
Connector CAT5 cable from the 1 wire
distributor
Connection to the second Gantry in the
placement area
CACCIA Manual 1 Caccia Student Guide
Issue 04/2007 EN
79
Fig. 1 - 54 1 wire hub for NC (03041473-02)
Note
In future we don‘t have the switch for the location code (only HF). The location code for the noz-
zlechanger will be realized via hardware, directly in the connector on the location (X112 / X122 /
X132 / X142) at HF and Siplace X. 1
(1) Input CAT 5 cable from the CAT 5
splitter
(2) SUB-D connector for option (query reject con-
tainer)
(3) Connection NC 1 (4) Connection NC 2
on the right side display (2 LED‘s) for NC C&P6/12 Light barrier NC open/closed and Valve NC
open/closed for each row
on the left side two LED‘s directly on the connector
yellow LED: Reject box components connected
green LED: Reject box nozzles connected
4
1
2
3
4
1 Caccia Student Guide CACCIA Manual
Issue 04/2007 EN
80
Fig. 1 - 55 NC control board only at the 20 C&P head nozzle changer
Fig. 1 - 56 Position of temperature sensors on the head plate
Fig. 1 - 57 Temperature sensors / gantry recognition
Display (2 LED‘s) for NC C&P20 (The LED‘s are invisible because there is a cover under the NC)
Light barrier NC open/closed and Valve NC open/closed
5. Temperature sensor on the PCB cam-
era
(6) Temperature sensor/ EEPROM gantry recog-
nition
7. Temperature sensor on the PCB cam-
era
(8) Temperature sensor/ EEPROM gantry recog-
nition
5
Connection to 1 wire
hub for NC
1
2
6
6
21
