1 - 27 S tudent Guide CAN BUS W orkshop Edition 06/20 08 3 CAN B US 27 48 D at u m 06 /20 08 Vers io n 0 3 CA N Bu s W o r k sh o p Mat hi a s M ic he l SIPL ACE Ca mp u s Automati on and Driv es 6. LP Kennung X - Se rie…
1 - 26
Student Guide CAN BUS Workshop
3 CAN BUS Edition 06/2008
26
46Datum06/2008 Version 03 CAN Bus Workshop Mathias Michel
SIPLACE Campus
Automation and Drives

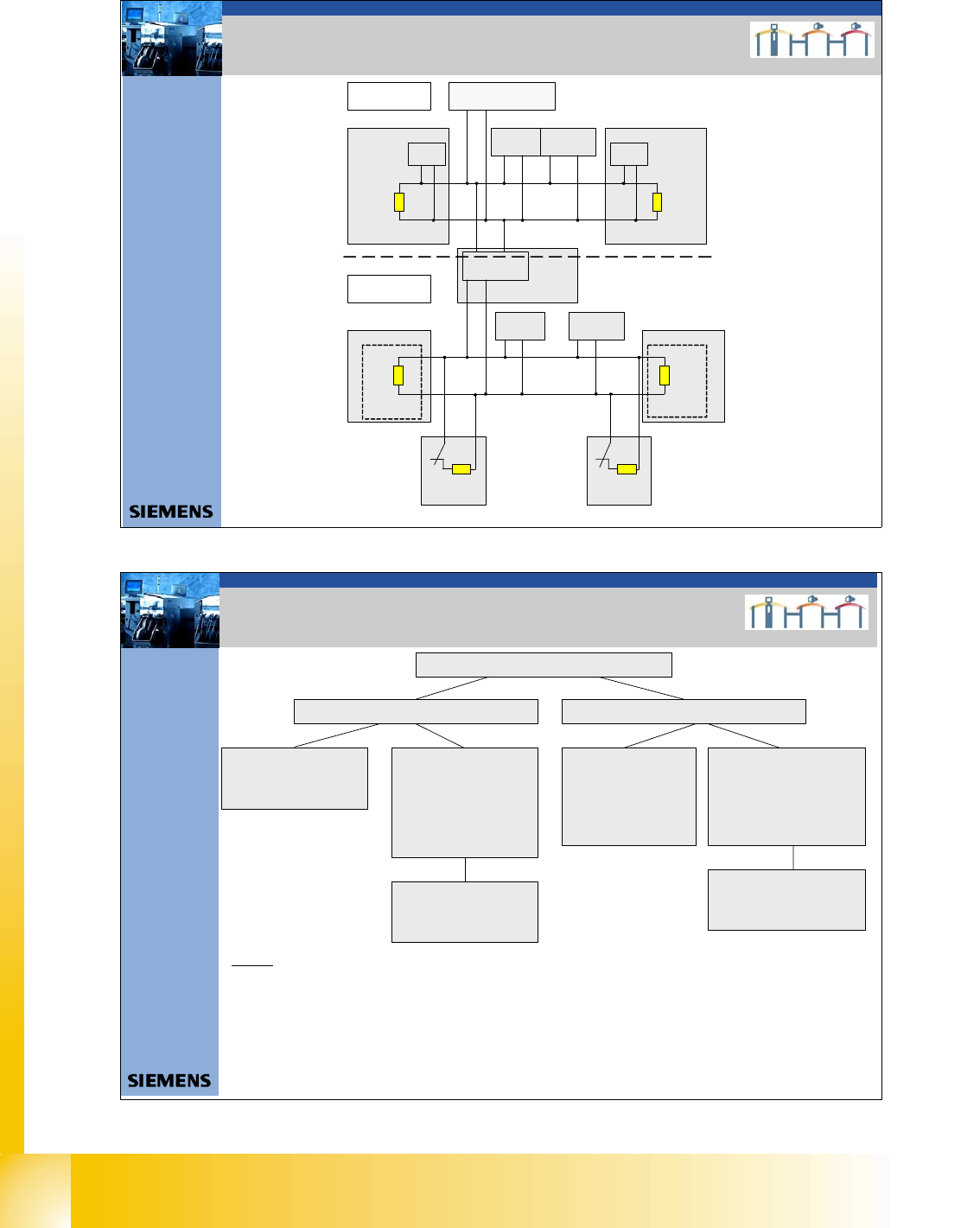

4. CAN Bus Structure Siplace D4
Component Table 1Component Table 4
Gantry head distributer
Gantry 4
TQM
CA N_High
CAN_Low
Machine CAN Bus
1 Mbit/s
CAN Bus for
Component table and
tape cutter 500 kbit/s
Axis u nit 1/4
PA 1
Transport
control unit
Micro BOX PC
(Machine controller)
Gantry head dis tributer
Gantry 1
TQM
CAN_Hig h
CAN_Low
CAN
I/O module
sector 4
CAN Interface
500 KBit/s
CAN_ Hig h
CAN_L ow
CAN_Hig h
CAN_Low
Com. unit
Tape cutter
Location 1
Tape cutter
Location 4
Com. unit
CAN Bus
Terminator
Comp.table 1
CAN Bus
Terminator
Comp.ta ble 4
120 O hm120 Ohm
12 0 Oh m
12 0 Oh m
Relays
conta ct K1
Relays
co nt act K 1
47Dat um06/2008 Version 03 CAN Bus Workshop Mathias Michel
SIPLACE Campus
Automation and Drives
Note:
For more information please see chapter communication and control in SG CAN
Bus Workshop, SG X-Serie or CACCIA manual.
5. One Wire Bus
5. One Wire Bus
One Wire Bus Siplace
HF-machine X-Series machine
Version 1
- i ntegrated in the CAN cable
- 24V power supply for NC,
in the CAN c able
Version 2
- integrated in the CAN cable
- 24V power supply from the
Docking unit (add. cable)
- R etrofi t kit number
( 00194610-01)
- TI 2005-08E03 CAN I/O
Module Version 02
Version 1
- One W ire Bus integ rated
i n CAT 5 cable
- 24V power supply for NC,
from th e Docking unit via
1-Wire CAT5 distrib utor
Version 2
- One Wire Bus monitor only
the te mpera tur sensors on
the head plate (CAN nod e)
- one C AT 5 cable goes directly
to the trailling interface .
Version 3
- new board on the I /O module
- Interfa ce 1-W ire C AN 2, for the
option WPC 4 with SW60 5
Version 3
- integrated 1-Wire CAT 5
Interfac e into the C AN I /O
Module (Version 03)
1 - 27
Student Guide CAN BUS Workshop
Edition 06/2008 3 CAN BUS
27
48Datum06/2008 Version 03 CAN Bus Workshop Mathias Michel
SIPLACE Campus
Automation and Drives

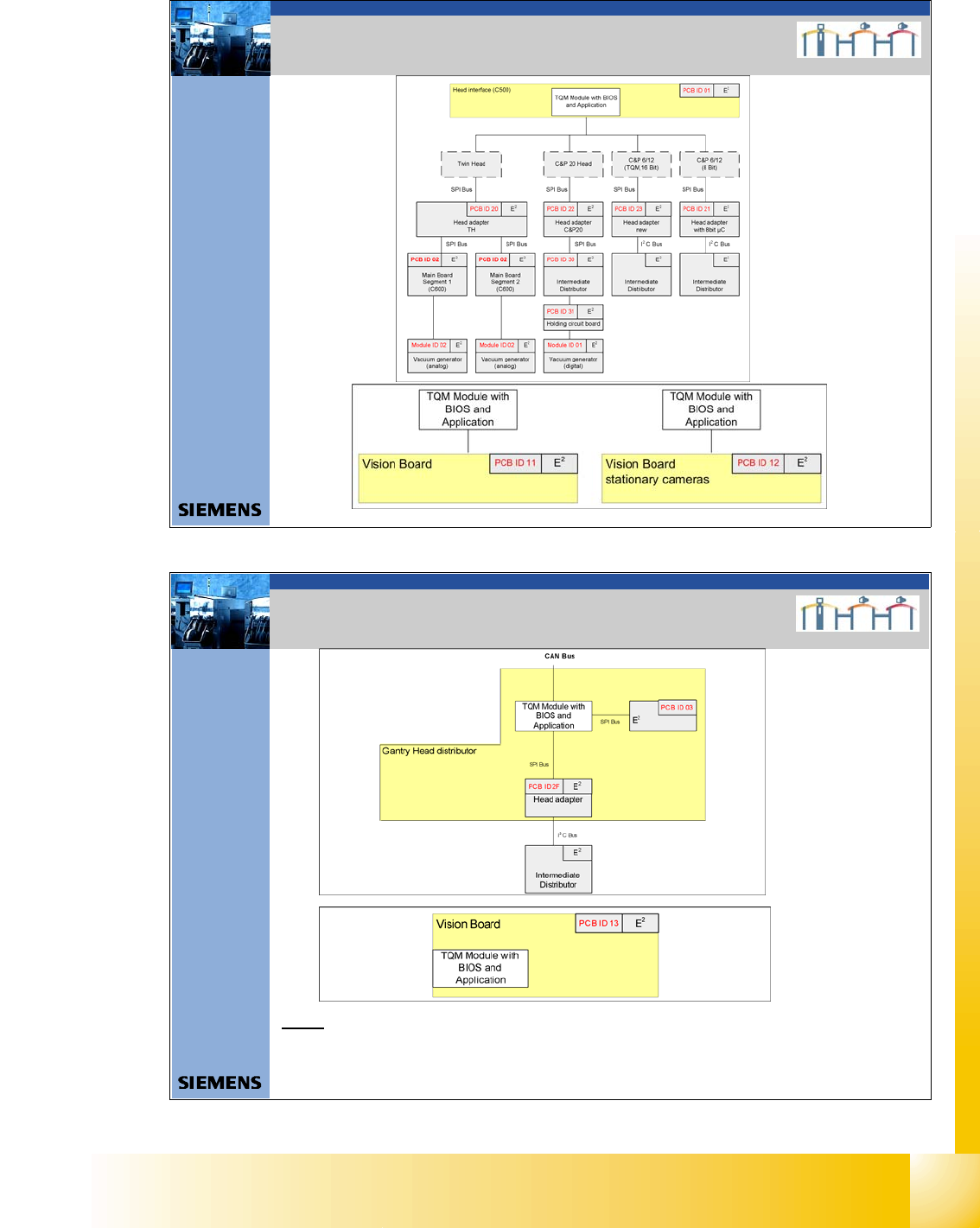

6. LP Kennung X-Series machine
6. Board type recognition
49Datum06/2008 Version 03 CAN Bus Workshop Mathias Michel
SIPLACE Campus
Automation and Drives
6. LP Kennung D-Series machine
6. Board type recognition
Note:
For more information please see chapter communication and control in SG CAN
Bus Workshop, SG X-Serie or CACCIA manual.
