CACCIA Manual 1 Caccia Student Guide Issue 04/2007 EN 45 1.6 Firmware Download → Click on the button to open the Subsystem Co ntrol Center d ialog box: 1 Fig. 1 - 25 Firmwar e download → T o perform a firmware download, …

1 Caccia Student Guide CACCIA Manual

Issue 04/2007 EN

Note

To a better overview, open both I/O windows at the same time. 1

There are 3 output control types: 1

– State control e.g. lamp 1 left/lamp 2 right.

– Negative edge controlled e.g. component counter.

– Inverse control e.g. compressed air main valve -valve switches off when enabled (bright yel-

low).

The I/O outputs are assigned according to the individual machine type. 1

Note

Key difference in HF versions:

There is a „HF original machine stand“ and a „A-00X machine stand (rectangular layout)“. 1

CACCIA Manual 1 Caccia Student Guide

Issue 04/2007 EN

1.6 Firmware Download

→ Click on the button to open the Subsystem Control Center dialog box:

Fig. 1 - 25 Firmware download

→ To perform a firmware download, right-click with the mouse on the required subsystem.

→ A context menu will appear. Select the menu item Download.

→ The Download dialog box will open. An individual download can be performed here for the se-

lected subsystem (CAN ID).

1 Caccia Student Guide CACCIA Manual

Issue 04/2007 EN

1.6.1 Multiple Downloads

To perform multiple downloads, select the required subsystems in the Subsystem Control Cen-

ter and then click on n Download. 1

1.6.2 Selecting the Firmware to be Loaded

Note

In the Change Properties - Advanced Subsystem Configuration dialog box, select the option

Allow suitable download file only. This ensures that you will only be shown suitable targets

(BIOS, Appl1 or Appl2) for selection of the download files. 1

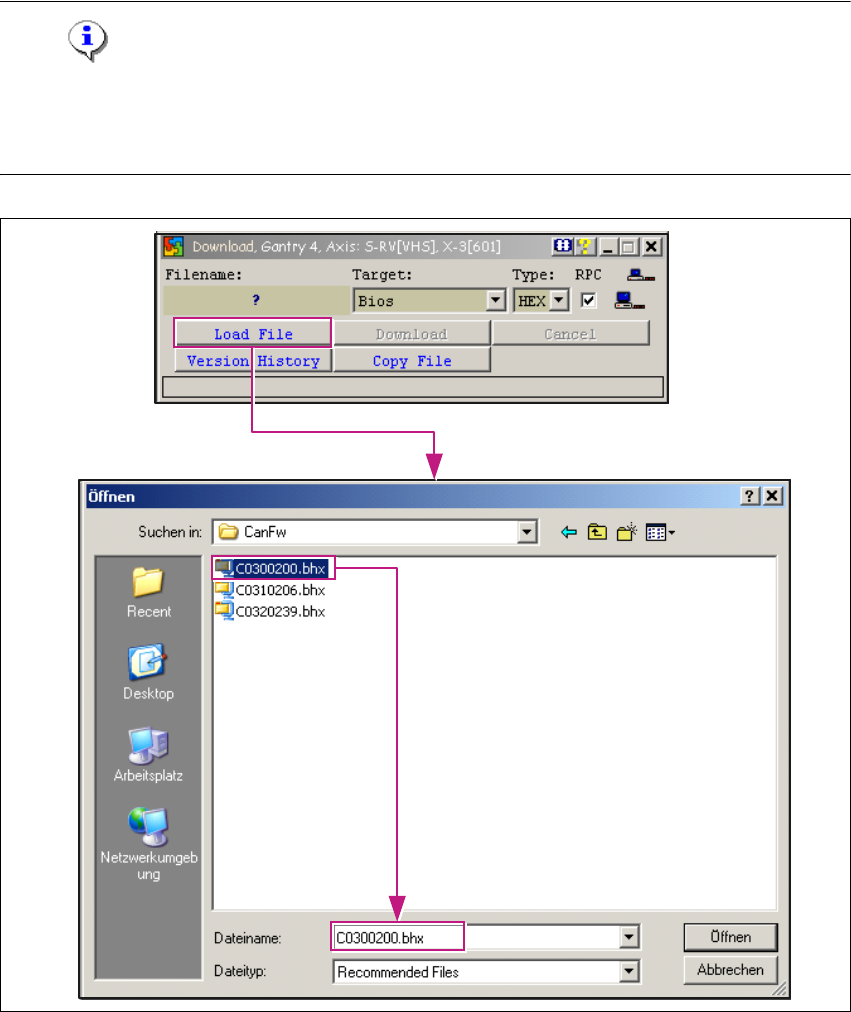

Fig. 1 - 26 Selecting the firmware to be loaded
