CACCIA Manual 1 Caccia Student Guide

Issue 04/2007 EN

1.5 Function Check via I/O Modules

→ Click on the button to open the Subsystem Control Center dialog box:

Fig. 1 - 24 Function check via I/O modules

Tab. 1 - 15 Function check via I/O modules

Button Description / Action

I/O Opens the input/output functions.

I/O Main Opens the I/O module in the main distributor.

IO States

Opens the I/O view of the main distributor with permanent I/O update.

Haube 2 and Haube 3 show that this is the I/O view of the main dis-

tributor. 1

I/O Opens the input/output functions.

I/O Sub Opens the I/O module in the subdistributor.

IO States

Opens the I/O view of the main distributor with permanent I/O update.

Haube 1 and Haube 4 show that this is the I/O view of the

subdistributor. 1

Main Sub

1 Caccia Student Guide CACCIA Manual

Issue 04/2007 EN

Note

To a better overview, open both I/O windows at the same time. 1

There are 3 output control types: 1

– State control e.g. lamp 1 left/lamp 2 right.

– Negative edge controlled e.g. component counter.

– Inverse control e.g. compressed air main valve -valve switches off when enabled (bright yel-

low).

The I/O outputs are assigned according to the individual machine type. 1

Note

Key difference in HF versions:

There is a „HF original machine stand“ and a „A-00X machine stand (rectangular layout)“. 1

CACCIA Manual 1 Caccia Student Guide

Issue 04/2007 EN

1.6 Firmware Download

→ Click on the button to open the Subsystem Control Center dialog box:

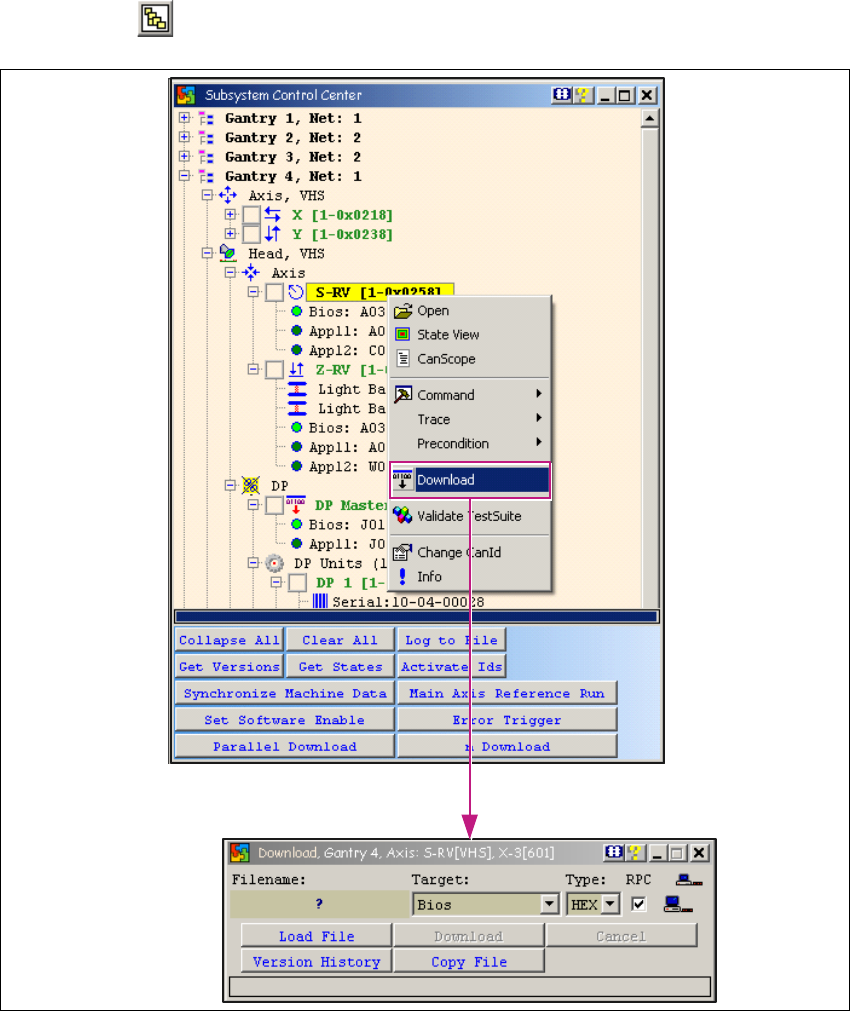

Fig. 1 - 25 Firmware download

→ To perform a firmware download, right-click with the mouse on the required subsystem.

→ A context menu will appear. Select the menu item Download.

→ The Download dialog box will open. An individual download can be performed here for the se-

lected subsystem (CAN ID).
