1 - 12

Student Guide CAN BUS Workshop

2 Communication and Control Edition 06/2008

2.2.3 CAN Bus Concept Siplace X4I

Note: For the Siplace X4I and only with the SW 70x, there is only one station computer, which

assumes control of the entire machine.

The placement machine SIPLACE X4I uses a bus system with 1 Mbit/s transmission rate.The

CAN: Bus system begin at the Communication board and is split in 2 path. Every path is termi-

nated by a 120 ohm terminator on the head board at the individual placement head.

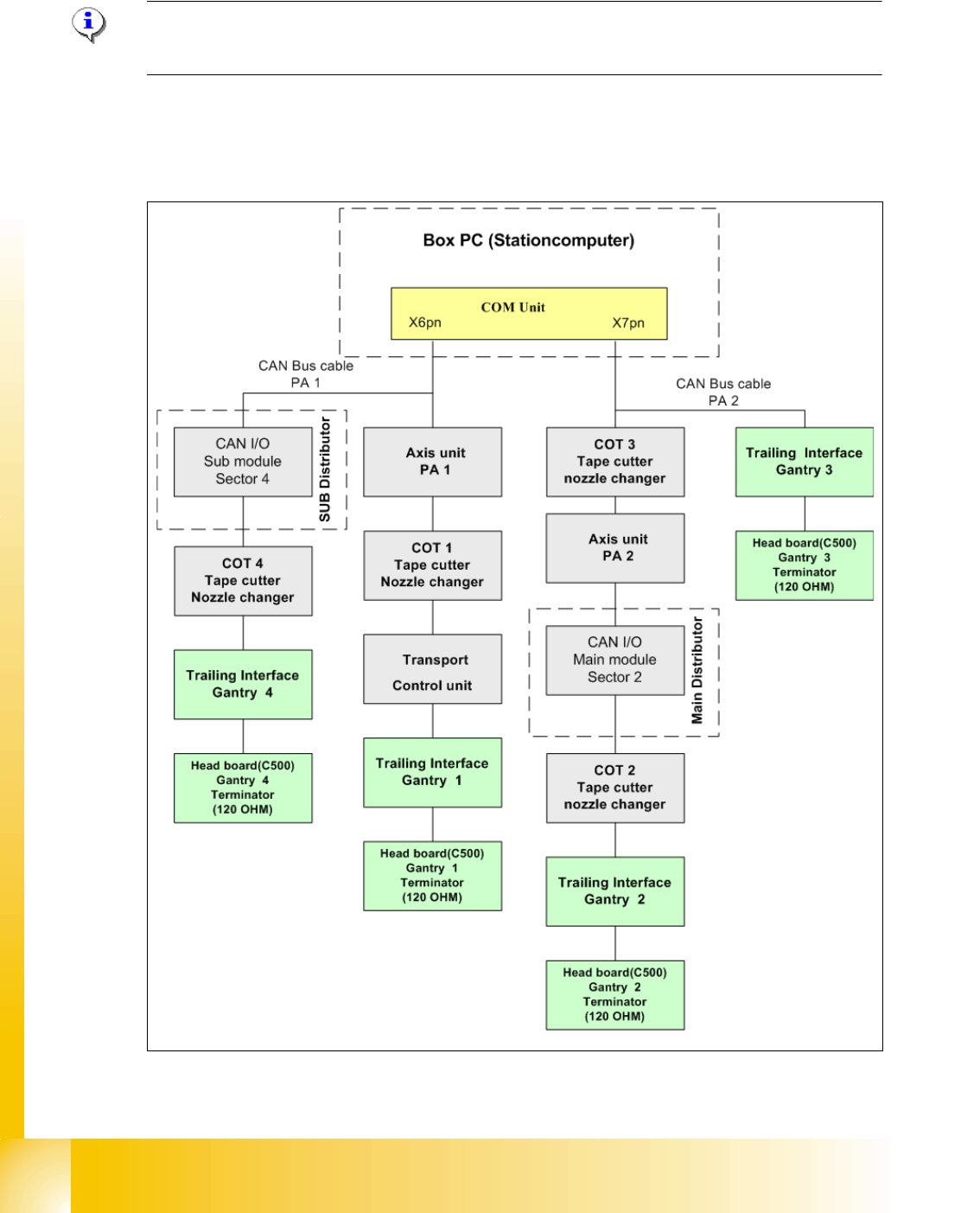

Fig. 2.2 - 10 CAN Bus overview Siplace X4I

1 - 13

Student Guide CAN BUS Workshop

Edition 06/2008 2 Communication and Control

2.2.4 CAN Bus Concept SiplaceX3

The placement machine SIPLACE X3 uses a bus system with 1 Mbit/s transmission rate.The CAN

Bus system begin at the Communication board and is split in 2 path. Every path is terminated by

a 120 ohm terminator on the head board at the individual placement head.

Fig. 2.2 - 11 CAN Bus overview Siplace X3

Note: When the Twin head is mounted, the switch for the terminator on the head board (C500)

have to be OFF. 2

Note: From SW 605 the WPC4 will be offered as an option for the X2 and X3. This option requires

thenew "Interface 1-Wire CAN2". The WPC is then controlled via the CAN2.When the Twin head

is mounted

1 - 14

Student Guide CAN BUS Workshop

2 Communication and Control Edition 06/2008

2.2.5 CAN Bus Concept SiplaceX2

The placement machine SIPLACE X2 uses a bus system with 1 Mbit/s transmission rate.The

CAN: Bus system begin at the Communication board and is split in 2 path. Every path is termi-

nated by a 120 ohm terminator on the head board at the individual placement head

Fig. 2.2 - 12 CAN Bus overview Siplace X2

Note: When the Twin head is mounted, the switch for the terminator on the head board (C500)

have to be OFF. 2
