1 Caccia Student Guide CACCIA Manual Issue 04/2007 EN 16 1.2.2 CAN IDs The CAN IDs can be view ed in the Subsystem Control Ce nter . 1 → T o start the Subsyste m Control Center , click on the butt on: 1 Fig. 1 - 8 Subsys…

CACCIA Manual 1 Caccia Student Guide

Issue 04/2007 EN

Tab. 1 - 2 Subsystem Control Center dialog box buttons

Get Versions

Starts a version information query for all subsystems.

The subsystems found will be opened.

– Green: At least one BIOS message has been sent.

– Red: No subsystem message or an error has oc-

curred The errors are listed in a separate window.

Any subsystems which have not been applied in X-

Series feeders will be marked red.

If the tree structure does not open when you click on the

Get Version button, the error lies in the connection, in

the machine configuration or in a version of Caccia

which is too old (lower than 14.0.75). 1

Another possible error source is when the MC has not

yet been booted. In this case, you need to assign the

IDs for the individual nodes. Simply click on the Acti-

vate IDs button and this will be performed automatically.1

Get States

Reports the state of each subsystem,

(make sure you click on Get Versions beforehand.).

Activate IDs

Assigns a CAN ID for each subsystem, if the machine

controller has not been started.

n Download

Starts a multiple download to the subsystems. The se-

lected subsystems need to be compatible, otherwise an

error message will be issued.

Synchronize Machine

Data

Enables the developer to perform machine data or MA

database downloads at the station.

Main Axis Reference

Run

Enables the developer to perform multiple gantry axis

reference runs.

Set Software Enable Enables the software release.

Error Trigger

Enables you to trigger the MC error messages (certain

HW requirements necessary). 1

Button Description / Action

1 Caccia Student Guide CACCIA Manual

Issue 04/2007 EN

1.2.2 CAN IDs

The CAN IDs can be viewed in the Subsystem Control Center. 1

→ To start the Subsystem Control Center, click on the button:

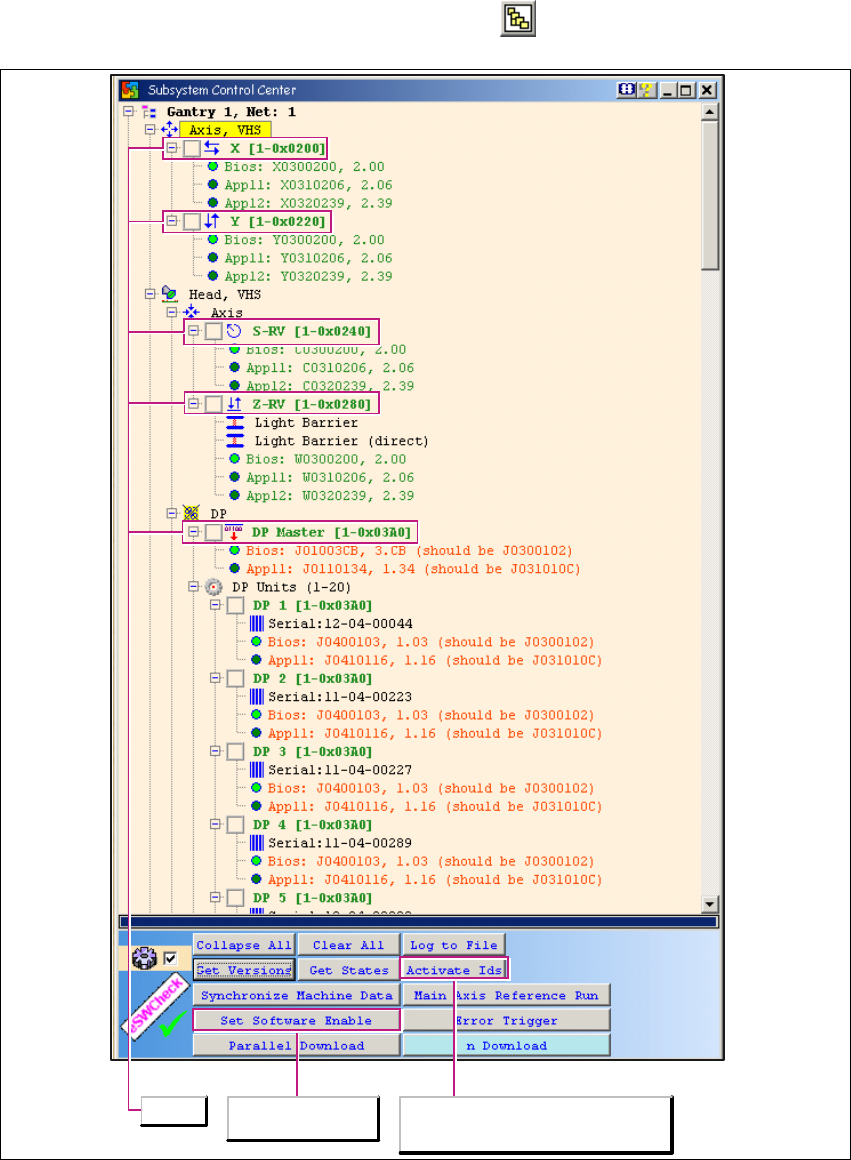

Fig. 1 - 8 Subsystem Control Center: CAN IDs

CAN IDs

Enables the software.

If the MC is unable to start or if it is blocked

by an empty diskette, Caccia can perform a

machine type-specific CAN ID assignment

CACCIA Manual 1 Caccia Student Guide

Issue 04/2007 EN

When you start the machine controller (MC), the individual CAN subsystems are automatically as-

signed machine type-specific CAN addresses or CAN IDs. These are required for requests, down-

loads or function calls. 1

If the MC is unable to start or if it is blocked by an empty diskette, Caccia can perform a machine

type-specific CAN ID assignment with the Activate Ids button. 1

– Once this has been completed, you can perform downloads.

– To execute other functions, you will need the correct CAN ID and CAN BUS command.

– A few functions also require the software release signal and pressing of the machine START

button.

1.2.3 Opening the Subsystem Control Center with (eSW) Firmware Check

Note

The requirements for using the eSWCheck Database option are explained in Section „Embedded

Software Check (eSW) Check DataBase“ auf Seite 12. 1

→ Click on the button to open the Subsystem Control Center dialog box:

The general operation of the Subsystem Control Center is described in Chapter 1.2.3 „Ope-

ning the Subsystem Control Center with (eSW) Firmware Check“ auf Seite 17. 1

The eSW Firmware Check functions are available when the eSWCheck icon is shown and the

tick has been set. 1
