User Manual Line Computer UNIX 4 Data Management Software Version 501.xx 01/99 Issue 4.5 F ile Display User Interface 4 - 35 ● Se lect err or file .error by double- clicki ng. The main wi ndow of the Fi le Dis play conta…
4 Data Management User Manual Line Computer UNIX
4.5 File Display User Interface Software Version 501.xx 01/99 Issue
4 - 34
Starting the File Display option via the desktop, with an error file in the "master data:Leiterplatten/..."
directory serving as an example:
● Click on FILE -> File contents on the desktop menu bar.

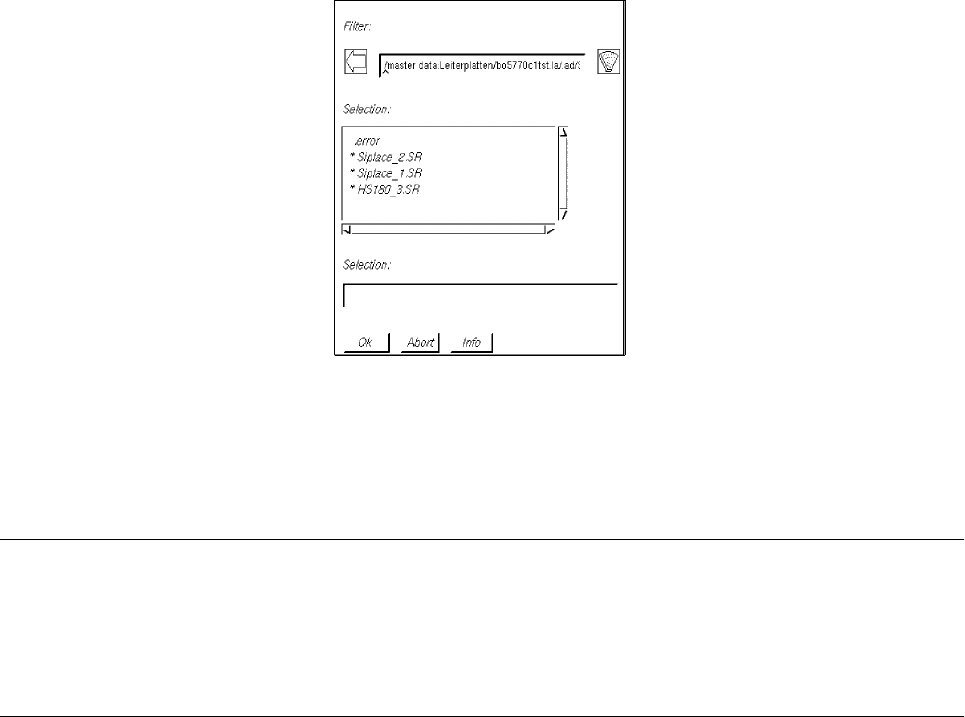

The following FSB for the selection of the path (directory) in which the error file is located is
opened:
NOTE
If the File Display had previously been opened and the current state (data type) been saved under
"OPTIONS --> Save state", (see section 4.5.2.2), the FSB is opened with the file filter previously
saved.
● Select directory master data: Leiterplatten by double-clicking.
The PCBs contained in the directory are displayed.
● Successively select PCB *xx.la, *.ad, *SMT.AK, *Linie.VA and *xx.AR by double-clicking (or
else by clicking once and confirming the selection with OK in each case).
If available, an error file ".error" is now displayed in the FSB.
User Manual Line Computer UNIX 4 Data Management
Software Version 501.xx 01/99 Issue 4.5 File Display User Interface
4 - 35
● Select error file .error by double-clicking.
The main window of the File Display containing the contents of the error file ".error" is opened.
The status bar of the main window displays the complete directory path in which the error file is
located (see Fig. 4.5.1).
NOTE
All error messages and warnings that occurred during a producibility check (machine-, set-up- and cluster
compile) are logged to the "all.error" file. The main window of the File Display containing the contents of said
file can be opened directly via the Job Control user interface (see chapt. 14, section 14.2.3.2), thus making a
search of the directory structure containing the error file unnecessary.
4 Data Management User Manual Line Computer UNIX
4.5 File Display User Interface Software Version 501.xx 01/99 Issue
4 - 36
4.5.2 Main Window of File Display
In the following, the areas of the main window and their functions are explained.
Fig. 4.5.1 Main Window "File Display - Error File"
The main window is subdivided as follows:
- Menu bar
- Status bar
- Display area
Menu bar
The menu bar contains the menus "FILE", OPTIONS", and "HELP". The first menu option of the "FILE" menu
is explained in section 4.5.2.1. The "OPTIONS" menu is described in section 4.5.2.2.
NOTE
Since the functions and operation of the "FILE" and "HELP" menus are similar to those in other application
programs of the line computer, they are described comprehensively in chapt. 2 of this manual.
Status bar
The status bar displays the complete path in which the opened file is stored.
Display area
In this area the contents of the currently open file is presented. If the file contains more information than can fit
in the display area, the contents can be scrolled by means of the vertical scroll bar.
menu bar
display area
scroll bar
status bar
