6 Product / Package Form User Manual Line Computer UNIX
6.1 Package Form Editor Software Version 501.xx 01/99 Issue
6 - 2
NOTE
If a new GF-number has been entered, the selection window for the selection of the desired package
form type is first displayed above the main window of the GF-Editor.
(A "PDC" is selected as default type).
"Package Form Type" Selection Possibilities for the New Definition of a Package Form
-
PDC
A P
artially Defined Component (component without pins, e.g. chip
or Melf components) is to be described.
-
regular FDC
A F
ully Defined Component (e.g. FlatPack) with regular package
form is to be described.
-
irregular FDC
A F
ully Defined Component with irregular package form is to be described.
-
BGA
A B
all Grid Array is to be described.
●
Click on desired package form type.
The selection window is closed and the main window of the GF-Editor containing the
selected package form type is displayed.
User Manual Line Computer UNIX 6 Product / Package Form
Software Version 501.xx 01/99 Issue 6.1 Package Form Editor
6 - 3
6.1.2 Main Window of Package Form Editor
Depending on whether vision data or handling data are to be edited, the layout of the main window is determined
by selecting the desired option in the setting area (see section 6.1.2.2).
NOTE
The main window of the Package Form Editor is always opened by displaying the vision data first.
●
Click on Vision data or Handling data.
The main window is set up in accordance with the selection (see Fig. 6.1.1 to Fig. 6.1.4).
Fig. 6.1.1 Main Window "Package Form Editor (Displaying Vision Data - Irregular FDC)"
menu bar
editing fields
command area
area for general settings
view area
selected pin
group
title bar
pin
Group
Pin/Ball
(write-protected)
6 Product / Package Form User Manual Line Computer UNIX
6.1 Package Form Editor Software Version 501.xx 01/99 Issue
6 - 4

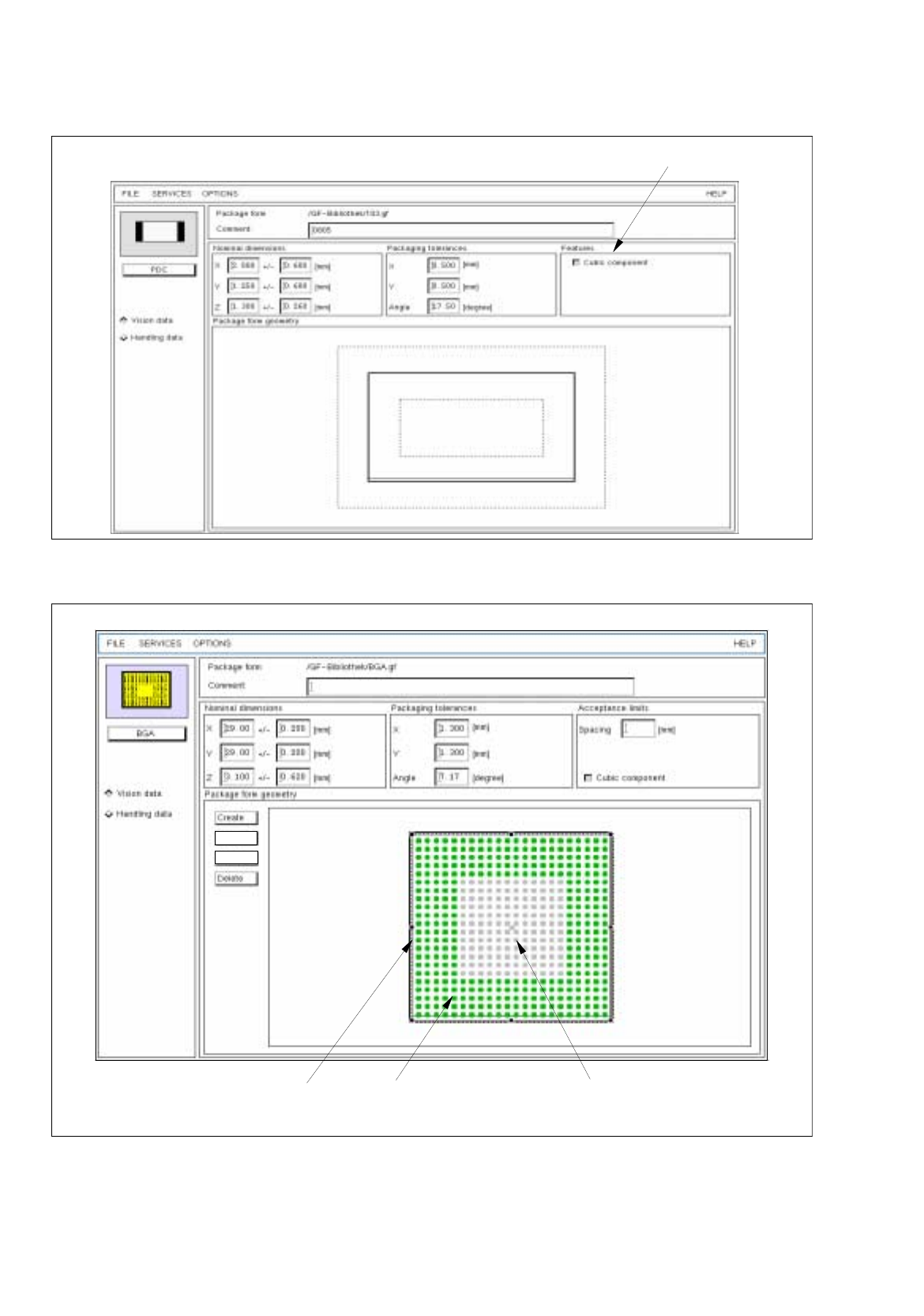

Fig. 6.1.2 Main Window "Package Form Editor (Displaying Vision Data - PDC)"
Fig. 6.1.3 Main window "Package Form Editor (Displaying Vision Data - BGA)"
selection field
(write-protected)
grid group ball
balls identified as
not available
Group
Pin/BGA
