- (Search)
This command permits jobs to be filtered from the current list by means of different search criteria.
● Activate the icon.

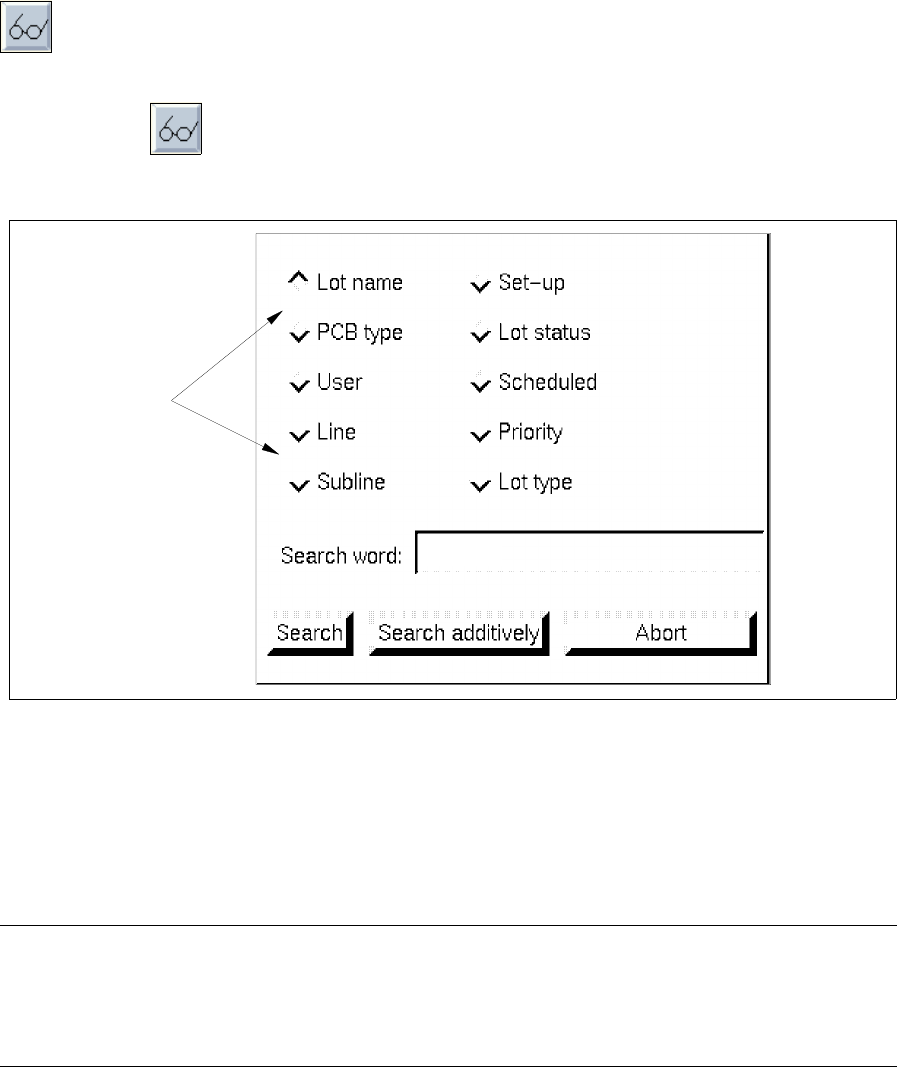

The dialog window "Search for job data" dialog window opens.
● Activate the button for the desired search criterion, e.g. Lot name.
● Enter the search work, e.g.
test
,
in the editing field.
● Click on the Search (or Search additively) button.
The dialog window closes.
All jobs with lot names containing the character string "test" are highlighted in the current list.
NOTE
If jobs were already highlighted in the list following a prior search operation, then all jobs found during
the current search are highlighted in addition to the previously one found, if "Search additively" is
clicked on.
Search criteria
test
User Manual Line Computer UNIX 14 Control / Control Modules
Software Version 501.xx 01/99 Issue 0.2 Job Control
14 - 23
14.1.4.7 Command Area, Section "Edit"
- (Create)
If this icon is activated, a new job can be entered in the editing area.
● Activate the icon and subsequently the icon.
The edit support "Job data" (FSB) opens.
● In the FSB successively select the files required for job to be produced by double-clicking
(<PCB>.la, <line>.ak, <subline>.va and <setup>.ar). After the setup has been selected, the FSB
closes.
The names of the selected files are now displayed in the editing area in the corresponding editing
fields.
● Click on the Lot name and enter a name for the lot (max. 21 characters).
● Click on the Lot size editing field and enter a number for the nominal size of the job
(max. 10 numbers ranging from "1" through "2147483674").
● Click on the Lot type editing field and enter the letter for the lot type desired.
This letter may be an "R" denoting blanks (i.e. fixed nominal sizes are input), an "F" denoting
finished parts (i.e. more PCBs are input than predefined under the lot size) or a "U" denoting an
infinite lot (i.e. the nominal size is of no importance). No other letters are valid.
● If required, delete the default value "1" in the Priority editing field and enter a different value for
the priority of the job. (The priority values are required for Set-Up Optimization).
For defining the priority 2 characters within the range from "1" through "99" can be selected. The
higher the value the higher the priority.
● If necessary, click on the Conveyor track software switch to change the currently activated con-
veyor lane.
The display changes from 1 (= right conveyor lane when viewing in the direction of travel) to
2 (= left conveyor lane), or vice versa.
NOTE
Where a dual lane conveyor is configured, a “conveyor track” software switch is provided by means of
which the conveyor lane on which a particular job is to be processed can be selected.
The number of the conveyor lane (track) selected is displayed in the "CT" column of the job list.
● Click on the OK button in the command area.
The job will be transferred to the job list. If "Auto-Schedule On" is activated (see section 14.1.4.5),
the job will be immediately checked for producibility and subsequently processed before all other
jobs scheduled.
In the case of faulty entries, the corresponding field is surrounded by a red frame and an error
message is displayed above the job list. The faulty entries must be corrected.
NOTE
Depending on the setting of the "Insert" option (see page 14 - 17), the new job will be added at the top
or at the end of the current list, or inserted by a mouse-click (without "OK").
14 Control / Control Modules User Manual Line Computer UNIX
0.2 Job Control Software Version 501.xx 01/99 Issue
14 - 24
- (Change)
If this icon is activated and a job is selected from the view area with the right
mouse button, its data
are transferred to the editing field and can now be edited.
NOTE
For a job that has already been scheduled, only the data for the lot type and the nominal size can be
changed, all other data cannot be edited.
Example: Renaming a job
● Activate the icon.
● Click on the job to be renamed with the right mouse button.
All data are transferred to the editing area.
● Click on the Lot name editing field.
● Delete the old name and enter a new name.
● Click on the OK button in the command area.
The job is displayed in the job list with the new name.
- (Edit-support)
Clicking on this icon causes the "Job Data" (FSB) edit support to open provided the icon for the
"Create" command was activated beforehand
.
● Activate the icon.
The "Job data" edit support (FSB) first opens containing the file selection of all defined PCBs.
● Successively select <PCB>.la, <line>.ak, <subline>.va and <setup>.ar by double-clicking in each
case.
The FSB closes and the names of the selected files are displayed in the appropriate editing fields.
- OK
The editing session is terminated by choosing OK, and the job is inserted in the job list in accordance
with the setting of the "Insert" option (see page 14 - 17).
