User Manual Line Computer UNIX 4 Data Management

Software Version 501.xx 01/99 Issue 4.5 File Display User Interface

4 - 37

4.5.2.1 FILE menu

- Opening

This option can be used to select a new file whose contents are to be displayed in the display area.

● Select FILE --> Open...

Depending on the data type selected under Options (see page 4 - 38) an FSB containing the

applicable filter is opened. The following example is valid for the setting "Line configuration lists".

● Successively select the entries master data: Anlagen, SMT.ak, .ra and .mf displayed in the FSB, by

double-clicking (or else by clicking once and confirming the selection with OK in each case).

The FSB is closed and the line configuration list of the line is displayed in the main window of the

File Display.

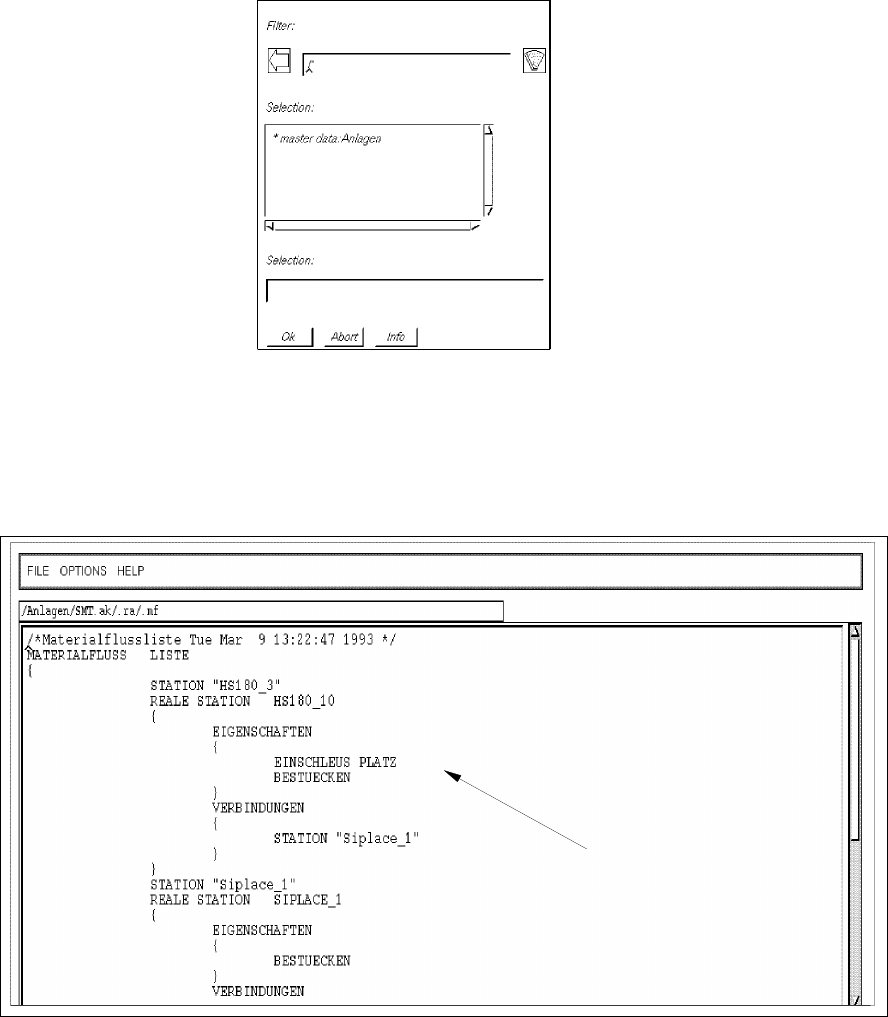

Fig. 4.5.2 Main Window "File Display - Line Configuration List"

line configuration list

4 Data Management User Manual Line Computer UNIX

4.5 File Display User Interface Software Version 501.xx 01/99 Issue

4 - 38

4.5.2.2 OPTIONS menu

- Data Type

This menu option enables a filter to be selected from a number of predefined filters which will then

appear in the FSB as the default setting upon selecting "FILE --> Open...".

● Select OPTIONS --> Data type.

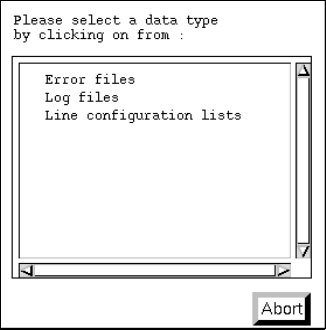

The dialog box containing the listing of the predefined filters is opened.

● Click on desired data type, e.g. Error files (or Abort if the dialog box is to be closed without

selecting a filter).

The dialog box is closed.

- Printer Selectionl

This menu items enables an installed printer to be selected.

● Select OPTIONS --> Printer selection.

The window for the printer selection is opened.

● Select desired printer type and confirm the selection with OK.

- Saving State

This menu item enables the data type and printer selected under Options to be saved so that these

presettings will be available immediately when the File Display is restarted.

● Click on OPTIONS --> Save state.

The currently set options for the data type and the printer selection are saved as default

settings.

User Manual Line Computer UNIX 4 Data Management

Software Version 501.xx 01/99 Issue 4.6 CAD Import

4 - 39

4.6 CAD Import

Externally created placement files (e.g. files created on CAD systems, PPS systems, in databases, etc.) can

be easily adapted to the SIPLACE format with the aid of the user interface of the „CAD Import“ program.

The "CAD Import" program makes a distinction between two modes:

Conversion mode

(default mode)

Filters are used as the basis for the data import in the

Conversion mode

Filter editing mode

The filters required for the determination of the required placement data from the files to be converted,

can be created or modified in the

Filter editing mode

When converting the placement data, a cluster size is calculated from the placement positions located at the

outermost positions. This cluster size can be changed to its actual size in a separate window of CAD Import.

In addition, the preset coordinate system can also be changed.

To display the PCB structure created from the converted and modified placement data, the graphics function

provided in the user interface of CAD Import is used.

4.6.1 Prerequisites/Preparatory Steps for the Import of Externally

Created Placement Files

- The placement file (CAD data file) must be available in the ASCII format.

- The name of the file must end with the suffix .cad.

- The file must be copied to the Master data/CAD-Bibliothek directory (see section 4.3.4.1).

- Each data line of a placement position must minimally contain the following PP data:

the component name,

the x and y-coordinates

the placement angle
