8 Product / PCB User Manual Line Computer UNIX
8.1 PCB Editor Software Version 501.xx 01/99 Issue
8 - 14
- Copying a partial PCB structure together with the corresponding PCB type
This command serves to copy all data of the partial structure. A new partial structure containing a
cross-reference to a new PCB type is generated.
● Activate icon .
● Select PCB type in which the copied PCB type is to be contained.
● Select PCB type to be copied.
The dialog box for entering the name is displayed.
● Enter the name and confirm with OK.
Copying a partial PCB structure together with corresponding PCB type, or an overall PCB structure, into
another (loaded) PCB structure
● Activate icon .
● Load the PCB with the structure to be copied via FILE --> Open....
● In the window which is opened first click on the PCB type (target) which is to contain the copied
structure.
● Select the PCB type to be copied (source) in the second window.
● Enter name in the dialog box displayed and confirm with OK.
The copied structure is now inserted into the existing PCB structure.
- Duplicating a partial PCB structure
This command serves to generate a new partial PCB structure containing a cross-reference to a PCB
type sharing common features with other partial PCB structures. The new PCB differs from this source
PCB type only in that its coordinates are different. All other data are identical.
● Activate icon .
● Select target PCB type.
● Select source PCB type
The dialog box for entering the name is displayed.
● Enter the name and confirm with OK.
User Manual Line Computer UNIX 8 Product / PCB
Software Version 501.xx 01/99 Issue 8.1 PCB Editor
8 - 15
- Moving a partial PCB structure with corresponding PCB type
This command serves to move a partial PCB structure, together with a cross-reference to a PCB type,
within a given PCB structure.
● Activate icon .
● Select target PCB type where partial PCB structure is to be moved to.
● Select source PCB type containing the partial PCB structure to be moved.
The partial PCB structure - appended to the target PCB type - is shown in the display area.
- Deleting a partial PCB structure
● Activate icon .
● Select PCB structure with a mouse-click.
The partial PCB structure is deleted (without confirmation!).
CAUTION
"Delete" is to be deactivated by selecting another command, as otherwise all other PCB types that are
subsequently clicked on will also be deleted.
8 Product / PCB User Manual Line Computer UNIX
8.1 PCB Editor Software Version 501.xx 01/99 Issue
8 - 16
8.1.3.4 Setting Area of Structure Editor (Graphic Mode)
- For a better visualization of the PCB in the display area, a zoom factor (10 - 999%) can be entered in the
editing field of the setting area, with the factor "100" corresponding to reality.
- The remaining display options are symbolized by icons (see Fig. 8.1.6). The desired setting can be achie-
ved by activating an icon (see the description below).

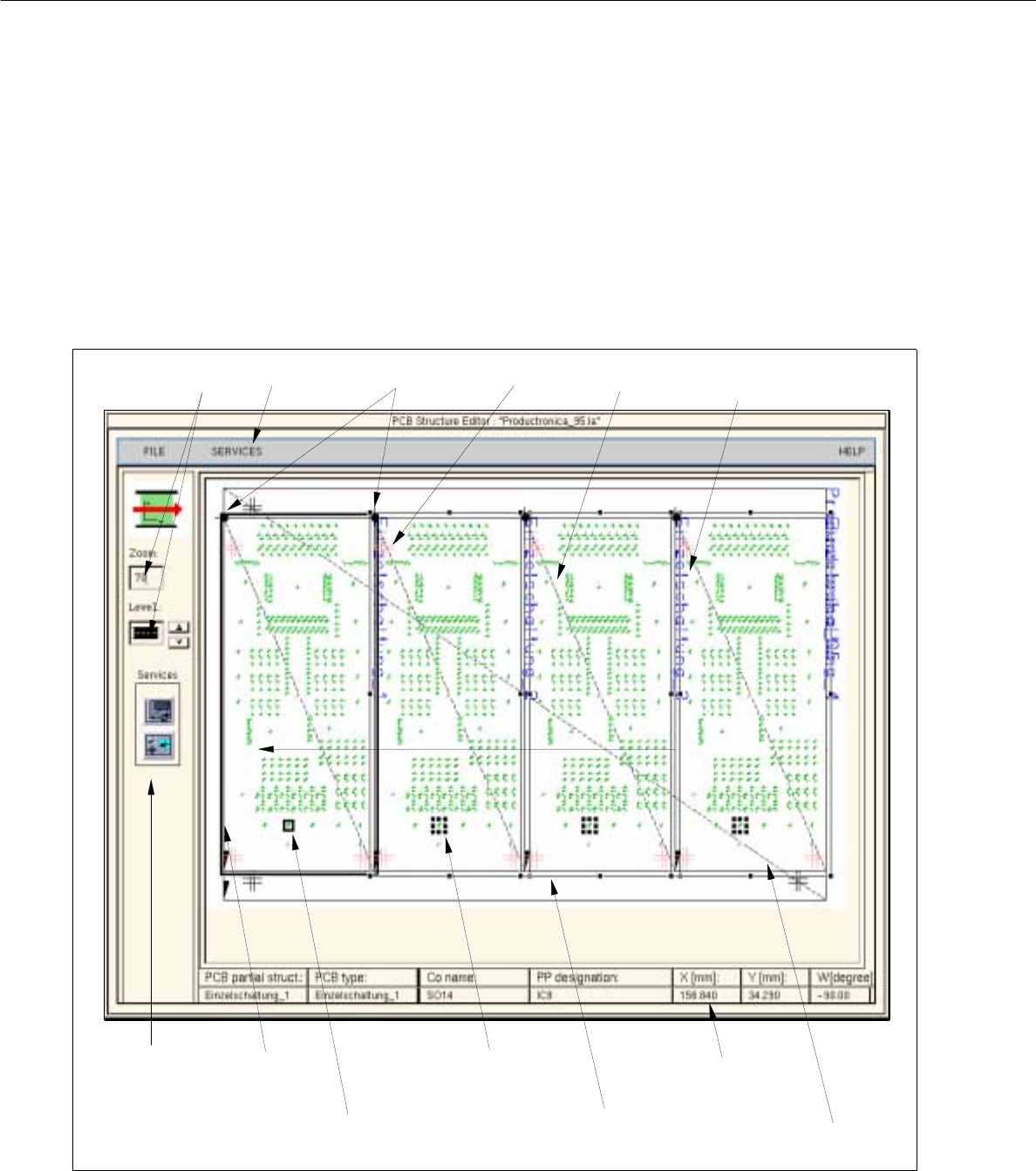

Fig. 8.1.6 Main Window "Structure Editor" ("Graphic Mode" Display)
PCB
dimensional vector
setting area
menu bar name of the PCB
substructure
selected placement
position (PP)
offset vector
PCB zero points
editing fields
fiducial
x-axis (+)
outline (dimensions)
of the PCB
data of the selected
placement position
placement pos.
linked to the selected
placement pos.
