User Manual Line Computer UNIX 13 Production Tools / Set-Up Software Version 501.xx 01/99 Issue 13.1 Set-Up Editor (Feeder Part and WPC Editors) 13 - 3 Fig. 13.1.2 Main Window of Feeder Part Editor The main wi ndow of th…

13 Production Tools / Set-Up User Manual Line Computer UNIX

13.1 Set-Up Editor (Feeder Part and WPC Editors) Software Version 501.xx 01/99 Issue

13 - 2

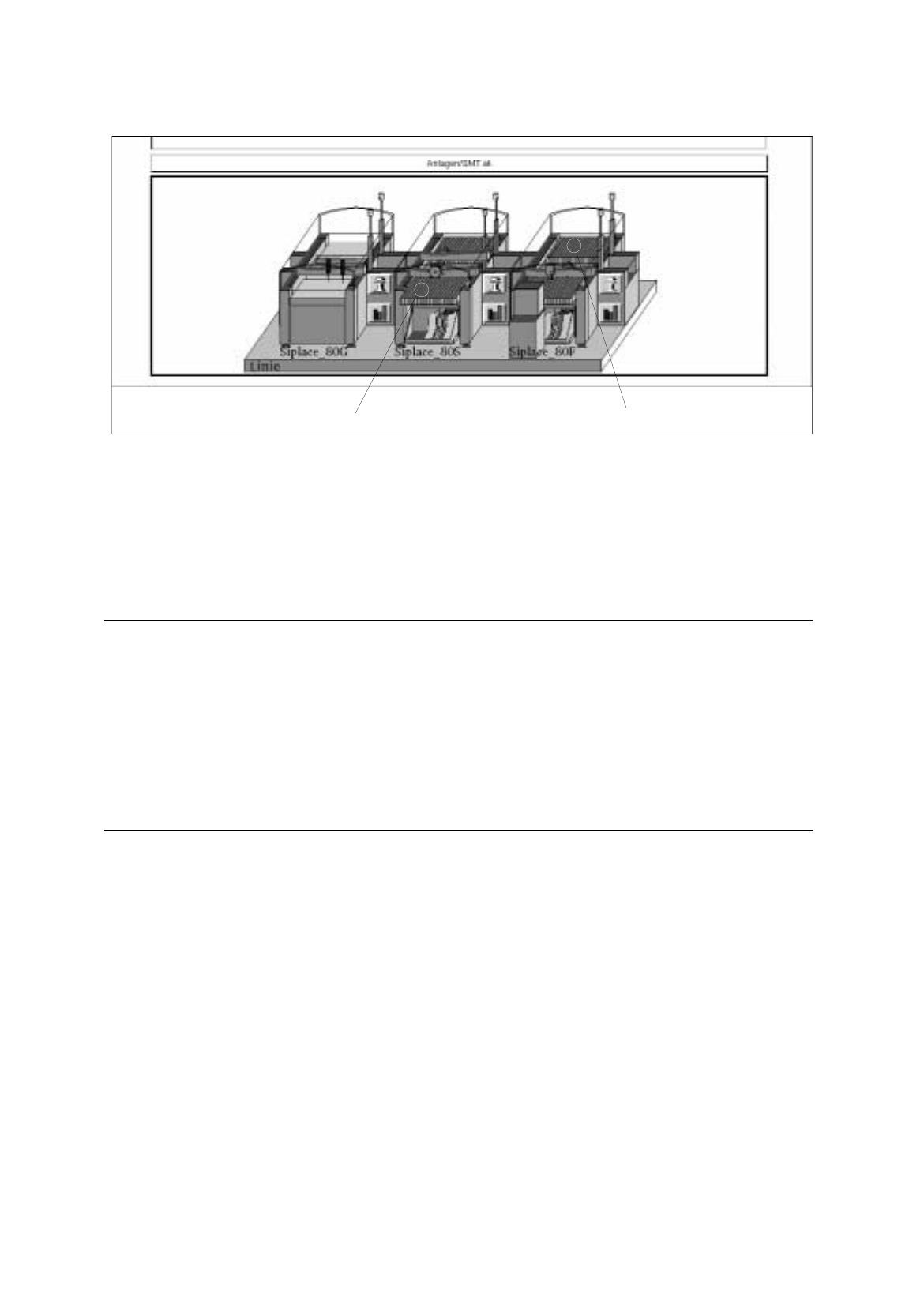

Fig. 13.1.1 Starting the Feeder Part Editor

●

Click on a feeder part of the station highlighted in green.

The FSB containing the file selection "Set-up selection" is opened.

●

Select a set-up from the list or enter a name (xx.ar), click on OK.

The Feeder Part Editor opens.

NOTE

The Feeder Part Editor is opened for the selected station, i.e. for the feeder part that was clicked on.

It is possible to switch between the feeder parts of a station.

To edit the feeder parts of another station of a line, the Feeder Part Editor must be opened anew for

the station concerned.

It is possible to work on several lines simultaneously.

If the Feeder Part Editor of the selected station has already been opened, the same will be displayed,

the appropriate feeder part may have to be switched to.

13.1.1.2 Main Window of Feeder Part Editor

The Feeder Part Editor is opened for the feeder part of a station that was clicked on upon starting the editor.

If a set-up has already been defined, the feeders are displayed on their defined tracks and the waffle-pack trays

on the respective waffle-pack tray carriers. If no set-up has been defined, only the empty tracks are displayed

(see Fig. 13.1.2).

Set-ups that were defined in the Set-Up Editor can be changed in the Set-Up Editor at any time.

If, however, fixed set-ups were configured upon configuring the station, these cannot be changed in the Set-

Up Editor. These can only be changed in the Station Configuration (see chapt. 12). This should, however, only

be done in exceptional cases.

feeder part, ri

ht feeder part, left

User Manual Line Computer UNIX 13 Production Tools / Set-Up

Software Version 501.xx 01/99 Issue 13.1 Set-Up Editor (Feeder Part and WPC Editors)

13 - 3

Fig. 13.1.2 Main Window of Feeder Part Editor

The main window of the Feeder Part Editor is subdivided into the following areas:

Menu bar

Command area "View"

Command area "Lists"

Command area "Action"

Display area

Filter field "Component filter"

Selection field "Components"

menu bar filter field selection field

"Components"

command

feeder track

division 2

track number

name of the

command

area "Lists"

spherical

cap

displa

area

"Component filter"

(

8mm-tape feeder, electr.

)

command

area "View"

area "Action"

component set up

division 1

13 Production Tools / Set-Up User Manual Line Computer UNIX

13.1 Set-Up Editor (Feeder Part and WPC Editors) Software Version 501.xx 01/99 Issue

13 - 4

Menu Bar

The menu bar contains the menus "FILE", "SERVICES", "EDIT", "OPTIONS" and "HELP".

The "SERVICES" menu is described in section 13.1.3, the "EDIT" menu in section 13.1.4.

NOTE

The functions and the operation of the menus "FILE", "OPTIONS" and "HELP" are similar to those of other

application programs of the line computer and are described in detail in chapt. 2 "General Information on

Using the Program".

Command area "View"

( HS-50 / PA1 PA 2 )

In this command area, the icons for the left and right feeder parts are displayed. By clicking on the icons it is

possible to switch from the display area of one feeder part to the other feeder part of a station.

The upper icon refers to the left feeder part, the lower icon to the right feeder part. The arrow reflects the direction

of travel.

The icon corresponding to the current feeder part is highlighted in each case.

NOTE

If the Feeder Part Editor is opened for an HS-50, icons for the left and right feeder parts are displayed for each

of the two processing areas (PA).

Command area "Lists"

In this command area the "Feeder list" icon is displayed by means of which the feeder list can be opened. In

the feeder list all possible feeders, modules, waffle-pack trays and waffle-pack tray carriers are contained. They

can be selected individually and allocated to the tracks in the display area of the main window.

Moreover, the feeder list can be opened from the FILE menu by means of the "Feeder list" option.

For a detailed description refer to section 13.1.3.1.

Command area "Action"

In this command area the icons are displayed by means of which the following actions can be executed:

selecting

creating

deleting

moving

A detailed description of the icons is contained in section 13.1.5.
