● Close the File Display main window by selecting the FILE --> Quit menu option.
● Click on Cancel in the dialog box.
The dialog box closes.
● Remove the diskette from the floppy drive.
- Conversion of GF-Bibliothek (Package Form Library)
This menu option serves to either check the entire GF-Bibliothek for any entries that may have to be
changed, or to supplement the standard SIEMENS library range and/or the entire GF-Bibliothek by
adding the entries for the standard configurations of nozzle and sensor system types.
NOTE
Individual GF-files can be converted with the aid of the Data Manager (see chapt. 4,
section 4.3.4.5)
● Click on OPTIONS --> GF-Handling --> Convert GF-Bibliothek.
The dialog box shown below opens.
Selection Options
- Check only
This option serves to check the entire GF-Bibliothek. During this check it is determined which entries
relating to standard configurations of nozzle and sensor system types have to be changed in the
respective GF-files.
The result of the check is entered in the "GF-Convert.log" file and can be viewed using the file display
function (see page 3 - 17).
User Manual Line Computer UNIX 3 Desktop (Root Window)
Software Version 501.xx 01/99 Issue 3.2 Desktop User Interface
3 - 17
- Convert the standard Siemens library range only
The standard configurations of nozzle and sensor system types that may still be missing will be
entered in all GF-files contained in the GF-Bibliothek within the range from 1 through 1499.
- Convert entire GF-Bibliothek
The standard configurations of nozzle and sensor system types that may still be missing will be
entered in all GF-files contained in the GF-Bibliothek.
Procedure:
● Click on the button associated with the desired option.
● Click on OK.
The checking process or conversion, respectively, starts.

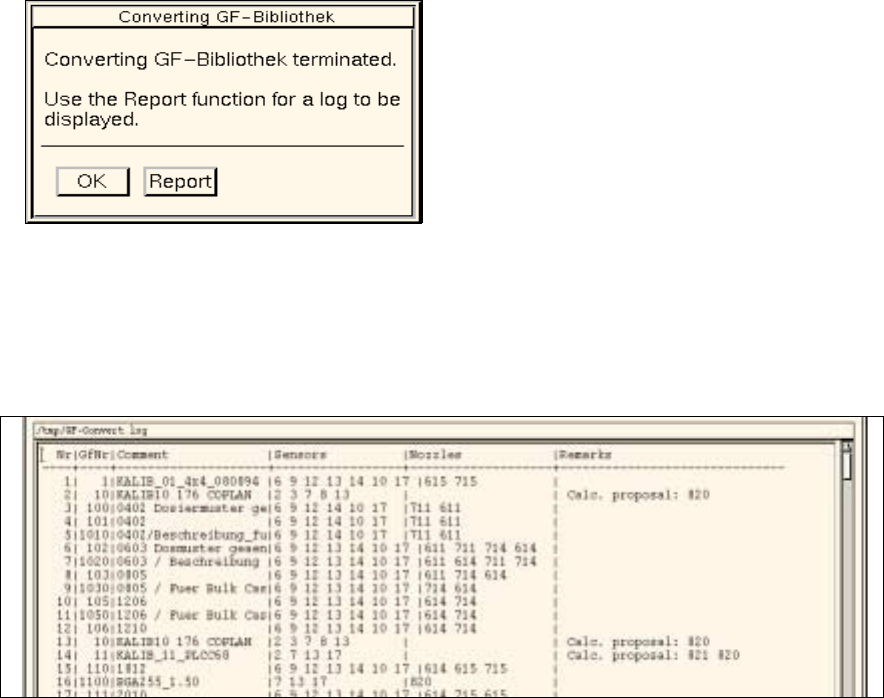

When the action has been completed, the following dialog box is displayed.
Use the Report button if you wish to view the result of the check or conversion.
● Click on Report in the dialog box.
The main window of the File Display function opens. The contents of the "GF-Convert.log" log file
are displayed in the view area.
● Close the main window of File Display using the menu option FILE --> Exit.
● Click on OK in the dialog box.
The dialog box closes.
● Click on Cancel in the dialog window.
The dialog window closes.
3 Desktop (Root Window) User Manual Line Computer UNIX
3.2 Desktop User Interface Software Version 501.xx 01/99 Issue
3 - 18
- Replace GF-number
Following any changes in the GF library, this menu option is used to replace the GF number
associated with given components with a different one.
● Click on OPTIONS --> Replace GF-number.

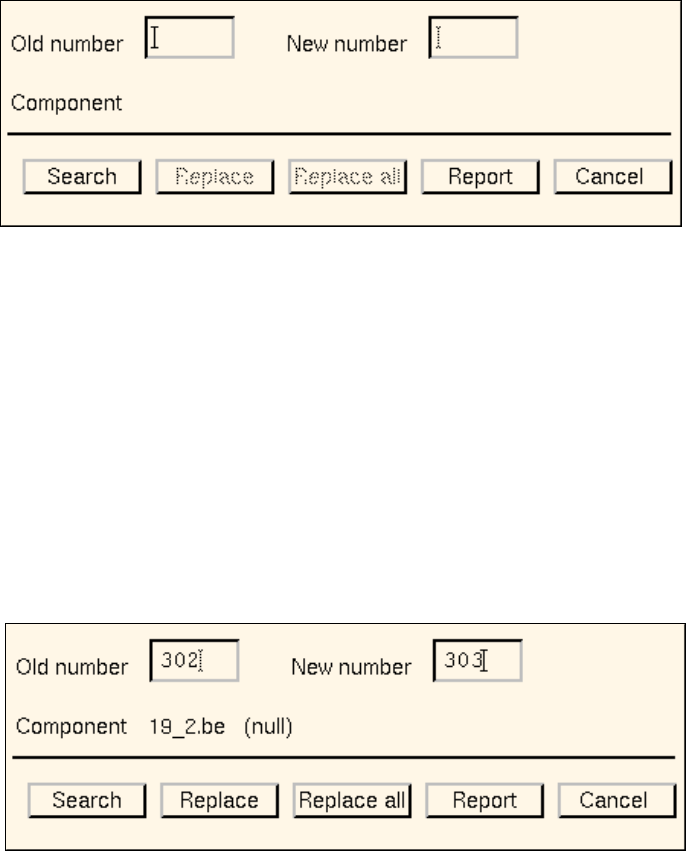

The following dialog box opens.
Procedure:
● In the "Old number" editing field enter the GF number that is to be replaced.
● In the "New number" editing field enter the GF number that is to replace the old number.
● Click on the Search button.
The file name of the first component found that is associated with the GF number entered under
"Old number" is displayed next to the "Component" entry. In addition, the comment that may have
been entered in the Component Editor for the component concerned is displayed next to the file
name.
● Click on the Replace button.
The old GF number is replaced with the new GF number in the component file displayed, and the
search for the next matching component is started.
Or else:
● Click on the Replace all button.
