Display area
In the display area, the feeder part of a station with the individual tracks is displayed symbolically (see
Fig. 13.1.2).
If feeders or waffle-pack trays have already been defined for the feeder part displayed, these will be displayed
on their respective tracks when the Feeder Part Editor is opened.
The tracks are displayed in gray and white. The black dots symbolize the spherical caps of the feeder part.
The track number is indicated at the right edge of the feeder part. By moving the lower scroll bar toward the
right this area becomes visible.
The feeders are represented in gray with blue contours. The divisions are shown as small boxes.
If components have already been defined, the names of the components are displayed at the right edge.
At the upper and lower border of the feeder part six tracks each are highlighted in green, they are located outside
the normal feeder part. This area can only be occupied on an HS180 machine, and only by the component
camera.
Filter field "Component filter"
In the "Component filter" field it is possible to limit the list of components contained in the "Components" selection
field. This may be useful when searching for a given component. When so doing, a character string is to be
entered and subsequently the Enter key to be pressed. The "*" character serves as wildcard character and
stands for any other characters, whatever they may be.
Examples: *6
Only components whose last character is a
6
are displayed.
13*
Only components whose first characters are
13
are displayed.
*
All components are displayed.
If a filter was entered which limits the selection too much, the result may also be an empty list. In this case,
more characters must be added to the previously entered filter.
Selection field "Components"
All defined components are listed in the selection field "Components". Moving the scroll car allows components
to be displayed that are located further down on the list. By means of the component filter the display can be
limited to given components.
If the component library is modified in the Data Manager while the Set-Up Editor is open, these changes are
not automatically transferred to the open Set-Up Editor. Only when the editor is closed and re-started, will the
changes be adopted.
13.1.2 WPC Editor
The WPC Editor is used for the creation of set-ups for a Waffle-Pack Changer.
13 Production Tools / Set-Up User Manual Line Computer UNIX
13.1 Set-Up Editor (Feeder Part and WPC Editors) Software Version 501.xx 01/99 Issue
13 - 6
13.1.2.1 Starting the WPC Editor
The WPC Editor is started from the desktop by clicking on a Waffle-Pack Changer (see Fig. 13.1.3).

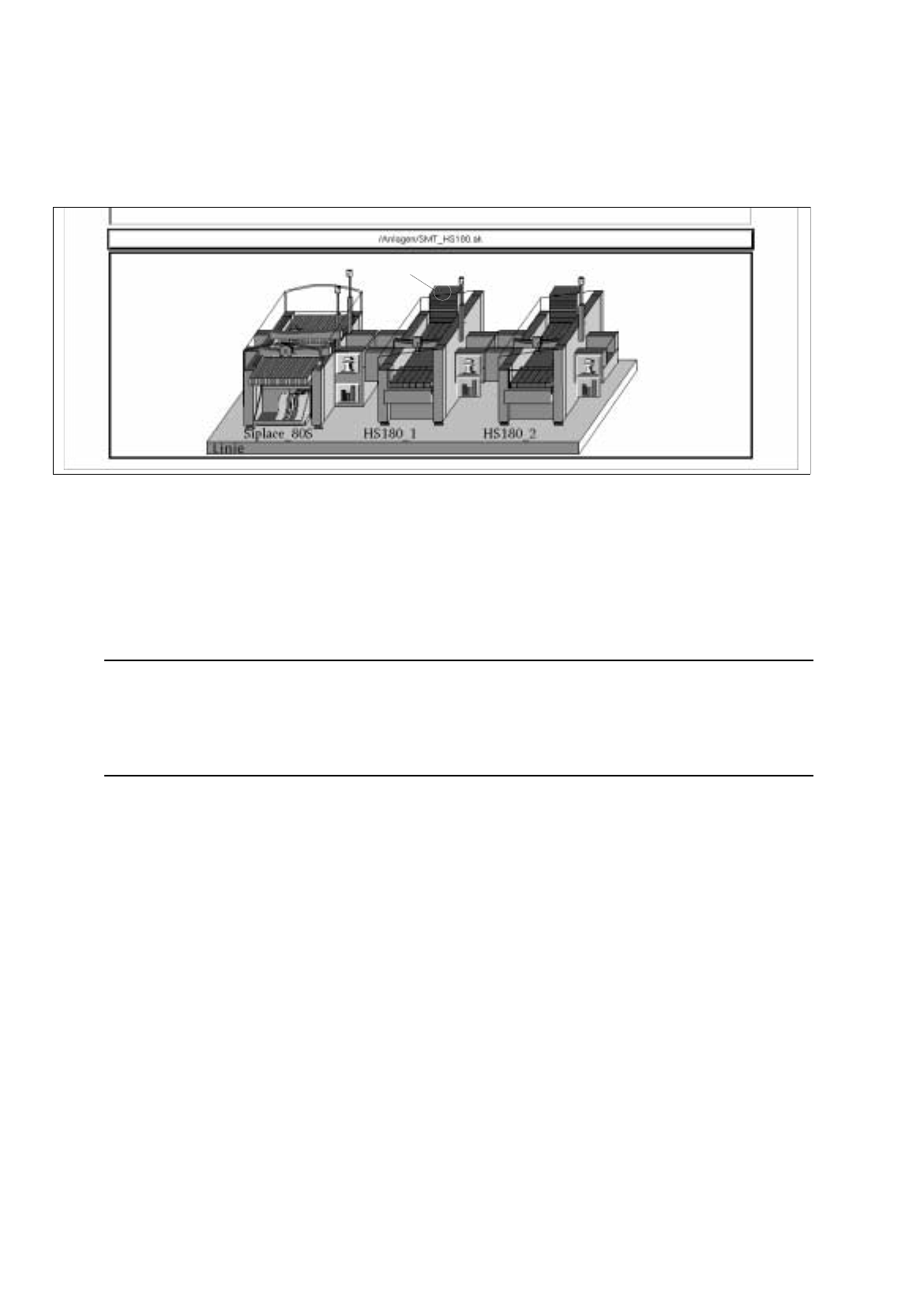

Fig. 13.1.3 Starting the WPC Editor
●
Click on the Waffle-Pack Changer.
The FSB containing the file selection "Set-up selection" is opened.
●
Select a set-up from the list or enter a name (xx.ar), click on OK.
The WPC Editor is opened.
NOTE
The WPC Editor is opened for the selected Waffle-Pack Changer. To edit the set-up of another
Waffle-Pack Changer on the line, the WPC Editor for this Waffle-Pack Changer must also be
opened.
13.1.2.2 Main Window of WPC Editor
The WPC Editor is opened for the Waffle-Pack Changer that was clicked on upon starting. Upon opening, the
first level is always displayed.
If waffle-pack trays have already been defined, these are displayed at the individual levels in the display area
"Levels". By clicking on the individual levels, they are displayed in the "WPC" display area (see Fig. 13.1.4).
virtual level
User Manual Line Computer UNIX 13 Production Tools / Set-Up
Software Version 501.xx 01/99 Issue 13.1 Set-Up Editor (Feeder Part and WPC Editors)
13 - 7

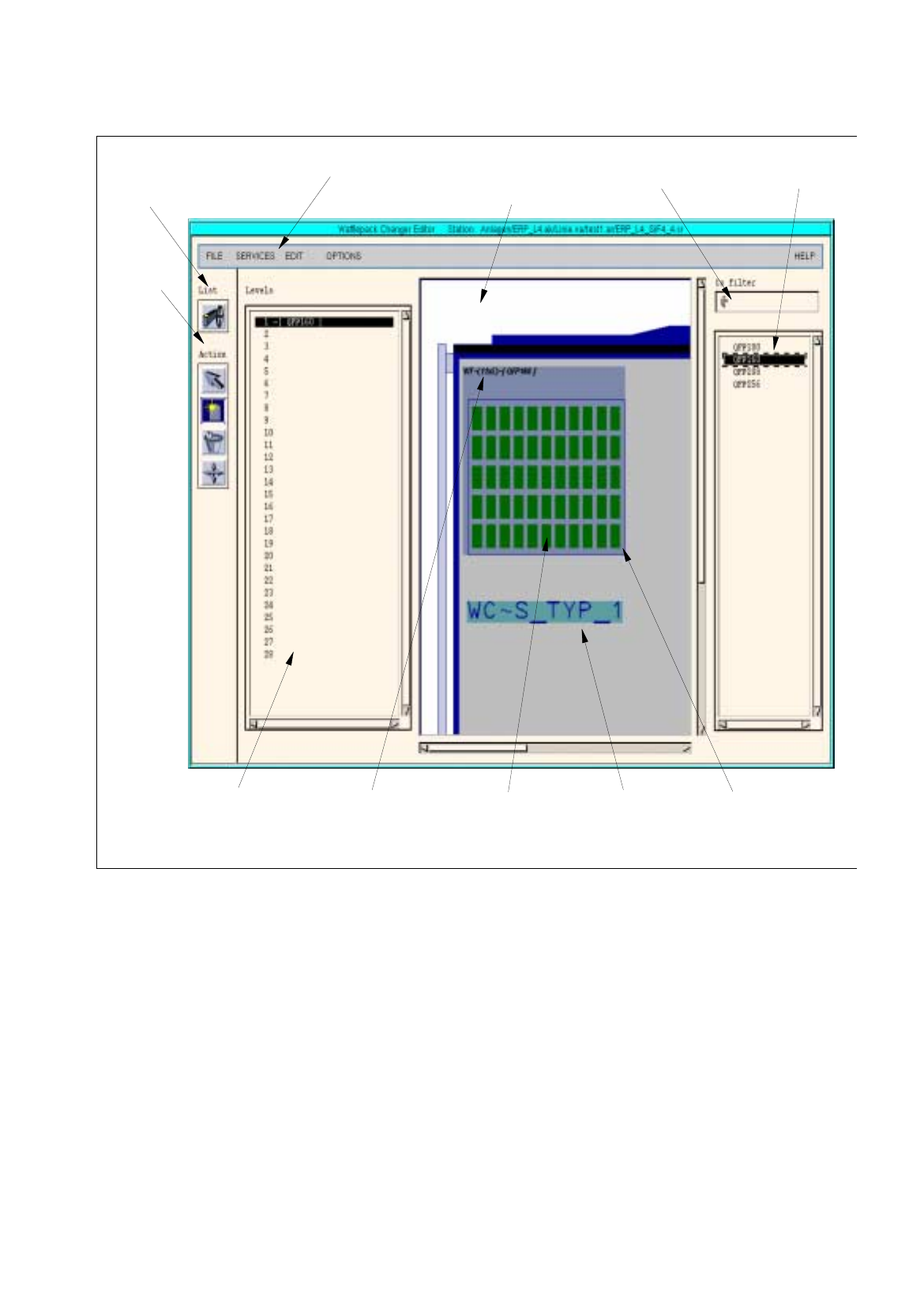

Fig. 13.1.4 Main Window of WPC Editor
The main window of the WPC Editor is subdivided into the following areas:
-
Menu bar
-
Command area "Lists"
-
Command area "Action"
-
Display area "Levels"
-
Display area "WPC"
-
Filter field "Component filter"
-
Selection field "Components"
selection field
"Components"
filter field
"Component filter"
menu bar
command
area "Lists"
command
area
"Action"
displa
y
area
"Levels"
Entr
y
of spacin
g
waffle-pack
tra
y
carrier
waffle-pack tra
y
displa
y
area
(
level 1
)
division of the
waffle-pack tra
y
(
here: 11x5
)
and
component
(
here: QFP160
)
