1 Introduction

1.1 Overview

The FlexTRAK-OH System is a fully integrated plasma process and material handling system. The

FlexTRAK-OH System supports high-speed manufacturing of lead frames and substrates. The system

provides maximum performance and flexibility for etching, surface modification, and cleaning of

substrate material for applications such as adhesion promotion and contamination removal. The system

operates in both automatic and manual modes, with a multi-processing feature, which allows you to run

single or multiple recipes in one operation.

This manual is specific to the FlexTRAK-OH material handling system and describes all system controls,

user-level hardware, interfaces, screens, and menus, along with their associated operating procedures. It

also includes instructions on transportation, installation, troubleshooting, and machine maintenance. Refer

to the FlexTRAK Series Plasma Systems Installation, Operation, and Maintenance Manual for specific

information regarding the FlexTRAK-S system.

This section covers the following topics:

• General Description

• FlexTRAK-OH Features

• Material Handling System (MHS) Components

• Strip Dimensions and Identification

• Magazine Dimensions

• General Operation Flow

1.2 Safety First

Operation of your FlexTRAK-OH Material Handler involves mechanical devices, air pressure, and

electrical power. It is essential that every person servicing or operating the FlexTRAK-OH fully

understands all hazards, risks, and safety precautions. When properly operated and maintained, the

FlexTRAK-OH Material Handler should be safe and reliable. Refer to Section 2 - Safety prior to

installation and operation

1.3 General Description

The FlexTRAK-OH consists of a standard base FlexTRAK-S system and an integrated material handling

system. The FlexTRAK-OH includes features such as a patented plasma chamber design providing

exceptional etch, uniformity, and process repeatability. For stand-alone plasma cleaning applications,

these material handlers are designed to automatically feed strips in and out of the FlexTRAK-S system.

The FlexTRAK-OH’s Material Handling System (MHS) transfers untreated strips from magazine to the

FlexTRAK-S plasma processing chamber, and then returns treated strips to magazine. The MHS can be

operated in automatic mode or in manual mode.

The system utilizes the standard FlexTRAK software integrated with specially designed material handling

software for the SHS Material Handler. The software features a user-friendly human machine interface

(HMI) that includes touch screen features. See Section 4 - Material Handler Operation for further details.

FlexTRAK-OH Material Handling System IOM Manual Introduction

1.4 FlexTRAK-OH Features

1.4.1 Front View Features

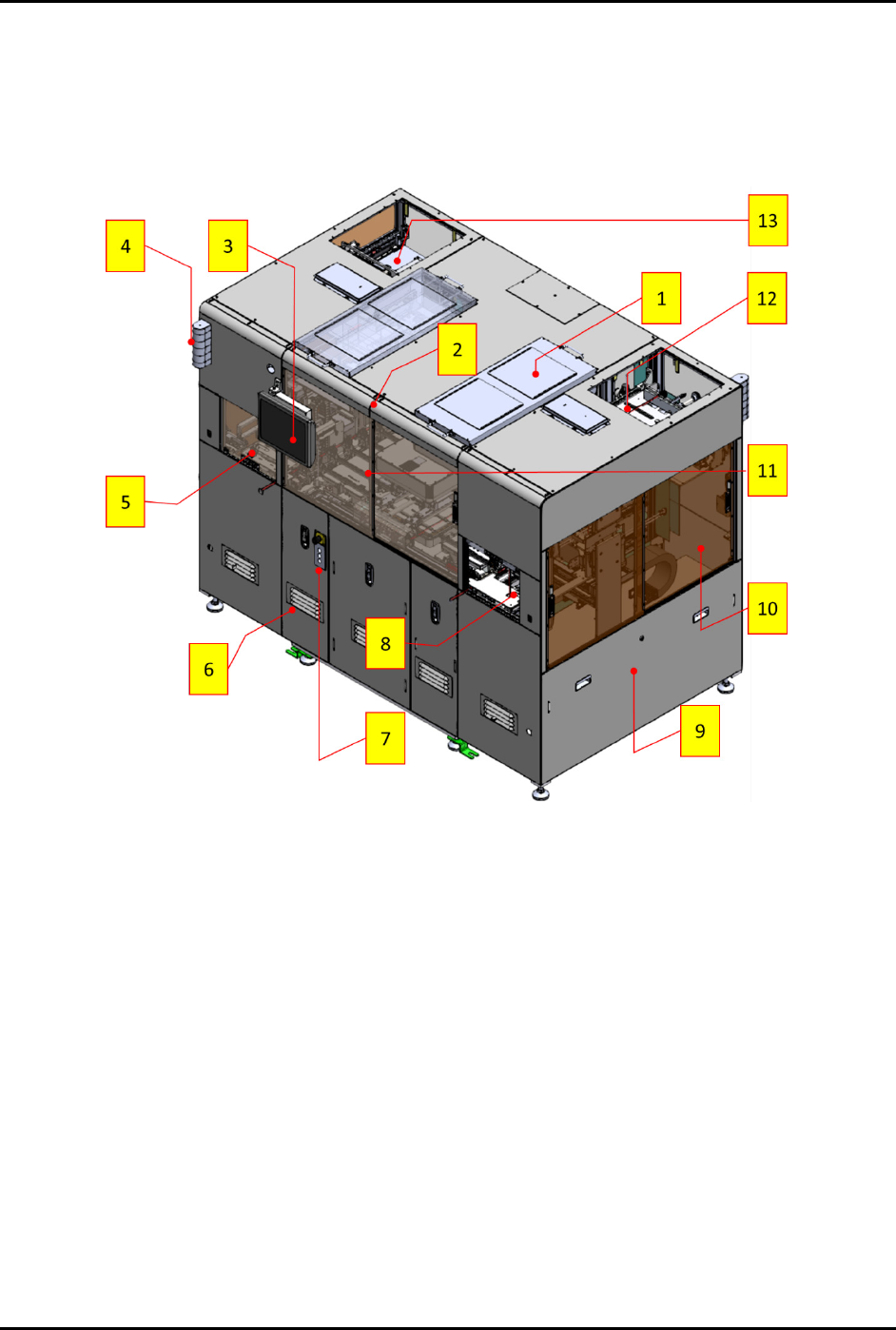

Front view features are shown in Figure 1-1. The callout numbers in the illustration correspond to the

item numbers in Table 1-1.

Figure 1-1 Front View Features
