FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-29
7.11.3 Structure and Cover Assembly
7.11.3.1 List 1
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.04.EB.4700 0001-10006-00029 PRESSURE SENSOR R1/8" 1,000,000 1

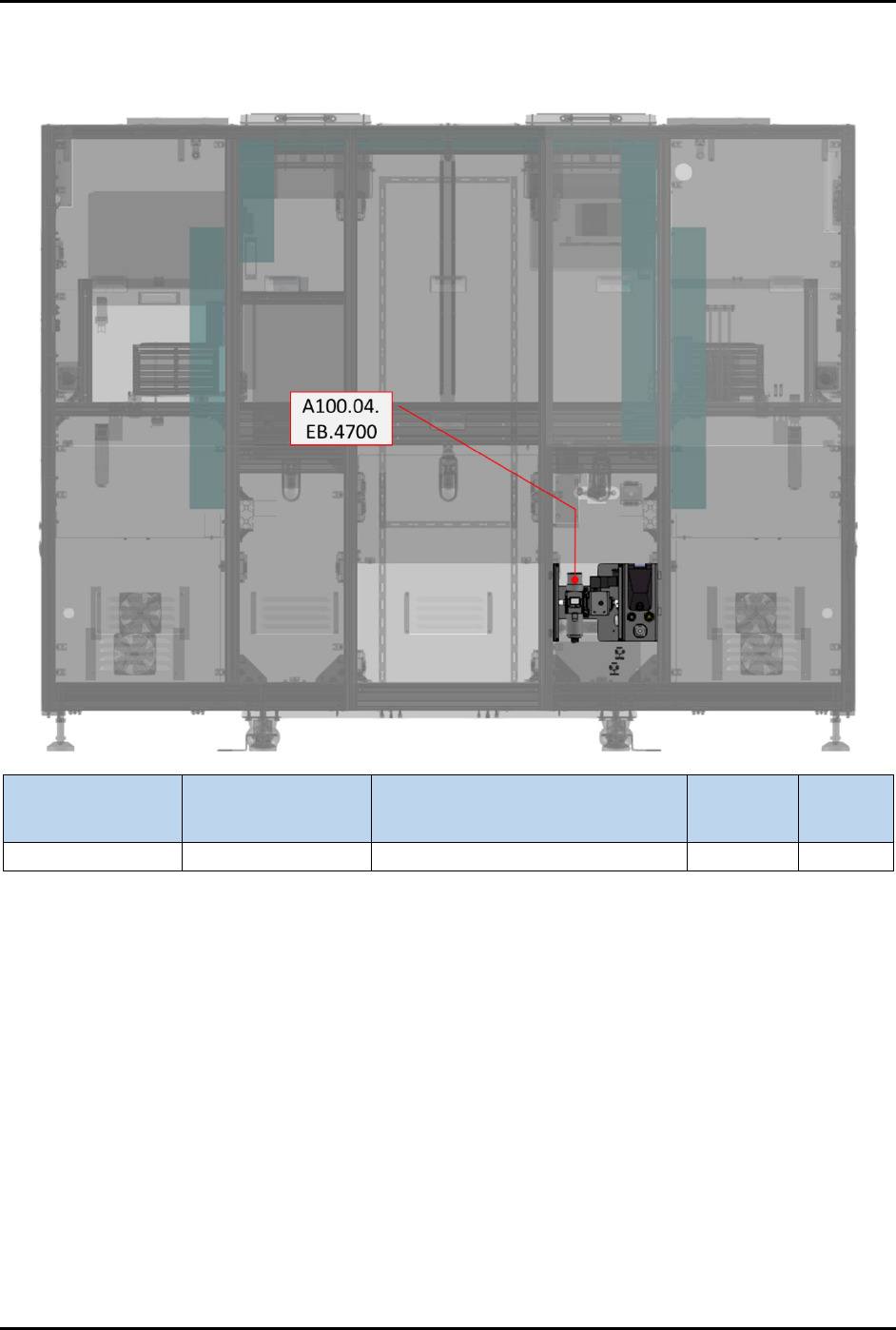

Figure 7-26 Structure and Cover Assembly List 1
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-30 © 2023 Nordson Corporation
7.11.3.2 List 2
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.EB.6800 0001-10024-00011 STANDARD FIBER AMPLIFIER 500,000 1
A100.07.EB.6400 0002-01001-00278 OMRON SAFETY DOOR SWITCH 1,000,000 1
A100.07.EB.6800 0001-10007-00099 PROXIMITY SENSOR 1,000,000 1
A100.07.EB.6800 0001-10009-00075
FIBER OPTIC SENSOR,
REFLECTIVE
1,000,000 1
Figure 7-27 Structure and Cover Assembly List 2
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-31
7.11.3.3 List 3
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.EB.6600 0002-01001-00280 SAFETY SWITCH KEY 1,000,000 1
A100.07.EB.6700 0001-10005-00204 COMPACT PHOTOELECTRIC SENSOR 1,000,000 1
Figure 7-28 Structure and Cover Assembly List 3
