FlexTRAK-OH Material Handli ng System IOM Manual Parts Replacement 7-52 © 2023 Nordson C orporation 7.12.2.2 DC Panel 1. 1 No. Part Numb er Description Estimated Li fe Span (cycles) Quantity 1 0002 - 14013 - 00059 OPTO C…
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-51
7.12.2.1 DC Panel 1.0
No. Part Number Description
Estimated Life
Span (cycles)
Quantity
1 0002-01014-00046
INDUSTRIAL UNMANAGED|ECO
SWITCH; 8- PORT
1 year 1
2 0002-14014-00034 OMRON NJ 16 MOTION AXIZ PLC 1 year 1
3 0002-14014-00035 OMRON PLC POWER SUPPLY UNIT 1 year 1
4 0002-14013-00015 OMRON PLC 16 POINTS INPUT UNIT 1 year 1
5 0002-14013-00065 OMRON PLC 16 POINTS OUTPUT UNIT 1 year 1
Figure 7-48 DC Panel 1.0
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-52 © 2023 Nordson Corporation
7.12.2.2 DC Panel 1.1
No. Part Number Description
Estimated Life
Span (cycles)
Quantity
1 0002-14013-00059
OPTO COUPLE CARD-24VDC, 4 WAYS
D/RAIL M/
100,000 1
2 0002-02008-00009 SAFETY RELAY, PNOZ S4, 3NO/1NC 1,000,000 1
3 0002-02008-00010 SAFETY RELAY, PNOZ S7, 4NO/1NC 1,000,000 1
4 0002-02008-01275 P7SA SERIES OMRON RELAY SOCKET 36,000 1
5 0002-02008-01274 G7SA SERIES OMRON RELAY 36,000 1
6 0002-02001-00104 OMRON RELAY C/W BASE 36,000 1

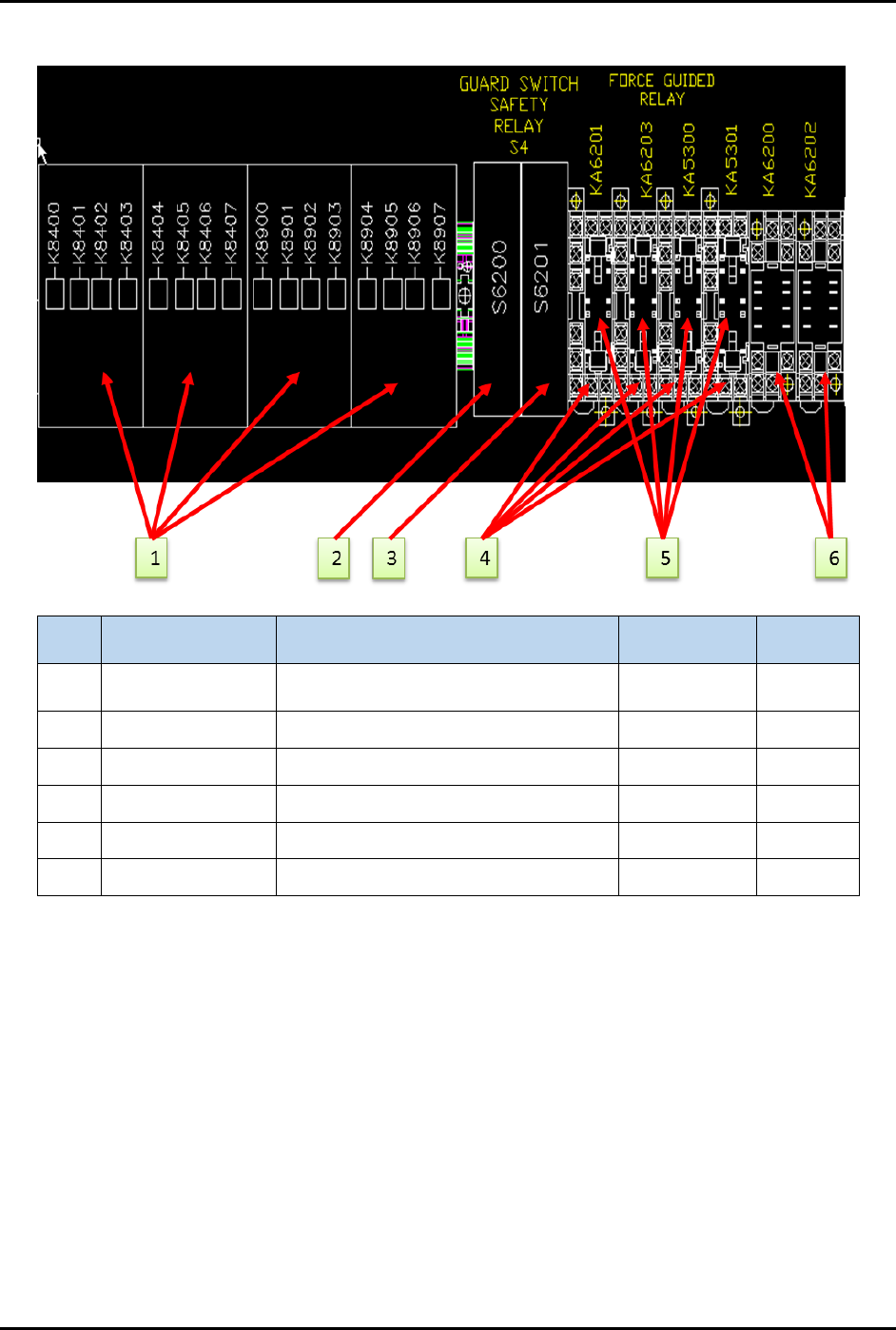

Figure 7-49 DC Panel 1.1
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-53
7.12.2.3 DC Panel 1.2
No. Part Number Description
Estimated Life
Span (cycles)
Quantity
1 0002-01005-00010
24VDC ELECTRONIC OVERLOAD
UNIT,4-CHANNEL, IN:24VDC,
OUT:24V/1-2-4-6ADC, MICO 4.6
1 year 1

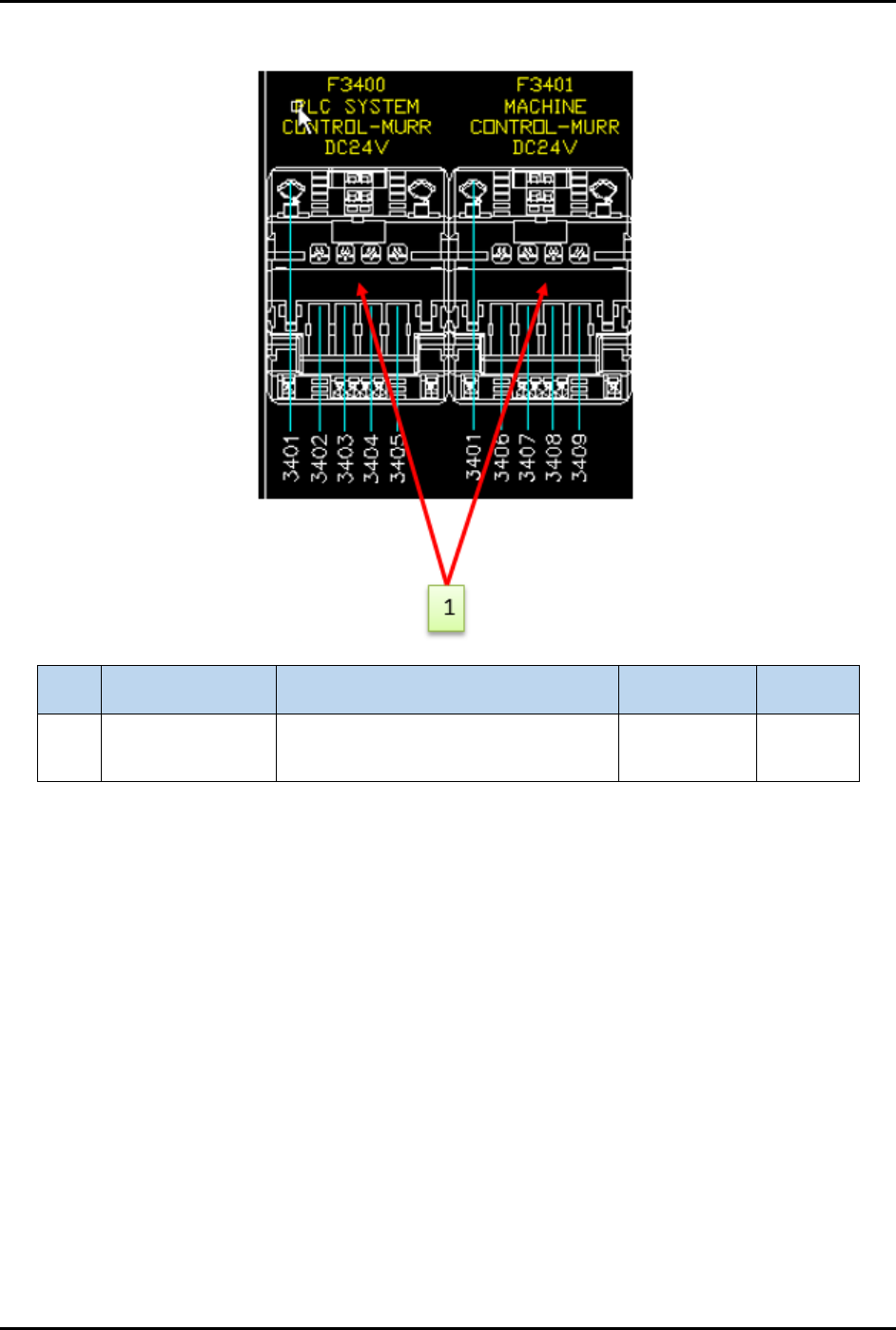

Figure 7-50 DC Panel 1.2
