Table 1-2 Rear View Component Description
Item Name Description
1 Rear Tower Light
The Rear Tower Light indicates machine status and fault
alert through the color indication and audible alarm.
2 EMO (Right)
The Right EMO button cuts machine power at the motor
driver through the safety relay devices. The control
connection is driven by a hardwired configuration. Press the
EMO button during an emergency situation only.
3 Electrical Panel Air Flow Vent
The Electrical Panel Air Flow Vent provides cool air
circulation around the electrical panel compartments.
4
Plasma Process Gas Tube
Fitting
Refer to the FlexTRAK Series Plasma Systems Installation,
Operation, and Maintenance Manual for specific information
regarding the FlexTRAK-S System.
5 Compressed Air Tube Fitting
The Compressed Air Tube Fitting is the main air feeding port
and is connected to the facilities compressed air supply
valve.
6 Ethernet Communication Port
The Ethernet Communication Port provides communication
with the machine Programmable Logic Controller (PLC) for
the system software update.
7
Alternate Current (AC)
Electrical Power Panel
Electrical AC circuit components are assembled inside the
Alternate Current (AC) Electrical Power Panel.
8
Electrical Isolator/Main
Disconnect Switch
The Electrical Isolator/Main Disconnect Switch is the
Lockout/Tagout (LOTO)
point for electrical energy isolation.
9 EMO (Left)
The Left EMO button cuts machine power at the motor
driver through the safety relay devices. The control
connection is driven by a hardwired configuration. Press the
EMO button during an emergency situation only.
10
Compressed Air Main Shut-Off
Valve
The Compressed Air Main Shut-Off Valve is the LOTO point
for the pneumatic energy isolation.
11 Machine Rear Access Panel
The Machine Rear Access Panel provides guarded access
to the machine's rear interior components.
FlexTRAK-OH Material Handling System IOM Manual Introduction
1-6 © 2023 Nordson Corporation
1.5 Material Handling System (MHS) Components
MHS system components are shown in Figure 1-3 through Figure 1-13.
Item
Name
1 Overhead Magazine Loading Port (Stn10)
2
Loader Lifter (Stn20)
3 Strip Loading Buffer (Stn20)
4 Strip Transfer – Loading (Stn30)
5
Strip Transfer – Claw (Stn30)
6
Overhead Return Conveyor (Stn60)
7
Strip Transfer – Unloading (Stn40)
8
Strip Unloading Buffer (Stn40)
9
Unloader Lifter (Stn50)
10
Overhead Magazine Unloading Port (Stn50)

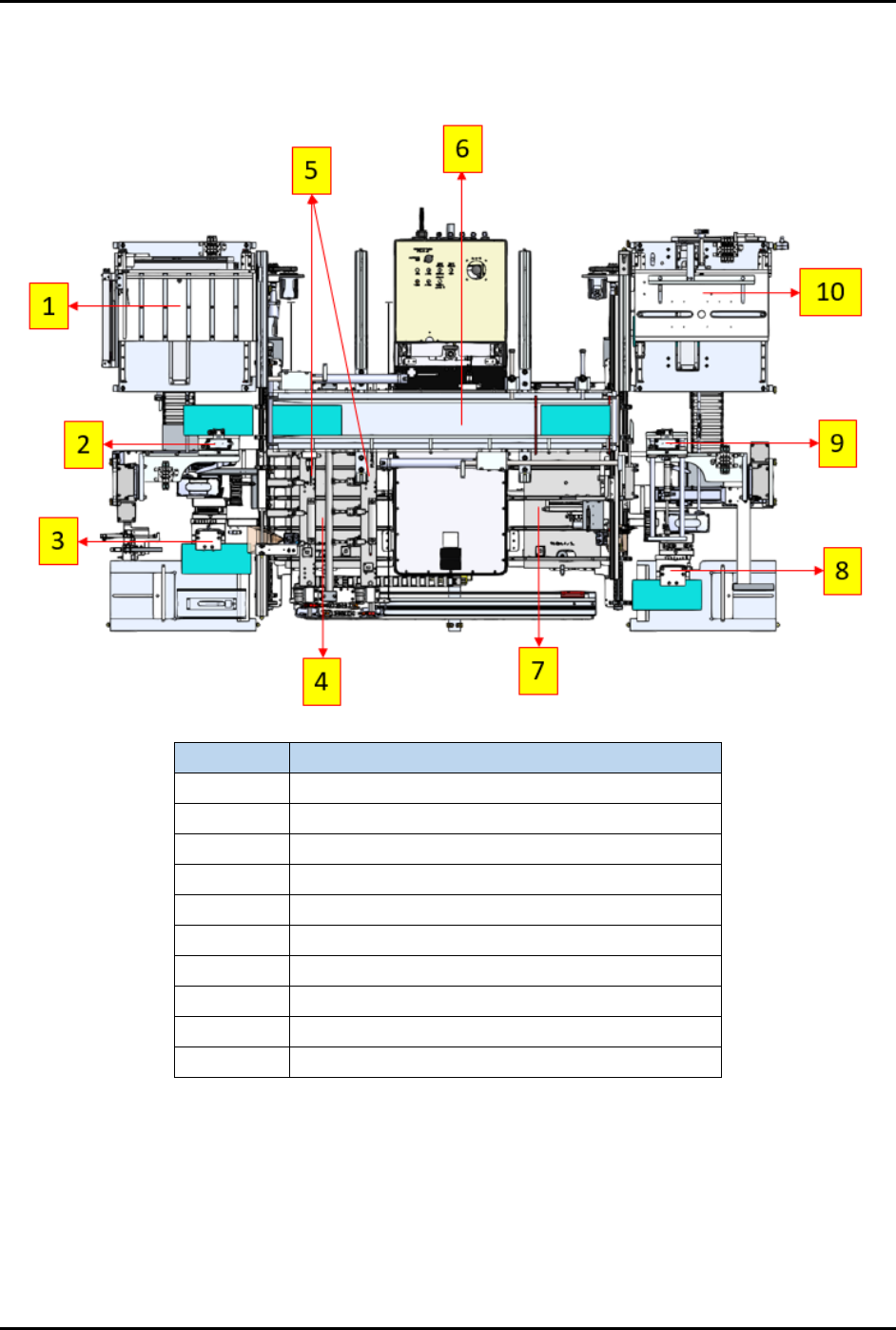

Figure 1-3 Material Handling System Features
FlexTRAK-OH Material Handling System IOM Manual Introduction
© 2023 Nordson Corporation 1-7
1.5.1 Overhead Magazine Loading Port (Stn10)
Item
Name
Description
A Magazine Precisor Datum Point
The Magazine Precisor Datum Point receives an untreated
strip magazine from the overhead conveyor. The precisor
rear pusher (A1) and precisor side pusher (A2) will push the
magazine to magazine transfer cylinder (B).
B Magazine Transfer Cylinder
The Magazine Transfer Cylinder provides a magazine
bridging to transfer the magazine from this module to loader
lifter module (Figure 1-5).

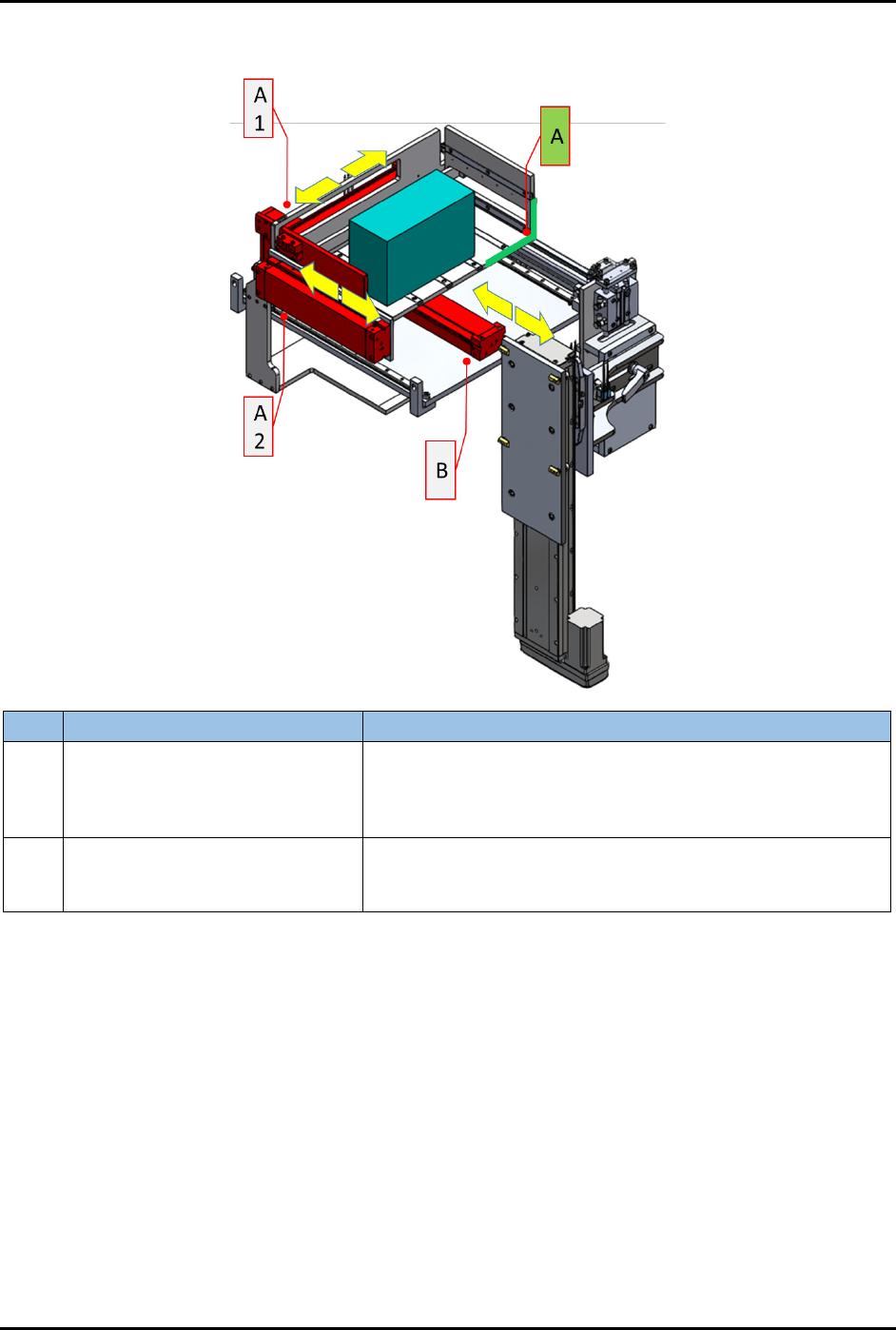

Figure 1-4 Overhead Magazine Loading Port (Stn10)
1.5.2 Loader Lifter (Stn20)
The Loader Lifter provides a magazine elevator motor (lifting up and down) to transfer the magazine
from loading port module to strip loading buffer and overhead return conveyor modules. Refer to 1.5.3
Strip Loading Buffer (Stn20) for further part descriptions in this module.
