FlexTRAK-OH Material Handli ng System IOM Manual Parts Replacement 7-18 © 2023 Nordson C orporation 7.10.6 Overhead Input Port Assembly Assembly Drawin g Number Part Number Descriptio n Estimated Life Span (cycles) Quant…
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-17
7.10.5.2 List 2
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.LA.2000 0001-08008-00726 CLEAN ROOM SINGLE 100,000 1
A100.07.LB.0000 0001-08016-00055 SOLENOID VALVE 5/2 WAY, DIA 6 1,000,000 1
A100.07.LB.0000 0001-08016-00064 SOLENOID VALVE 5/3 WAY, DIA 6 1,000,000 1

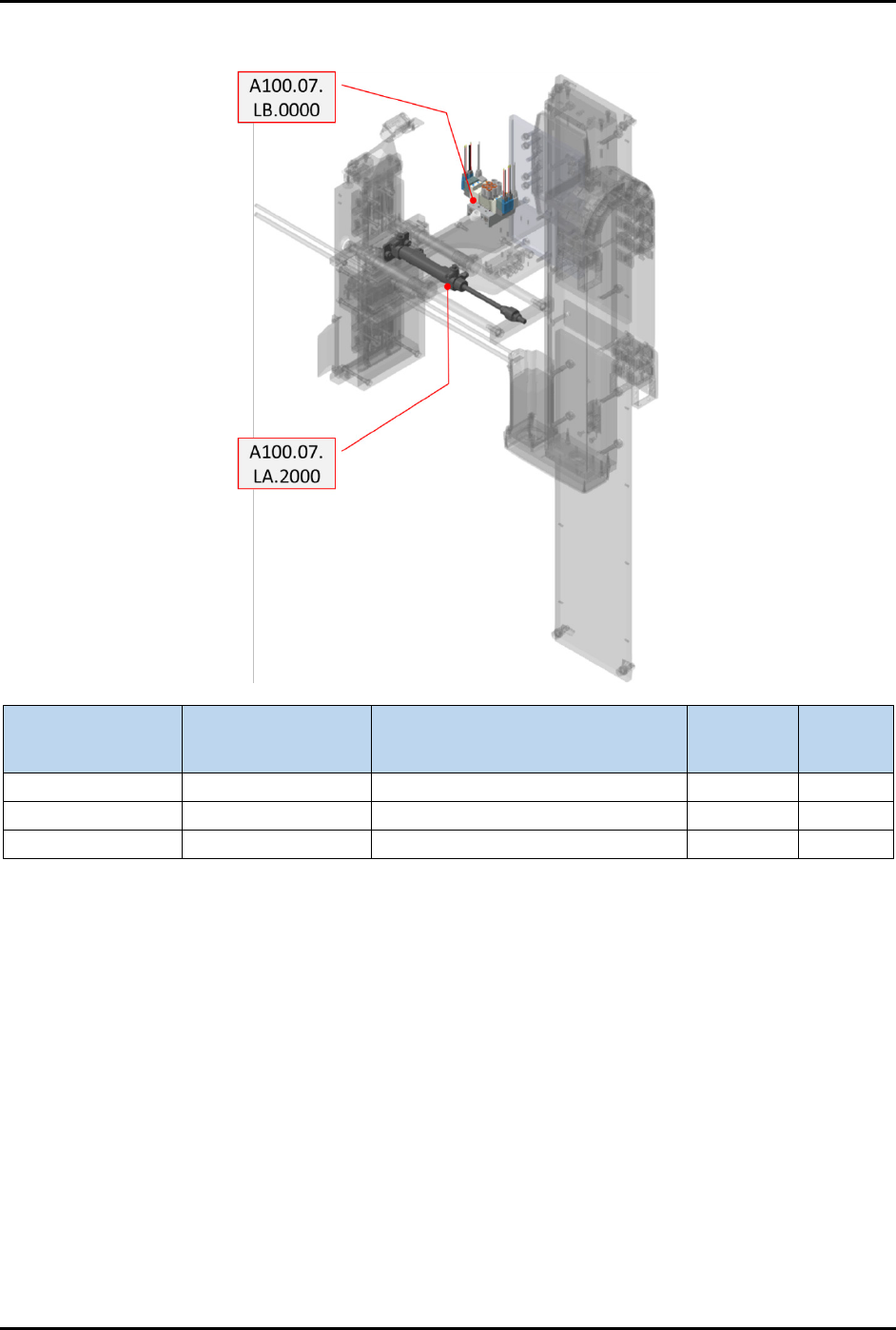

Figure 7-14 Lifter Assembly List 2
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-18 © 2023 Nordson Corporation
7.10.6 Overhead Input Port Assembly
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.GB.3000 0001-08008-00722 CYLINDER 50,000 1
A100.07.GB.4000 0001-08008-00721 CYLINDER 50,000 1
A100.07.GD.1000 0001-08008-00723 CYLINDER 50,000 1
A100.07.GD.0000 0001-04006-00354 LM GUIDE 200,000 1
A100.07.GJ.0000 0001-08019-00008 MODULAR STYLE REGULATOR 250,000 1
A100.07.GB.1000
1999-01000-
A100_07_GB_1008
PLATE 300,000 1
A100.07.GB.2000
1999-01000-
A100_07_GB_2005
PLATE 300,000 1
A100.07.GB.0000 0001-04006-00366 LM GUIDE 350,000 1
A100.07.GF.0000 0001-08016-00055 SOLENOID VALVE 5/2 WAY, DIA 6 1,000,000 1

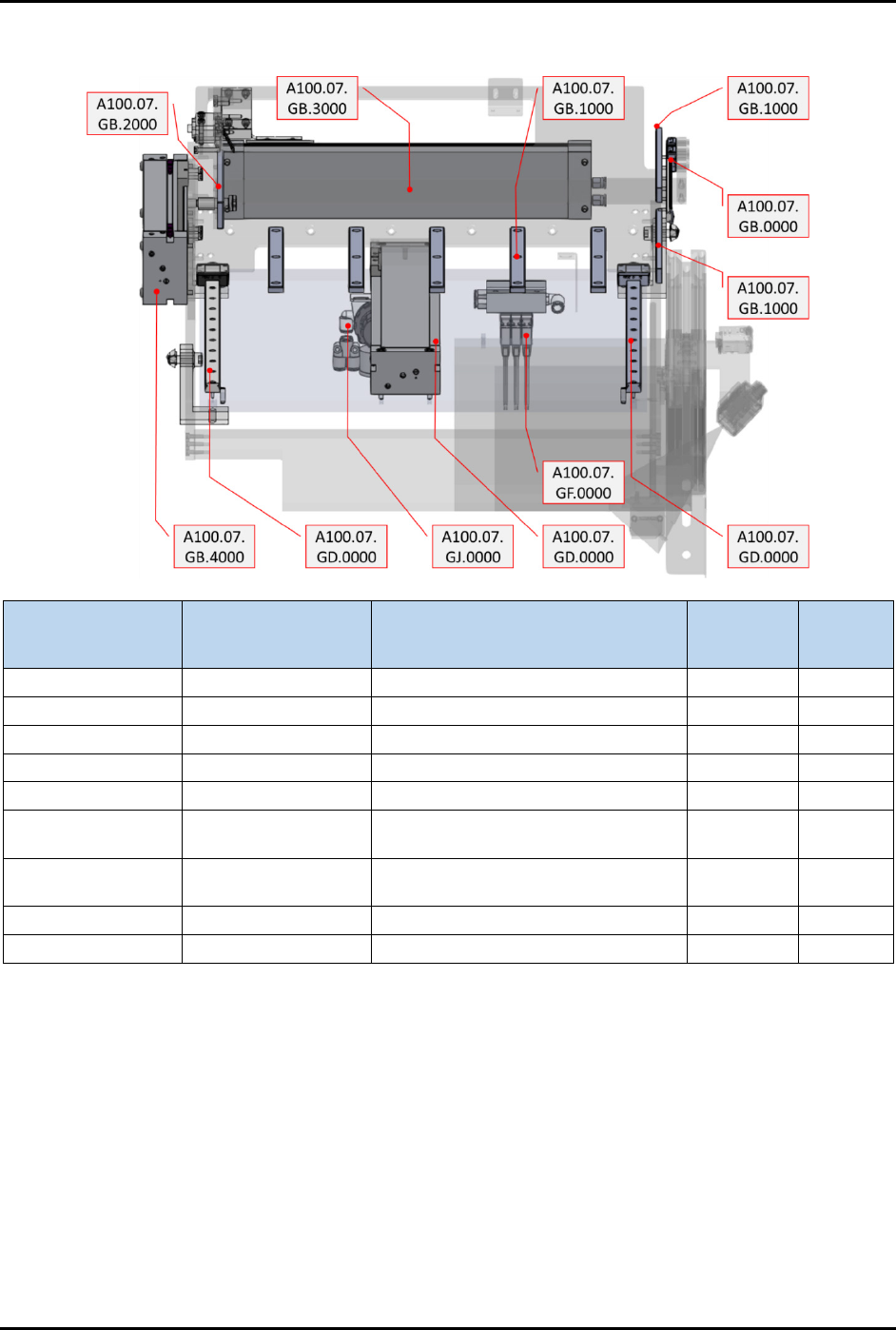

Figure 7-15 Overhead Input Port Assembly
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-19
7.10.7 Overhead Output Port Assembly
7.10.7.1 List 1
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.HA.3000 0001-08008-00721 CYLINDER 50,000 1
A100.07.HA.2000 0001-08008-00727 CLEAN ROOM GUIDER CYLINDER 150,000 1
A100.07.HA.2000
1999-01000-
A100_07_HA_2002
LEAD IN PLATE 150,000 1
A100.07.HA.1000
1999-01000-
A100_07_HA_1005
PLATE 300,000 1
Figure 7-16 Overhead Output Port Assembly List 1
