FlexTRAK-OH Material Handling System IOM Manual Maintenance

5.6 Preventive Maintenance Schedule

Before starting machine preventive maintenance, make sure all the machine parts are functioning

properly. The following table is the recommended schedule and summary of performing maintenance

onto the machine.

CAUTION! Lockout and Tagout (LOTO) power to the FlexTRAK-OH before performing

service or maintenance on the FlexTRAK-OH. See 2.19 Service Shutdown for

details.

Table 5-1 Preventive Maintenance Schedule

Interval Component Method

Daily

Isolator Switch

Test the component function availability. Ensure electrical feed is

isolated.

EMO Button

Test the component function availability. Ensure all machine

movement stops.

Safety Interlock

Test the component function availability. Ensure all sliding doors

and conveyor covers are closed.

Weekly

Air Filter

Clean air filter. Drain out condensate water from the filter if there

is any.

Pressure Gauge Check the reading on the pressure gauge.

Pinch Wheel

Check to ensure proper functionality of pinch wheel assembly.

Ensure all pinch wheels are tightened properly on the linear

motion rail, and do not have any wear and tear.

Magazine Gripper

Check to ensure proper functionality of magazine gripper

assembly. Ensure the gripper is tightened properly onto the

gripper cylinder module.

Others Maintain general tidiness of cables, wirings, etc. on each station.

Semi-Annually

Motor

Ensure all motors are freely moving on each station without

abnormal sound during production run.

Belt Tensioning

Check belt tensioning using belt tension meter. Ensure the

tension values obtained are within the range of the factory

recommended value. Change the belt if there is wear and tear.

Magazine Conveyor

Ensure the conveyor can transfer the magazine until the

magazine reaches stopper position.

Sensor

Check to ensure proper functionality of sensor. Clean with brush

or air gun for any particles or dust.

Conversion Kit

Check to ensure proper functionality of conversion kit. Clean any

particles or dust with brush or air gun, especially on the input,

plasma chamber, and output buffer lanes.

Wiring Connection Ensure all wiring connections are functioning properly.

Yearly

Cylinders in all

Stations

Ensure cylinder rod movement is smooth without abnormal sound

during production run.

Solenoid Valve

Ensure solenoid valve switch indicator is ON when manual I/O

triggering is under test.

HMI Screen

Ensure screen display is clear and touch screen feature is

working.

Mobile Control

Pendant

FlexTRAK-OH Material Handling System IOM Manual Maintenance

5.7 Removal and Replacement of Access Panels

 NOTE The following removal and replacement steps are applicable to the access doors on

machine front, left, and right sides. Remove outer door first, then followed by inner door.

To remove outer door:

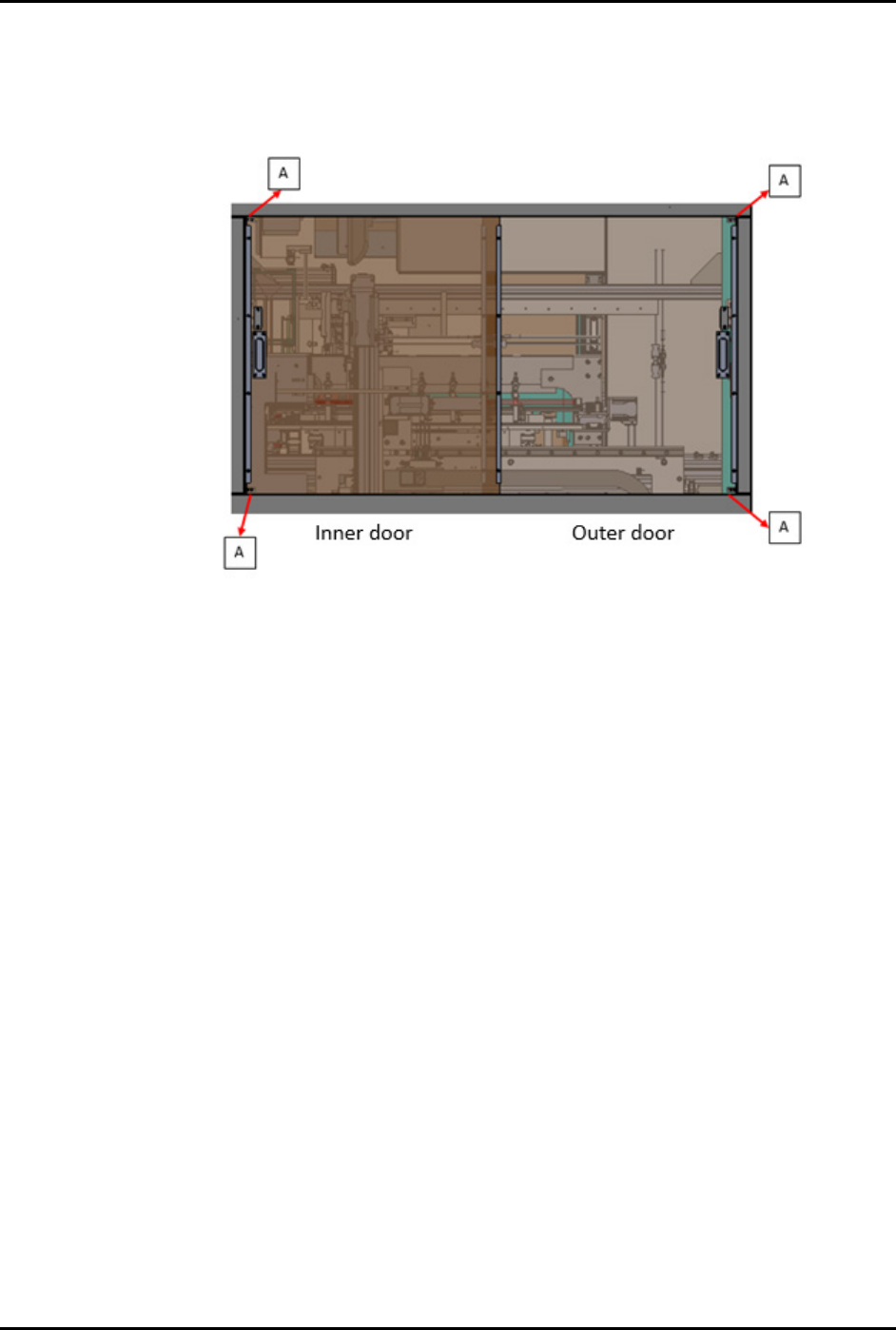

1. Remove the two retaining screws from top left and bottom left sides to separate the Delrin

block (A) from the sliding door.

2. Slowly lift up the door and pull it away from machine.

To remove inner door:

1. Remove the two retaining screws from top right and bottom right sides to separate the

Delrin block (A) from the sliding door.

2. Slowly lift up the door and pull it away from machine.

To replace the access doors:

1. Reverse the steps above.

FlexTRAK-OH Material Handling System IOM Manual Maintenance

5.8 Lubrication Requirements

Lubrication should be performed after cleaning and inspecting moving mechanisms. The FlexTRAK-OH

Material Handler components requiring lubrication and the procedures to perform the lubrication are

included below.

Tools and Materials Needed:

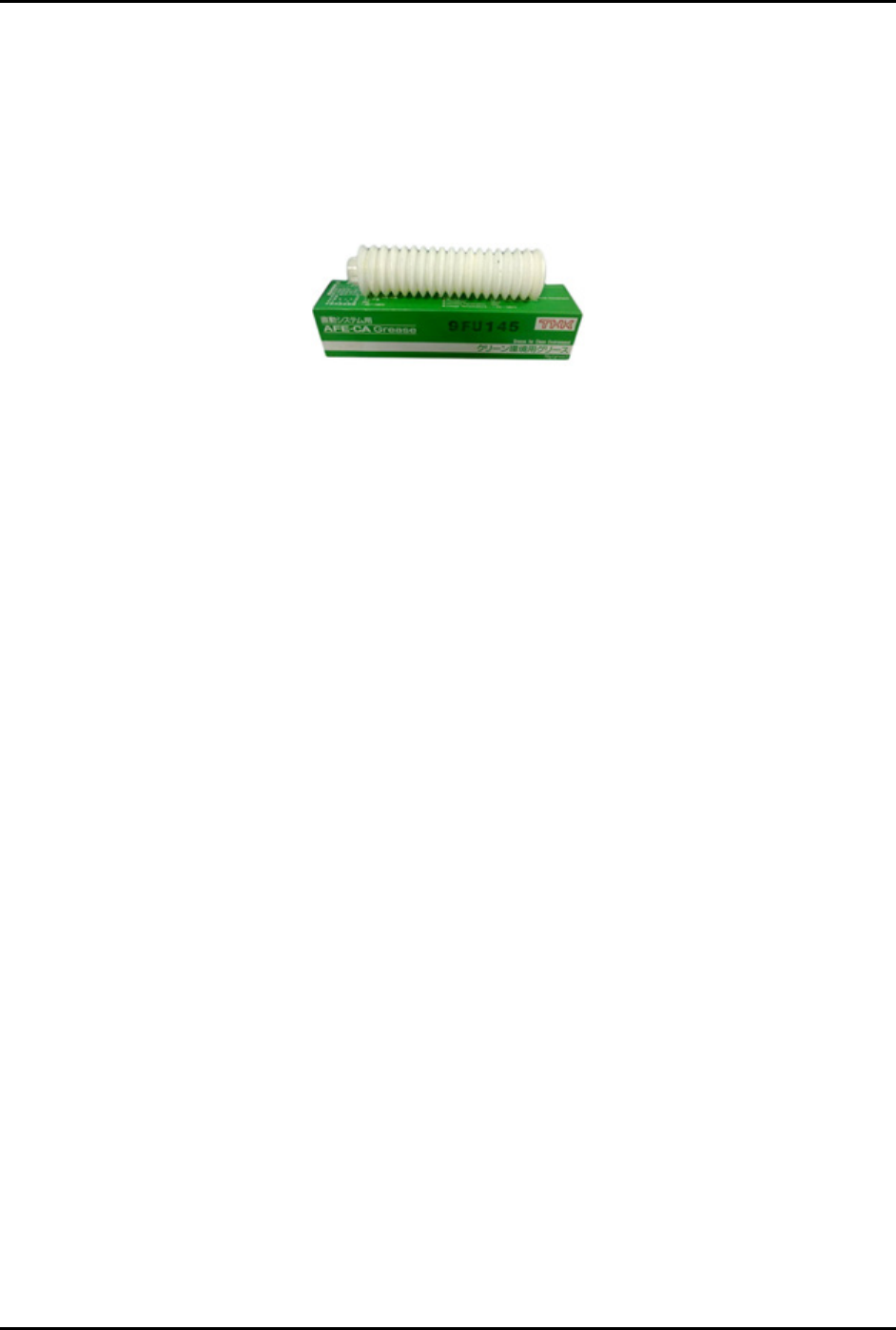

• Lubricating grease (AFE-CA Grease-THK) (Figure 5-1).

Figure 5-1 AFE-CA Grease- THK

• Soft, lint-free shop rag

• Personal Protective Equipment as applicable

5.8.1 Lubricating Process

To perform the lubrication process:

1. Using the AFE-CA Grease and a soft cloth, clean the

ball screw and sliding guide.

2. If necessary, wipe off excess grease and spills.
