FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-56 © 2023 Nordson Corporation
4.12.5.4 Cylinder Control 3

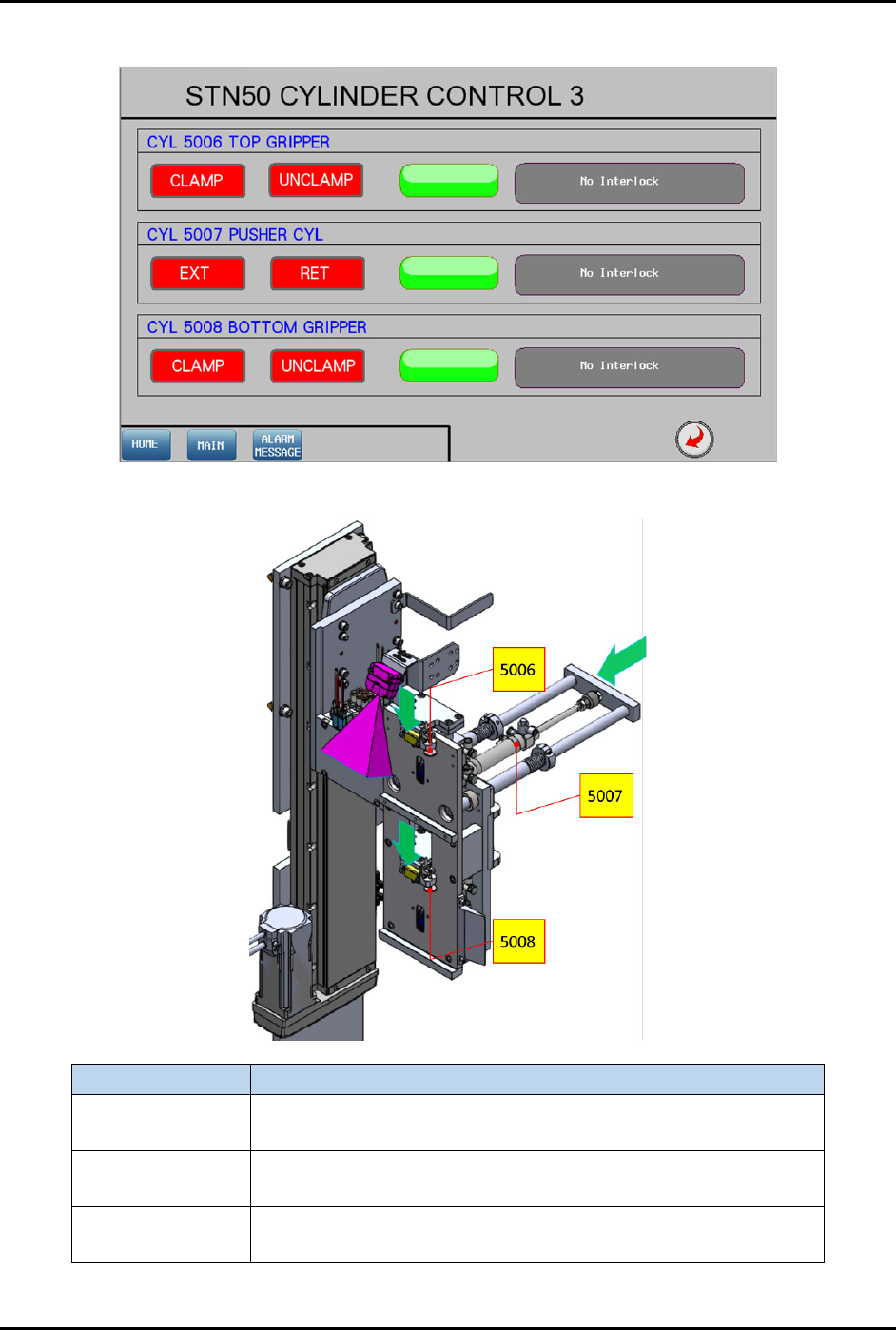

Figure 4-89 Station 50 – Cylinder Control 3 Screen
Label Description
CYL 5006
CLAMP – Clamp magazine.
UNCLAMP – Release magazine.
CYL 5007
EXT – Release magazine.
RET – Push magazine against magazine transfer platform.
CYL 5008
CLAMP – Clamp magazine.
UNCLAMP – Release magazine.
Figure 4-90 Station 50 – Cylinder Control 3 Location
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-57
4.12.5.5 Motor Control in Axis 9 (X-axis)
Pressing the MOTOR button on the Device Control screen (Figure 4-85) displays a configuration list of
motor driver parameters and the axis platform position.
Refer to 4.11 Station Main Menu Layout for interface descriptions.
The following selections are available in the "Pos Name" drop down list:
• Top gripper to top platform
• Top gripper to bottom platform
• Bottom gripper to bottom platform
• Top gripper to Stn40 gripper
• Bottom gripper to Stn40 gripper
• Magazine barcode scan position

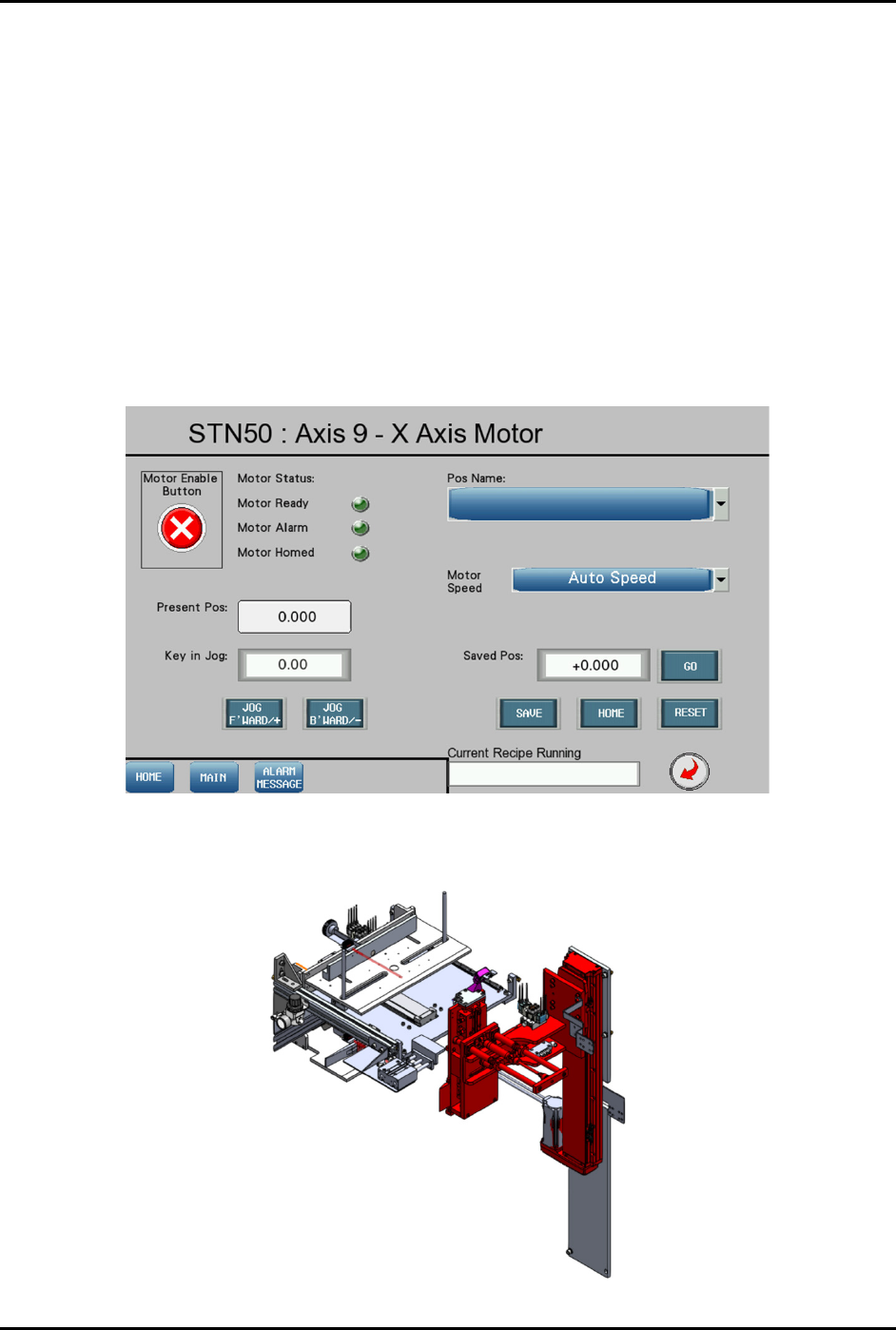

Figure 4-91 Station 50 – Axis 9 (X-Axis Motor) Screen
The red highlighted part in the following image shows the location of Axis 9 (X-axis motor) in Station 50.
Figure 4-92 Station 50 – Axis 9 (X-Axis Motor) Location
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-58 © 2023 Nordson Corporation
4.12.6 Station 60

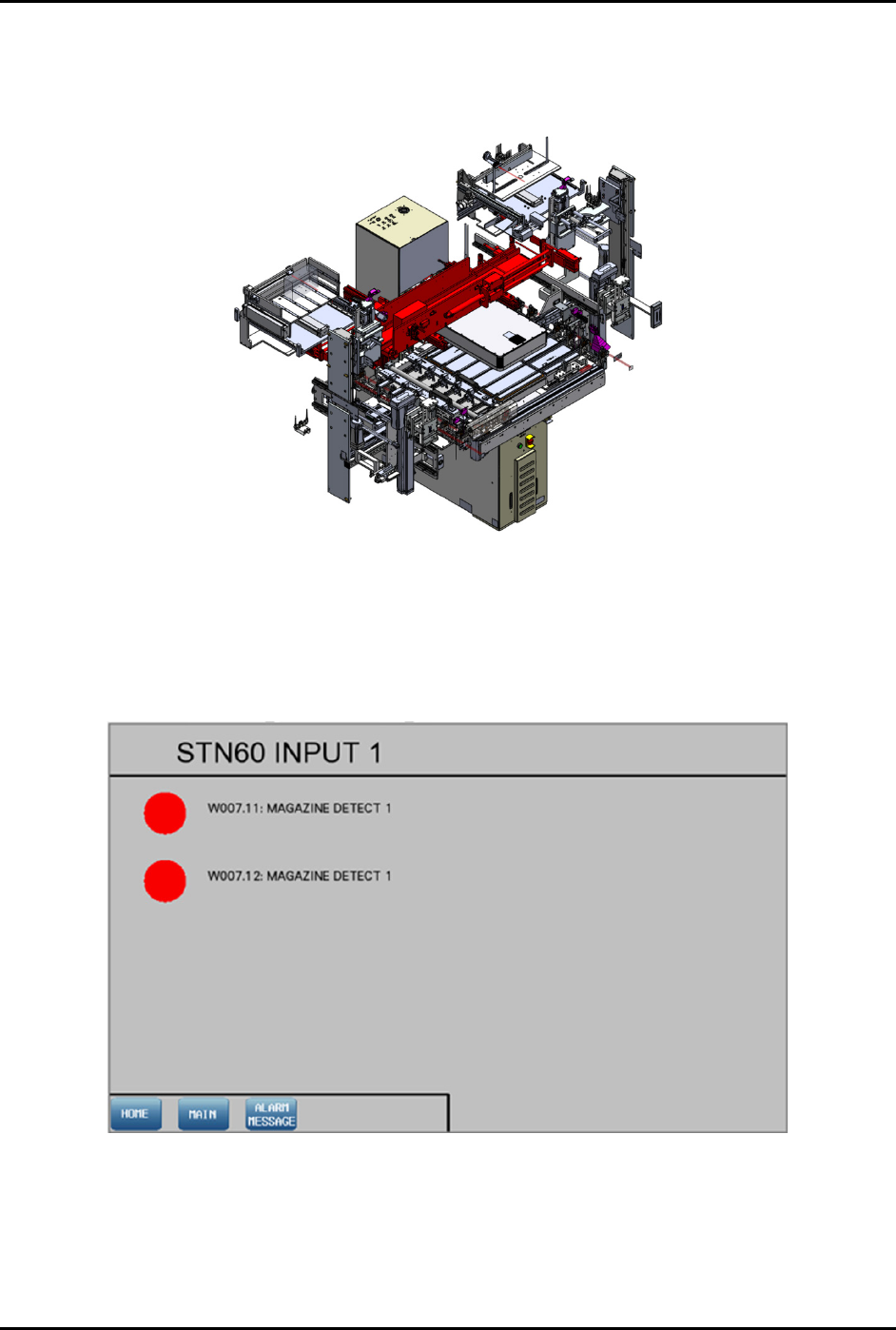

The red highlighted area in Figure 4-93 shows the location of Station 60 (OH conveyor module) in the
FlexTRAK-OH.
Figure 4-93 Station 60 – OH Conveyor Module
4.12.6.1 I/O Screens
Main Screen – Refer to 4.11 Station Main Menu Layout for interface descriptions.
Input and Output Mode – Refer to 4.10 General I/O Screen for interface descriptions.
Figure 4-94 – Station 60 – Input Screen
