FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-41
4.12.3.5 Motor Control in Axis 4
Pressing the MOTOR button on the Device Control screen (Figure 4-55) displays a configuration list of
motor driver parameters and the axis platform position.
Refer to 4.11 Station Main Menu Layout for interface descriptions.
The following selections are available in the "Pos Name" drop down list:
• Standby
• Load Position
• Plasma Position
• Unload Position
• Plasma Left Check Position
• Plasma Right Check Position

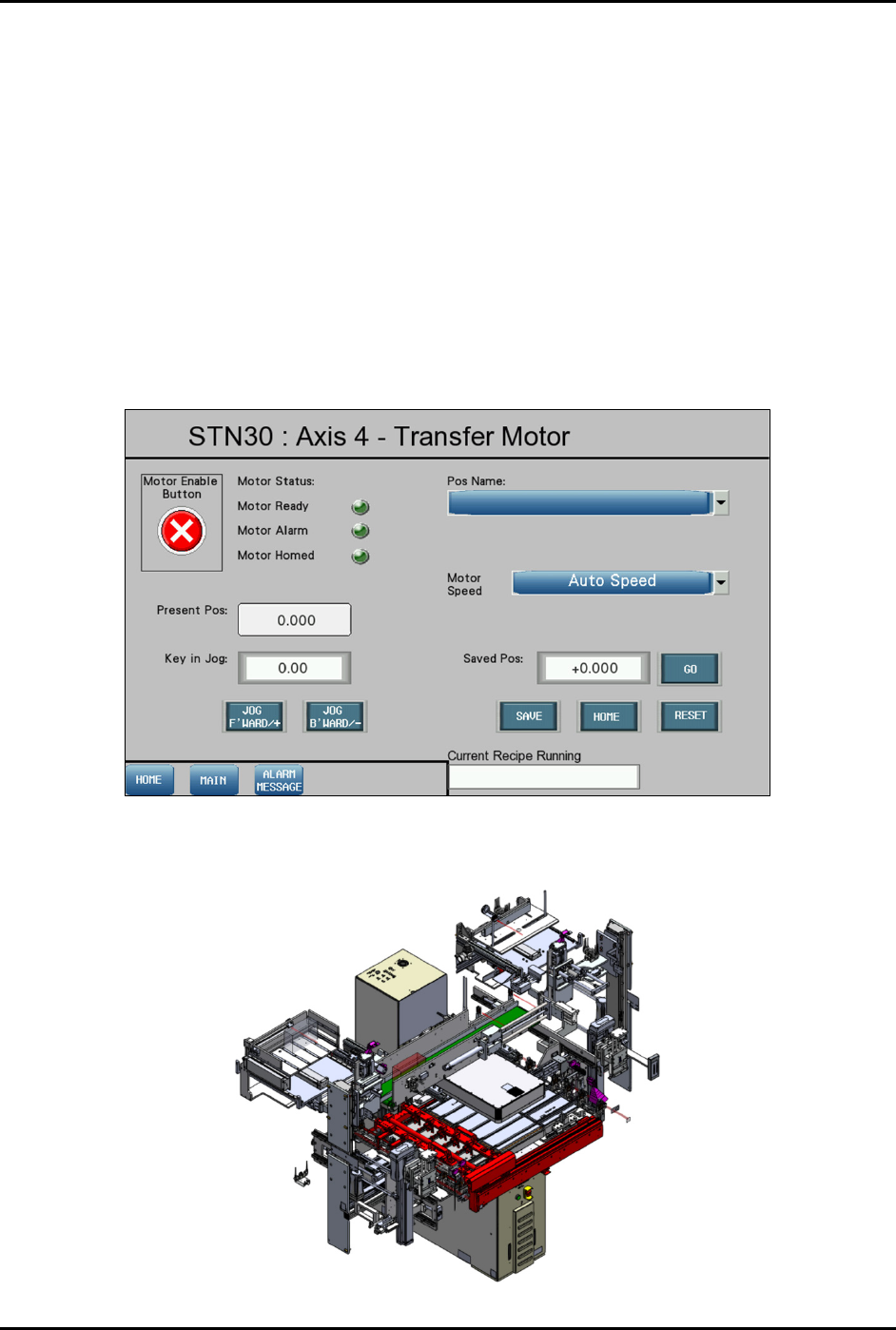

Figure 4-61 Station 30 – Axis 4 (Transfer Motor) Screen
The red highlighted area in Figure 4-62 shows the location of Axis 4 in Station 30.
Figure 4-62 Station 30 – Axis 4 (Transfer Motor) Location
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-42 © 2023 Nordson Corporation
4.12.4 Station 40

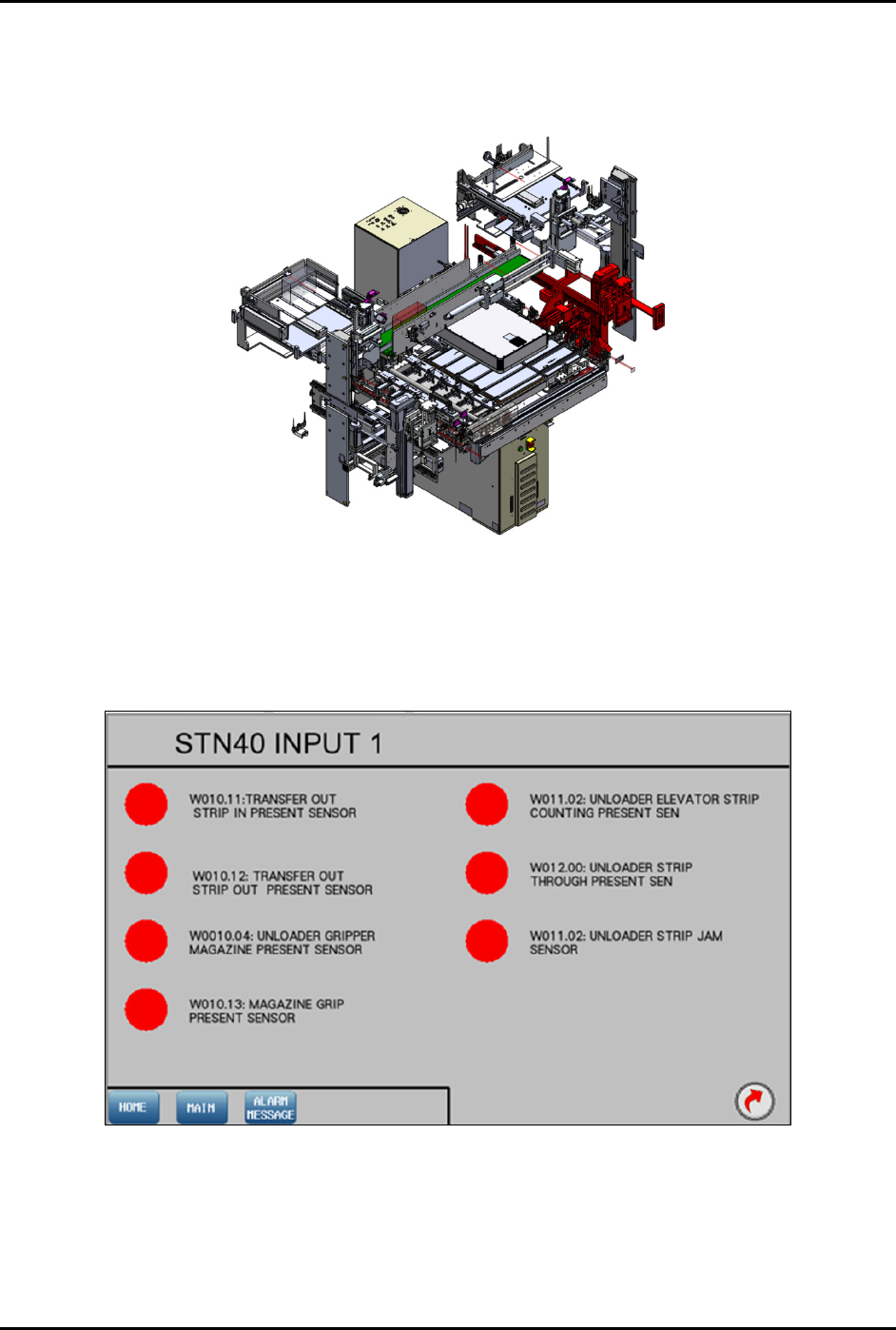

The red highlighted area in Figure 4-63 shows the location of Station 40 (transfer output module) in the
FlexTRAK-OH.
Figure 4-63 Station 40 – Transfer Output Module Location
4.12.4.1 Input Screen
Main Screen – Refer to 4.11 Station Main Menu Layout for interface descriptions.
Input Mode – Refer to 4.10 General I/O Screen for interface descriptions.
Figure 4-64 Station 40 – Input 1 Screen
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-43

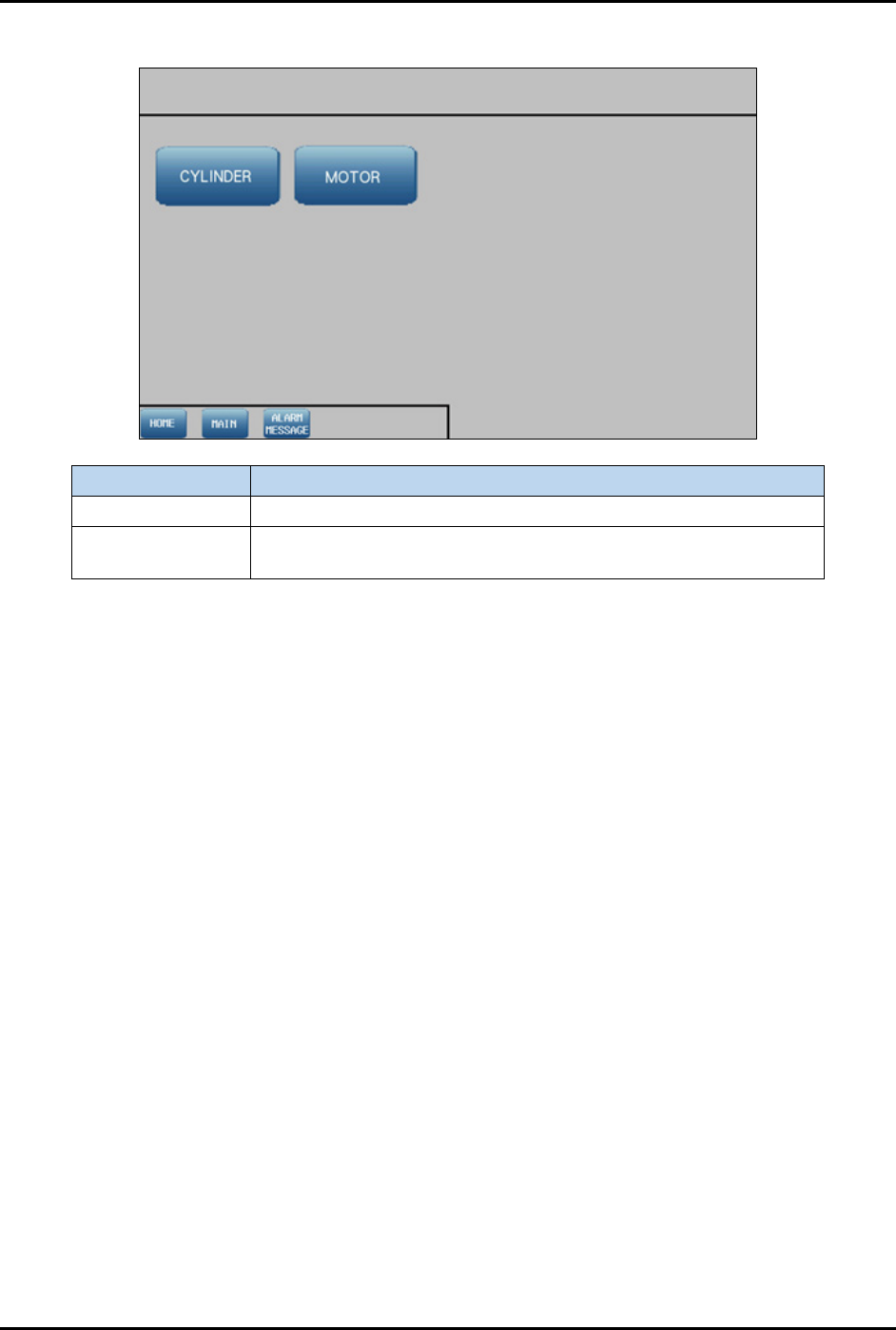

4.12.4.2 Device Control Screen
Label
Description
Cylinder Shows the control list of electro-pneumatic cylinders.
Motor
Shows the configuration list of motor driver parameters and the
axis platform position.
Figure 4-65 Device Control Screen
