FlexTRAK-OH Material Handli ng System IOM Manual Material Handler Operation 4-22 © 2023 Nordson C orporation 4.12.1.2 Device Control Screen Label Description Cylinder Shows the control list of electro - pneumatic c ylind…
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-21
4.12.1 Station 10
The red highlighted area in Figure 4-25 shows the location of Station 10 (loading module) in the
FlexTRAK-OH.

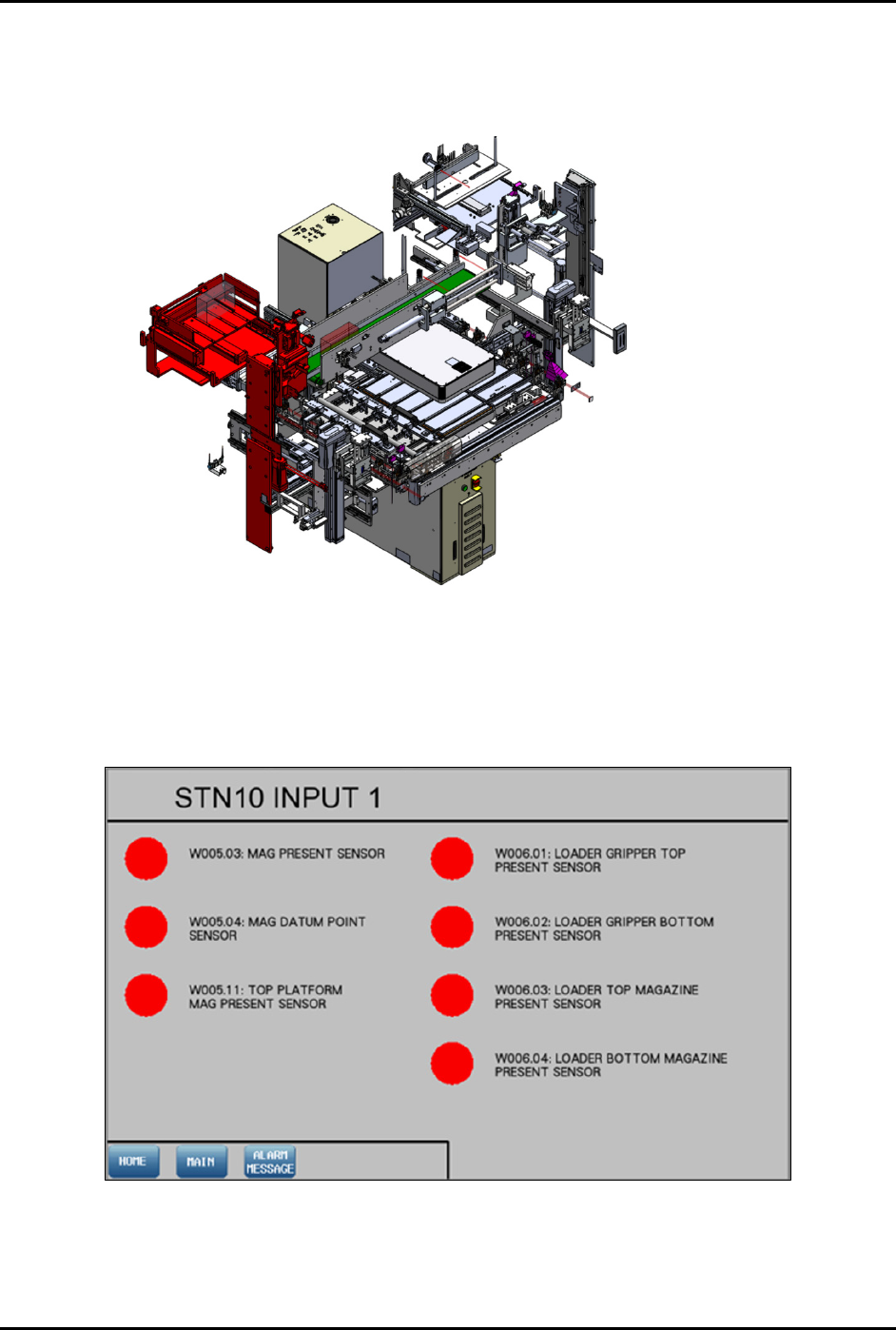

Figure 4-25 Station 10 (Loading Module) Location
4.12.1.1 Input Screen
Main Screen – Refer to 4.11 Station Main Menu Layout for interface descriptions.
Input and Output Mode – Refer to 4.10 General I/O Screen for interface descriptions.
Figure 4-26 Station 10 – Input 1
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-22 © 2023 Nordson Corporation
4.12.1.2 Device Control Screen
Label
Description
Cylinder Shows the control list of electro-pneumatic cylinders.
Motor
Shows the configuration list of motor driver parameters and the
axis platform position.

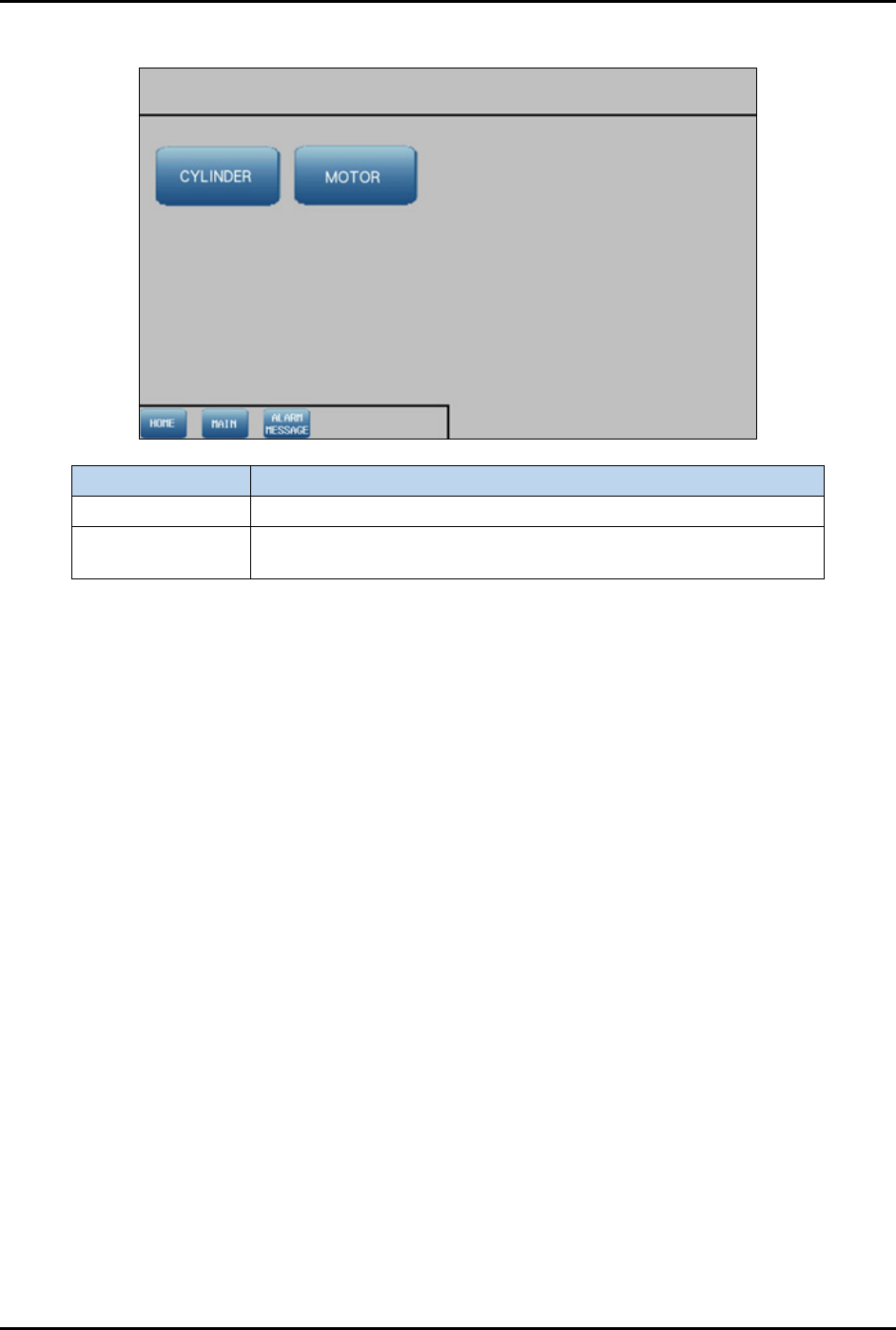

Figure 4-27 Device Control Screen
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-23
4.12.1.3 Cylinder Control 1
Pressing the CYLINDER button on the Device Control screen (Figure 4-27) displays the control list of
electro-pneumatic cylinders.
Figure 4-28 Station 10 – Cylinder Control 1
Label
Description
CYL 1001
EXT – Transfer magazine to datum point.
RET – Release magazine pushing.
CYL 1002
EXT – Transfer magazine to elevator gripping base.
RET – Release magazine pushing.
CYL 1003
EXT – Position magazine transfer platform to elevator module.
RET – Position magazine transfer platform to the rear.
Figure 4-29 Station 10 – Cylinder Control 1 Locations
