FlexTRAK-OH Material Handli ng System IOM Manual Parts Replacement 7-22 © 2023 Nordson C orporation 7.10.8 Magazine Return Con veyor Assembly Drawin g Number Part Number Descriptio n Estimated Life Span (cycles) Quantity…
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-21
7.10.7.3 List 3
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.HD.1000 0001-08008-00723 CYLINDER 50,000 1
A100.07.HD.0000 0001-04006-00354 LM GUIDE 200,000 1
A100.07.HG.0000
0001-08008-00724
CYLINDER
200,000
1
A100.07.HJ.0000 0001-08019-00008 MODULAR STYLE REGULATOR 250,000 1
A100.07.HE.0000 0001-08016-00055 SOLENOID VALVE 5/2 WAY, DIA 6 1,000,000 1
Figure 7-18 Overhead Output Port Assembly List 3
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-22 © 2023 Nordson Corporation
7.10.8 Magazine Return Conveyor
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.KA.1000 0001-08008-00709 CLEAN ROOM CYLINDER 50,000 1
A100.07.KA.4000 0001-08008-00689
COMPACT GUIDE CYLINDER
(CLEAN)
100,000 1
A100.07.KD.2000 0001-08008-00720 CYLINDER 150,000 1
A100.07.K0.0000 0001-09006-00120 FLAT BELT 500,000 1
A100.07.KJ.0000 0001-08016-00055 SOLENOID VALVE 5/2 WAY, DIA 6 1,000,000 1

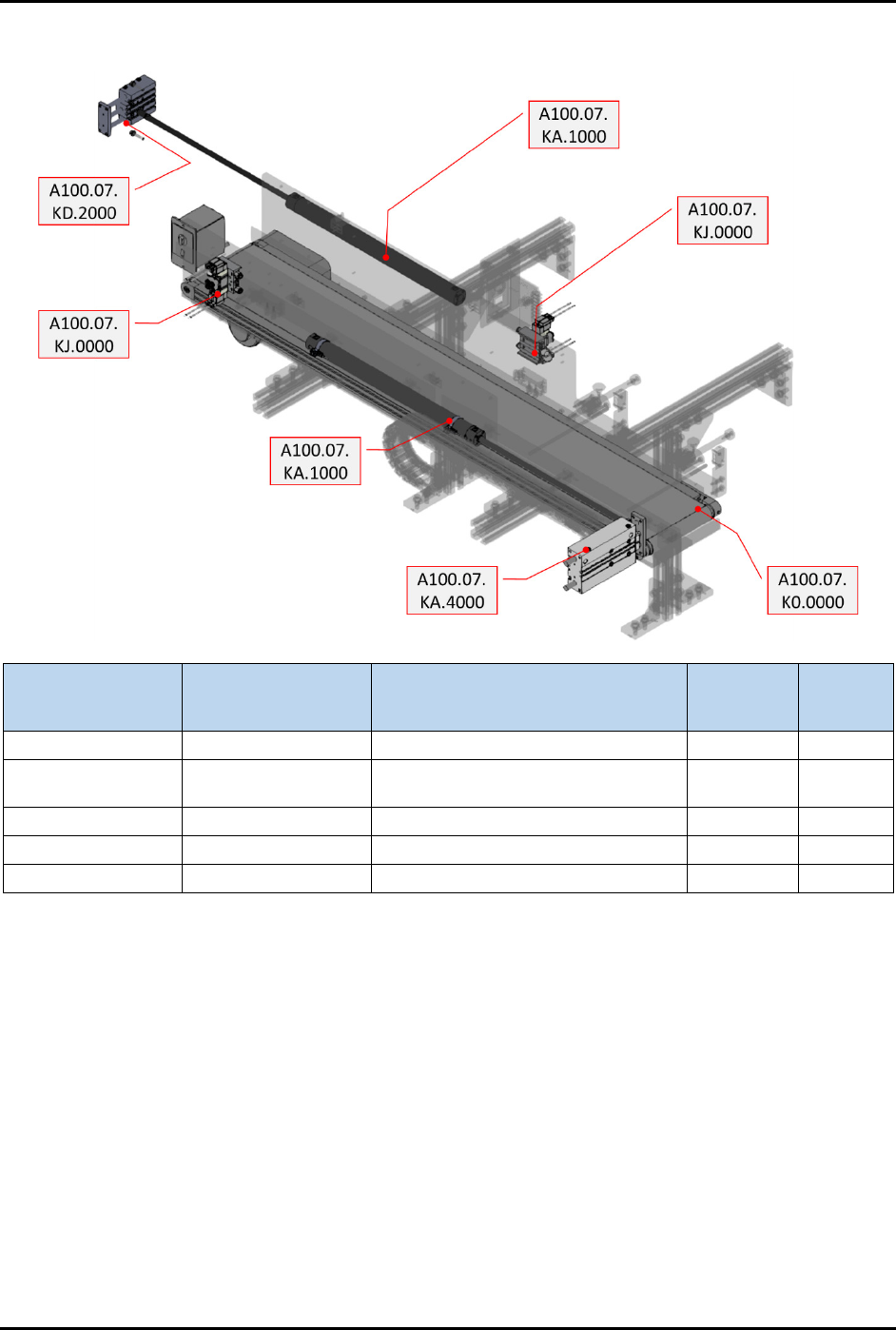

Figure 7-19 Magazine Return Conveyor
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-23
7.10.9 Conversion Kit
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.04.Y0.0400 0001-04006-00361 MINIATURE LINEAR GUIDE 1,100,000 1
A100.04.Y0.0500 0001-04006-00361 MINIATURE LINEAR GUIDE 1,100,000 1

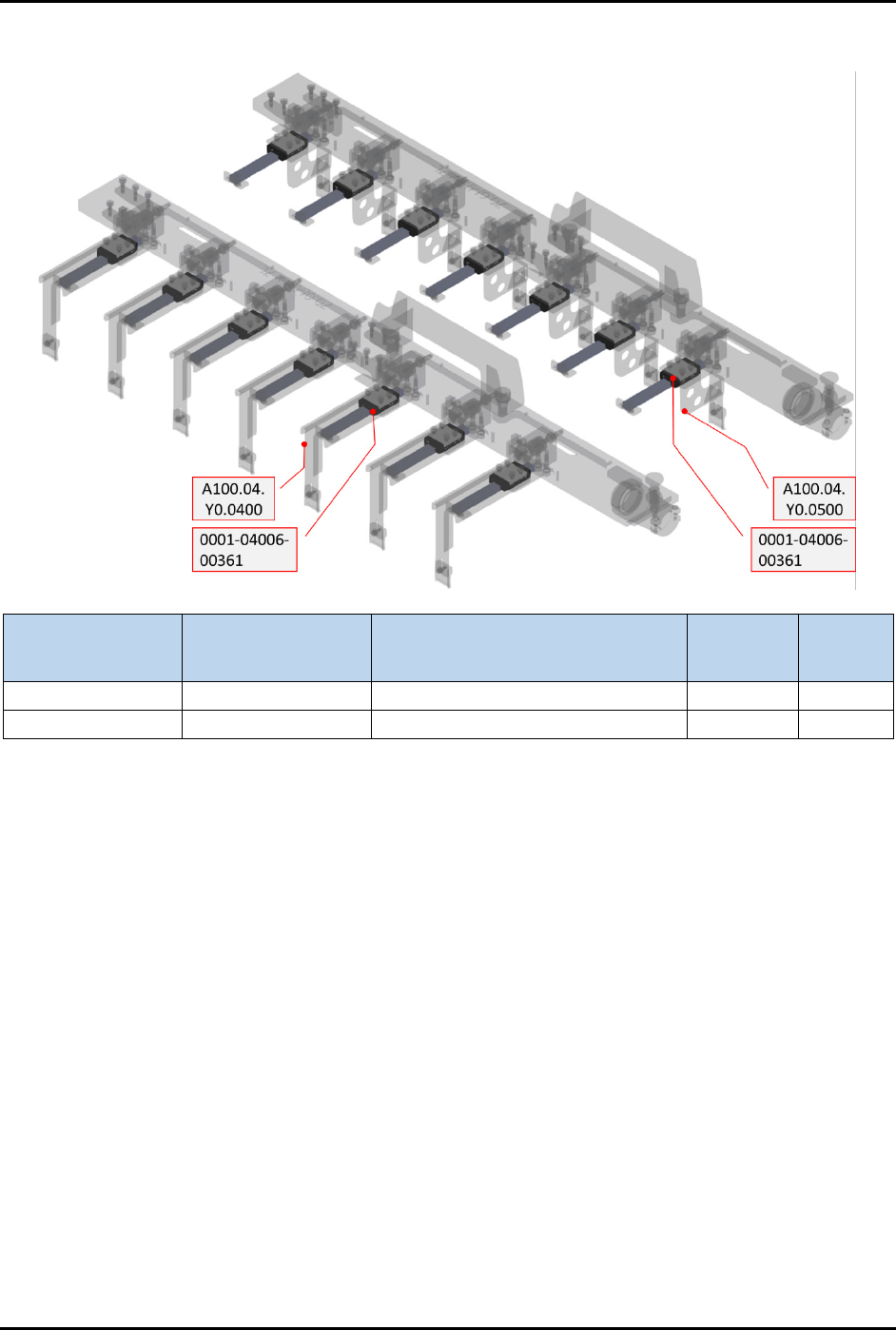

Figure 7-20 Conversion Kit
