FlexTRAK-OH Material Handli ng System IOM Manual Specifications 8-4 © 2023 Nordson C orporation 8.4 System Dimensions 8.4.1 Front View Measurement unit : mm Figure 8-1 Front View Dimensi ons
FlexTRAK-OH Material Handling System IOM Manual Specifications
© 2023 Nordson Corporation 8-3
8.3.3 Pneumatic
Properties Specification Value
Air preparation unit
Incoming air pressure 6 bar (maximum)
Incoming air tubing size 10 mm
Operating air pressure 5.5 bar
Drawing Document
Name FLEXTRAK-SHS-PNEUMATIC
Number A100.06.00.0000
8.3.4 Environment
Properties Value
Operating temperature 17˚C to 50˚C (62.6˚F to 122˚F)
Transportation and storage temperature -40˚C to 50˚C (-40˚F to 122˚F)
Operating environment quality
Cleanroom:
Class 10K
Class 1000 (optional)
Operating altitude 1000 m (maximum)
Relative humidity (amount of water vapor
present in the air)
30% to 50%
FlexTRAK-OH Material Handling System IOM Manual Specifications
8-4 © 2023 Nordson Corporation
8.4 System Dimensions
8.4.1 Front View
Measurement unit: mm

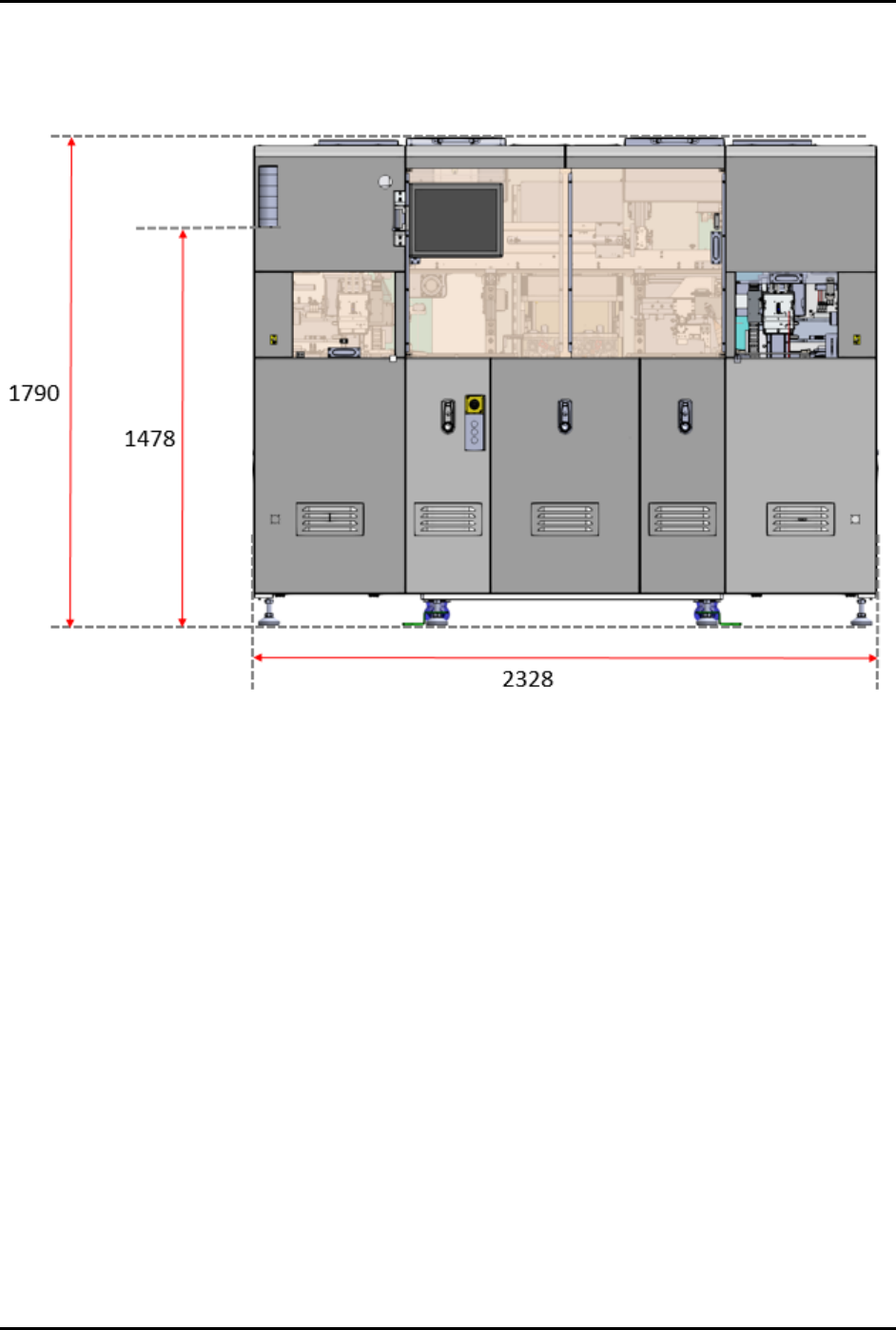

Figure 8-1 Front View Dimensions
FlexTRAK-OH Material Handling System IOM Manual Specifications
© 2023 Nordson Corporation 8-5
8.4.2 Side View
Measurement unit: mm
Figure 8-2 Side View Dimensions
