FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-22 © 2023 Nordson Corporation
7.10.8 Magazine Return Conveyor
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.KA.1000 0001-08008-00709 CLEAN ROOM CYLINDER 50,000 1
A100.07.KA.4000 0001-08008-00689
COMPACT GUIDE CYLINDER
(CLEAN)
100,000 1
A100.07.KD.2000 0001-08008-00720 CYLINDER 150,000 1
A100.07.K0.0000 0001-09006-00120 FLAT BELT 500,000 1
A100.07.KJ.0000 0001-08016-00055 SOLENOID VALVE 5/2 WAY, DIA 6 1,000,000 1
Figure 7-19 Magazine Return Conveyor
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-23
7.10.9 Conversion Kit
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.04.Y0.0400 0001-04006-00361 MINIATURE LINEAR GUIDE 1,100,000 1
A100.04.Y0.0500 0001-04006-00361 MINIATURE LINEAR GUIDE 1,100,000 1
Figure 7-20 Conversion Kit
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-24 © 2023 Nordson Corporation
7.11 Mechanical Parts Lists (Level 2)
Level 2 parts are rarely replaced. If a part fails, the machine will be inoperable. Mechanical Parts
(Level 2) are shown in Figure 7-21 through Figure 7-40.

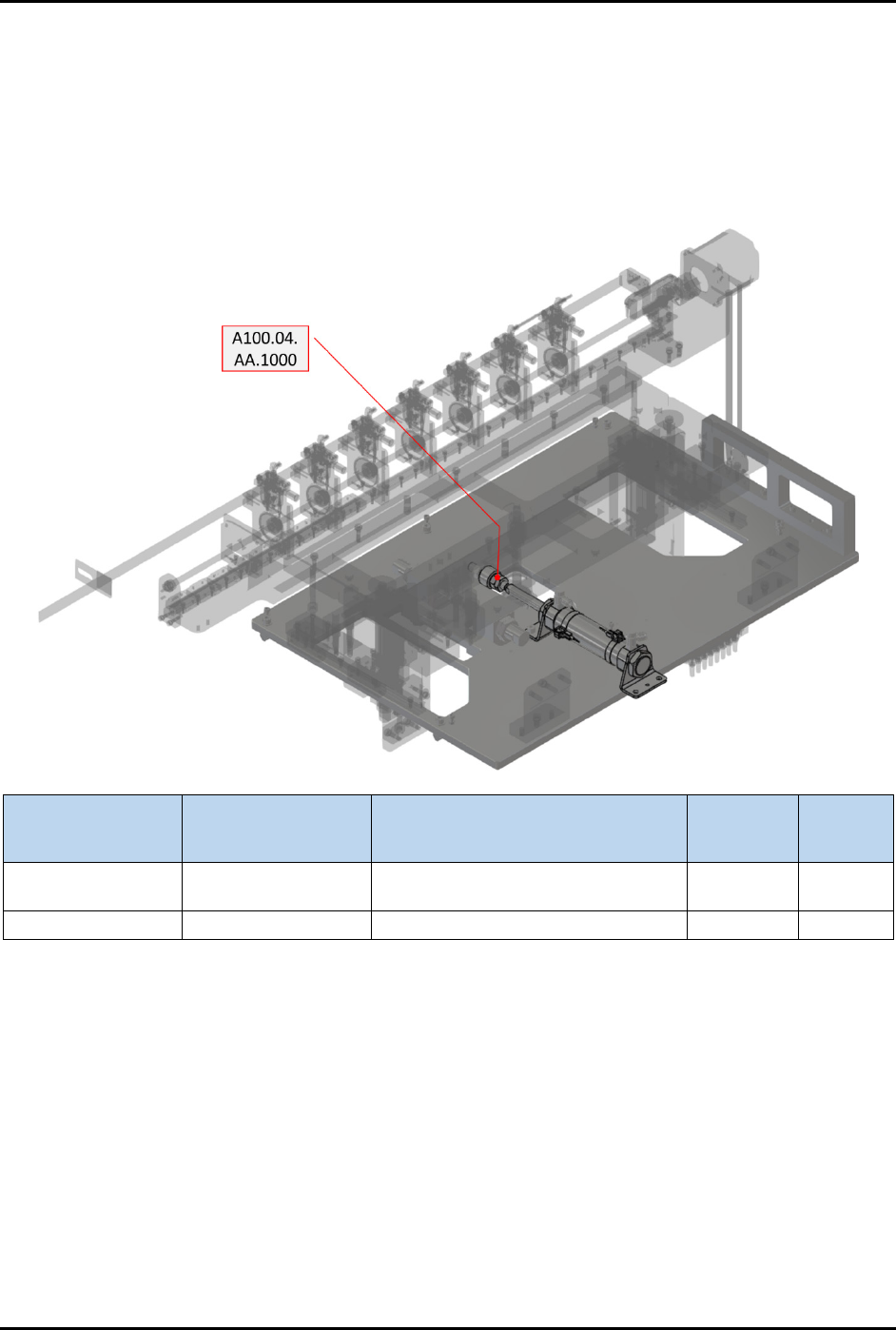

7.11.1 Transfer Assembly
7.11.1.1 List 1
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.04.AA.1000
1073-99999-
A100_04_AA_1100
DOUBLE ACTING CYLINDER 150,000 1
A100.04.AA.1000 0001-08004-00030 FLOATING JOINT 500,000 1
Figure 7-21 Transfer Assembly List 1
