FlexTRAK-OH Material Handling System IOM Manual Installation
© 2023 Nordson Corporation 3-33
Table 3-11 Sample Readings Measured from Each Finger
Items I/O
Threshold
force (gram)
Actual force
(gram)
Claw 1 Finger 1 I007.00
100
170
Claw 1 Finger 2 I007.01 110
Claw 1 Finger 3 I007.02 140
Claw 1 Finger 4 I007.03 110
Claw 1 Finger 5 I007.04 140
Claw 1 Finger 6 I007.05 120
Claw 1 Finger 7 I007.06 100
Claw 1 Finger 8 I007.07 N/A
Claw 2 Finger 1 I009.00 150
Claw 2 Finger 2 I009.01 140
Claw 2 Finger 3 I009.02 140
Claw 2 Finger 4 I009.03 100
Claw 2 Finger 5 I009.04 120
Claw 2 Finger 6 I009.05 110
Claw 2 Finger 7 I009.06 100
Claw 2 Finger 8 I009.07 N/A
N/A: Current used lane quantity of the conversion kit is 7 lanes.
FlexTRAK-OH Material Handling System IOM Manual Installation
3-34 © 2023 Nordson Corporation
3.7.9 Loader Kicker Sensitivity Adjustment
1. Prepare a tension gauge (Figure 3-57).
a. Ensure the tension gauge is in good condition.
b. Reset both needles to the default position by rotating the knob in the clockwise or
counterclockwise direction.
Figure 3-57 Loader Kicker Sensitivity Adjustment 1
2. Put the gauge needle on the loader kicker then pull it in the direction as indicated by the red
arrow (Figure 3-58).
Figure 3-58 Loader Kicker Sensitivity Adjustment 2
FlexTRAK-OH Material Handling System IOM Manual Installation
© 2023 Nordson Corporation 3-35
3. Return the loader kicker into original position and check the gauge reading (reading shown
by red needle) (Figure 3-59).
4. If the tension gauge does not show a proper reading, use a screw driver to loosen or tighten
the screw nut until a correct reading is obtained.

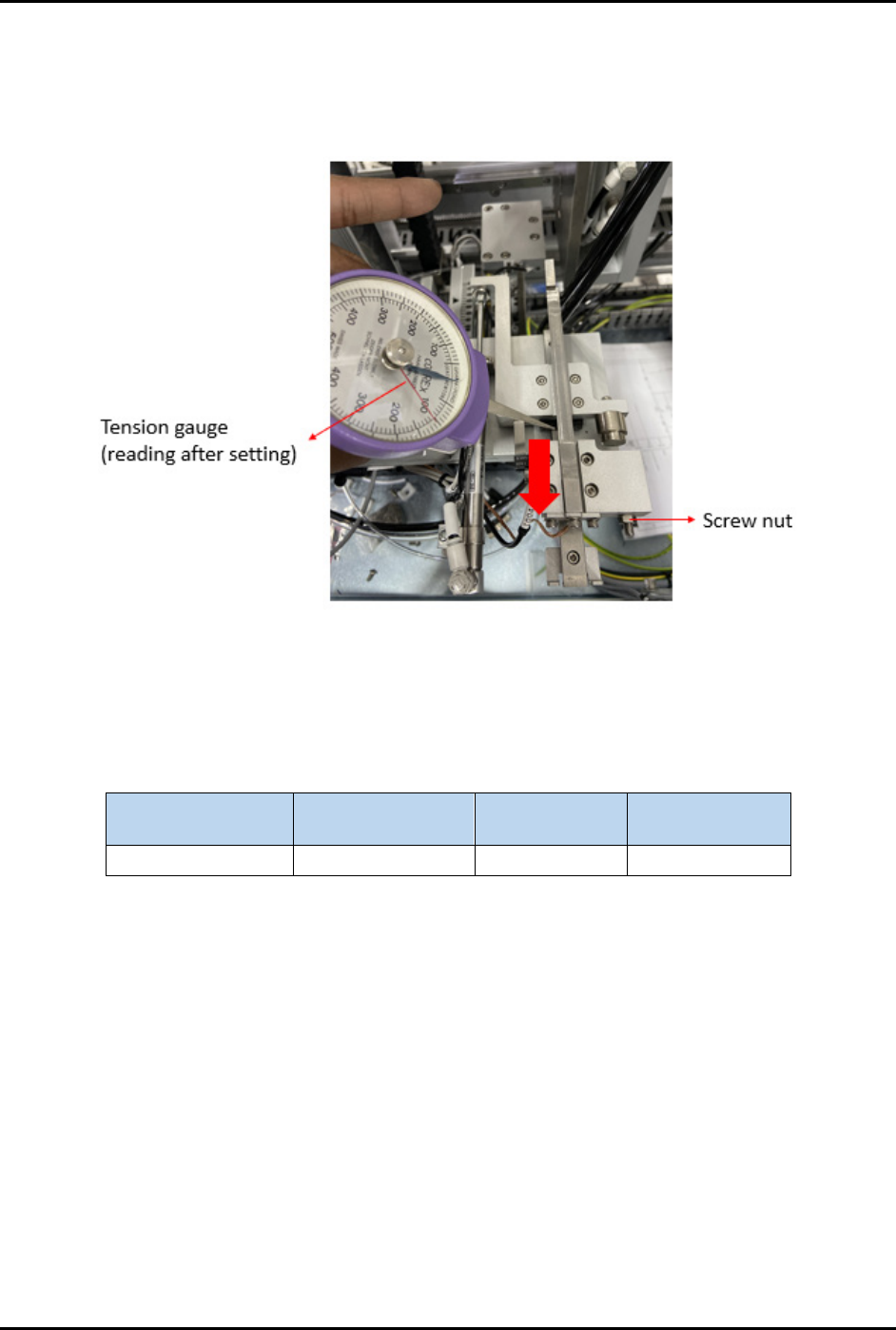

Figure 3-59 Loader Kicker Sensitivity Adjustment 3
NOTE Specification values are within the range of 80 to 200 grams. Actual settings used should
correspond to maximum allowable force to push the strip into the loader station. Refer to
Table 3-12 for sample readings.
Table 3-12 Load Kicker Sensitivity Sample Readings
Items I/O
Threshold
force (gram)
Actual force
(gram)
Loader kicker I004.04 110 200
