FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-10 © 2023 Nordson Corporation
4.9.1 Plasma Communication
Select PLASMA from the Control screen (Figure 4-9) to open the Plasma Communication screen
(Figure 4-10).
Item
Description
Input from Plasma
Indicates signal status from plasma to PLC state.
Yellow: PLC not receiving signals from plasma.
Green: PLC received a signal from plasma.
Output from PLC
Indicates signal status from PLC to plasma state.
Red: PLC not sending signals to plasma.
Green: PLC sending signals to plasma.
Plasma Bypass
Dark blue: Enables the plasma process in strip handling process
sequence.
Light blue: Skips the plasma process in strip handling process sequence.
Figure 4-10 Plasma Communication Screen
4.9.2 Gripper Status
Select GRIPPER STATUS from the Control screen (Figure 4-9) to open the Gripper Status Screen
(Figure 4-11)
Label
Description
Loading/unloading
gripper
Red: Magazine is not present in loading/unloading gripper.
Green: Magazine is present in loading/unloading gripper.
Figure 4-11 Gripper Status Screen
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-11
4.9.3 OHT (Overhead Transfer) Load/Unload Signal
Select LOAD/UNLOAD SIGNAL from the Control screen (Figure 4-9) to open the Loading/Unloading
screen (Figure 4-12).
Label
Description
Loading/Unloading
Signal
Dark blue/red: OFF mode. Statement beside switch is false.
Light blue/green: ON mode. Statement beside switch is true.
Figure 4-12 Load/Unload Signal Screen
4.9.4 Magazine Reader
Select MAGAZINE READER from the Control screen (Figure 4-9) to open the Magazine Scanner screen
(Figure 4-13) Press the
TRIGGER button to read the barcode data from load and unload magazine.
Figure 4-13 Magazine Reader Screen
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-12 © 2023 Nordson Corporation

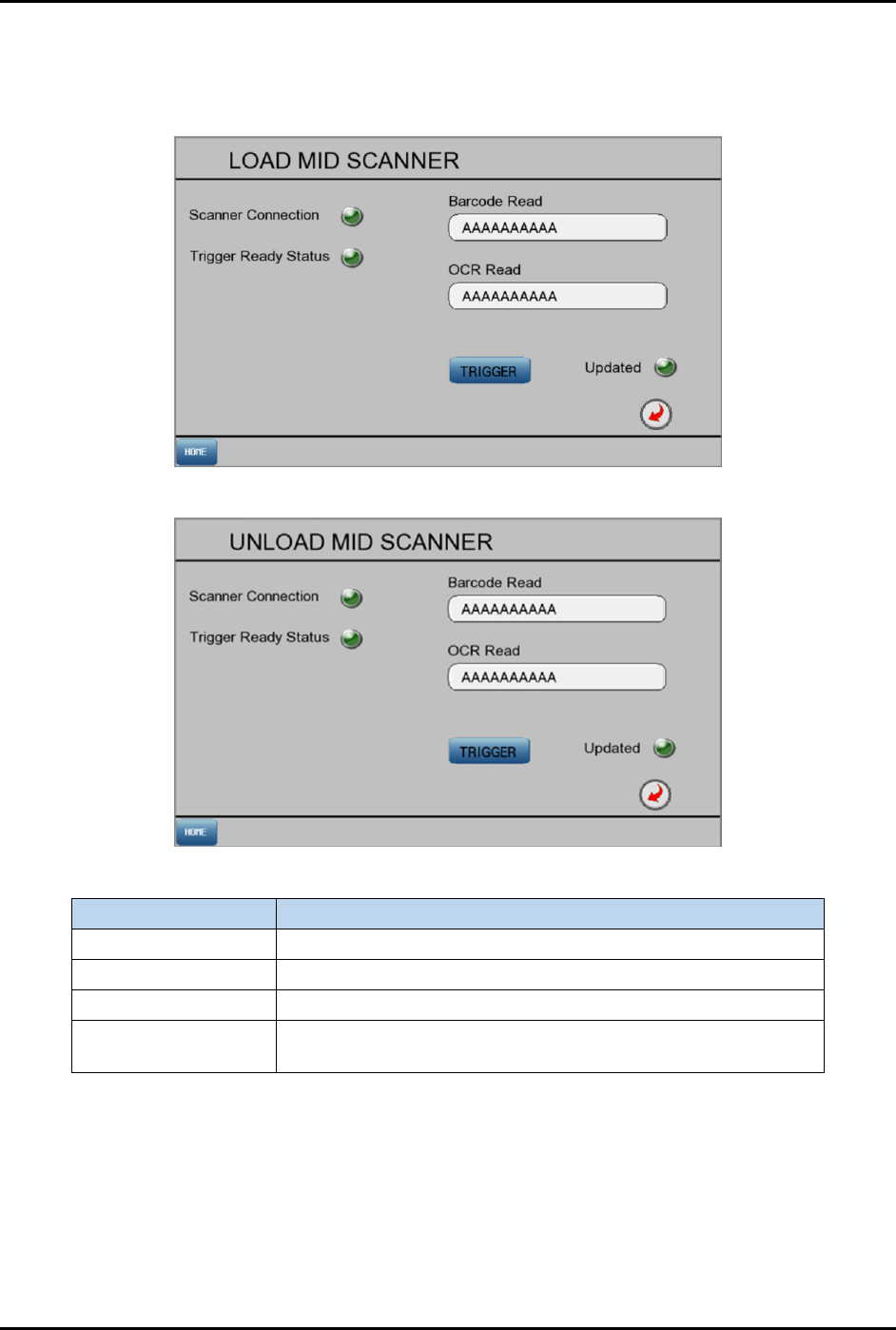

4.9.5 Load/Unload Magazine ID (MID) Reader
Select LOAD MID READER or UNLOAD MID READER from the Control screen (Figure 4-9) to open the
Load/Unload MID Scanner screens (Figure 4-14).
Load MID Scanner
Unload Load MID Scanner
Label Description
Scanner connection
Indicates network status of scanner with PLC.
Trigger ready status
Indicates scanner readiness status to capture code data.
Trigger
Once pressed, barcode reader will read the code data.
Updated
Indicates the presence code shown in the form is the updated
data.
Figure 4-14 Loader and Unloader Scanner Screens
