7.11.4.4 List 4
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.06.DB.6000
1073-99999-
A100_04_DA_6300
GRIPPER HOLDER MODULE 100,000 1
A100.04.DB.1100
1999-01000-
A100_04_DA_1106
ROLLER BALL SCREW 300,000 1
A100.06.DB.2100 0001-07014-00084
SANYO DENKI STEPPER MOTOR
42MM
500,000 1
A100.06.DB.2100 0001-04013-00093
TOYO GTH BALLSCREW
ACTUATOR
500,000 1
A100.06.DB.2100 0001-07028-00002 ETHERCAT STEPPER DRIVER 500,000 1
A100.04.DB.9400 0001-10005-00221 PHOTOMICROSENSOR 1,000,000 1
A100.06.DB.9300 0001-10005-00236 CMOS LASER SENSOR 1,000,000 1
Figure 7-32 Magazine Elevator Assembly List 4
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-36 © 2023 Nordson Corporation
7.11.5 Lifter Assembly
7.11.5.1 List 1
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.J0.0000
1073-99999-
A100_07_JB_0000
GRIPPER HOLDER MODULE 100,000 1
A100.07.JF.0000 0002-08013-00029 DATAMAN 70S SHORT RANGE ID 500,000 1
A100.07.JC.0000 0001-07012-00023
CLOSED LOOP 60MM STEPPER
MOTOR WITH BRAKE
500,000 1
A100.07.JA.0000 0001-10007-00099 PROXIMITY SENSOR 1,000,000 1
A100.07.JB.0000 0001-10005-00206 PHOTOMICRO SENSOR 1,000,000 1
A100.07.JC.0000 0001-10005-00237 SLOT SENSOR 1,000,000 1
Figure 7-33 Lifter Assembly List 1
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-37
7.11.5.2 List 2
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.L0.0000
1073-99999-
A100_07_JB_0000
GRIPPER HOLDER MODULE 100,000 1
A100.07.LA.0000 0001-04005-00142 LINEAR BUSHING 150,000 1
A100.07.LA.2000 0001-08004-00034 FLOATING JOINT 500,000 1
A100.07.LA.2000 0001-08028-00165 AUTO SWITCH BRACKET 500,000 1
A100.07.LA.0000 0001-10007-00099 PROXIMITY SENSOR 1,000,000 1

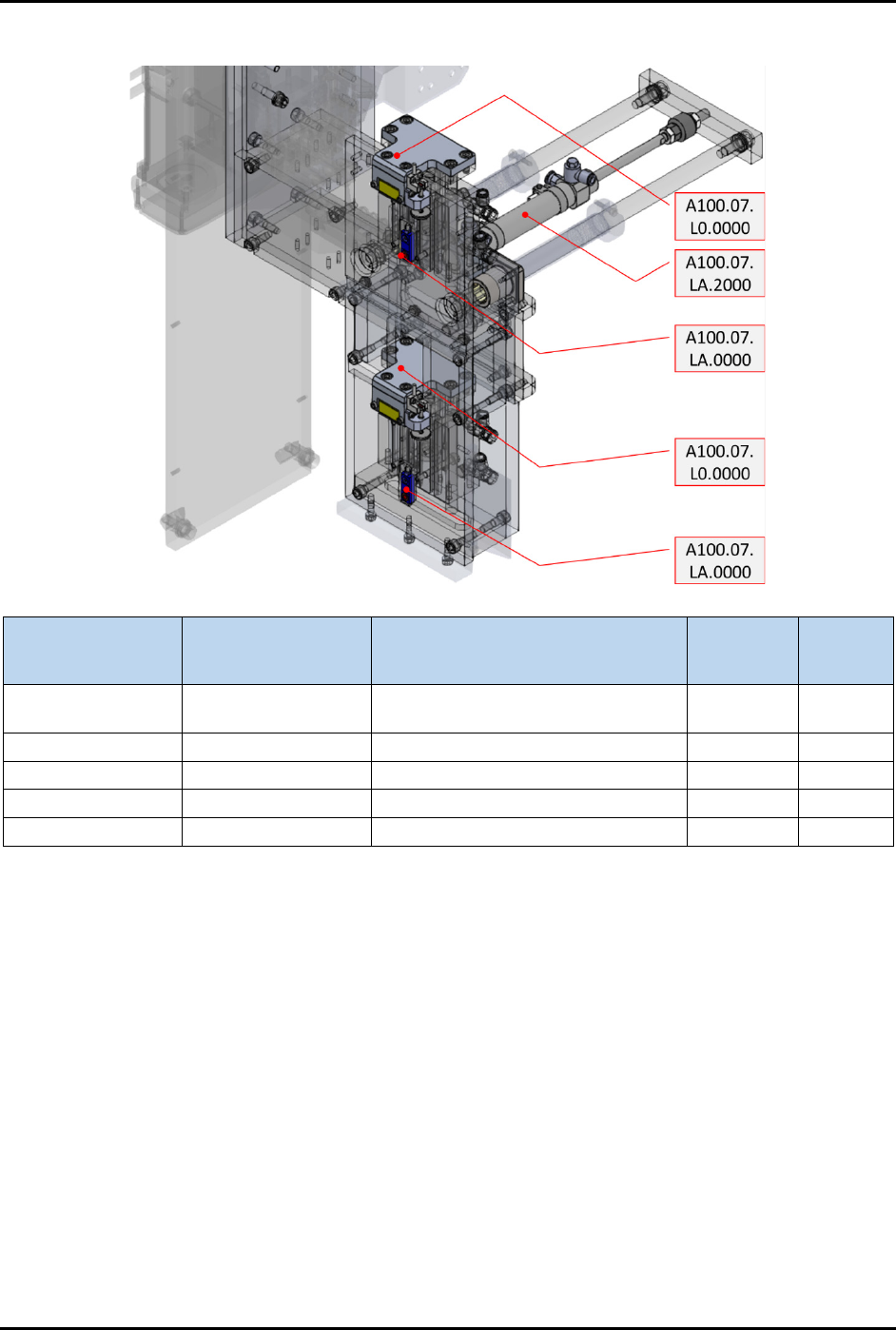

Figure 7-34 Lifter Assembly List 2
