3 Installation

3.1 Overview

This chapter describes installation procedures for the FlexTRAK-OH Material Handler. This chapter

covers the following topics:

• Transporting the

• Uncrating and Placing the

• Installing the Cables and Tubing

• Initial Setup Procedure/Pre-Teaching

• Setup Procedures

3.2 Safety First

Operation of your FlexTRAK-OH Material Handler involves mechanical devices, air pressure, and

electrical power. It is essential that every person servicing or operating the FlexTRAK-OH fully

understands all hazards, risks, and safety precautions. When properly operated and maintained, the

FlexTRAK-OH Material Handler should be safe and reliable. Refer to Section 2 - Safety prior to

installation and operation

3.3 Transporting the FlexTRAK-OH

1. Ensure the crate is in good condition by inspecting the impact indicator (tiltwatch and

shockwatch) that are attached to the side of the crate (Figure 3-1).

2. Inform the machine manufacturer if the shockwatch has been activated.

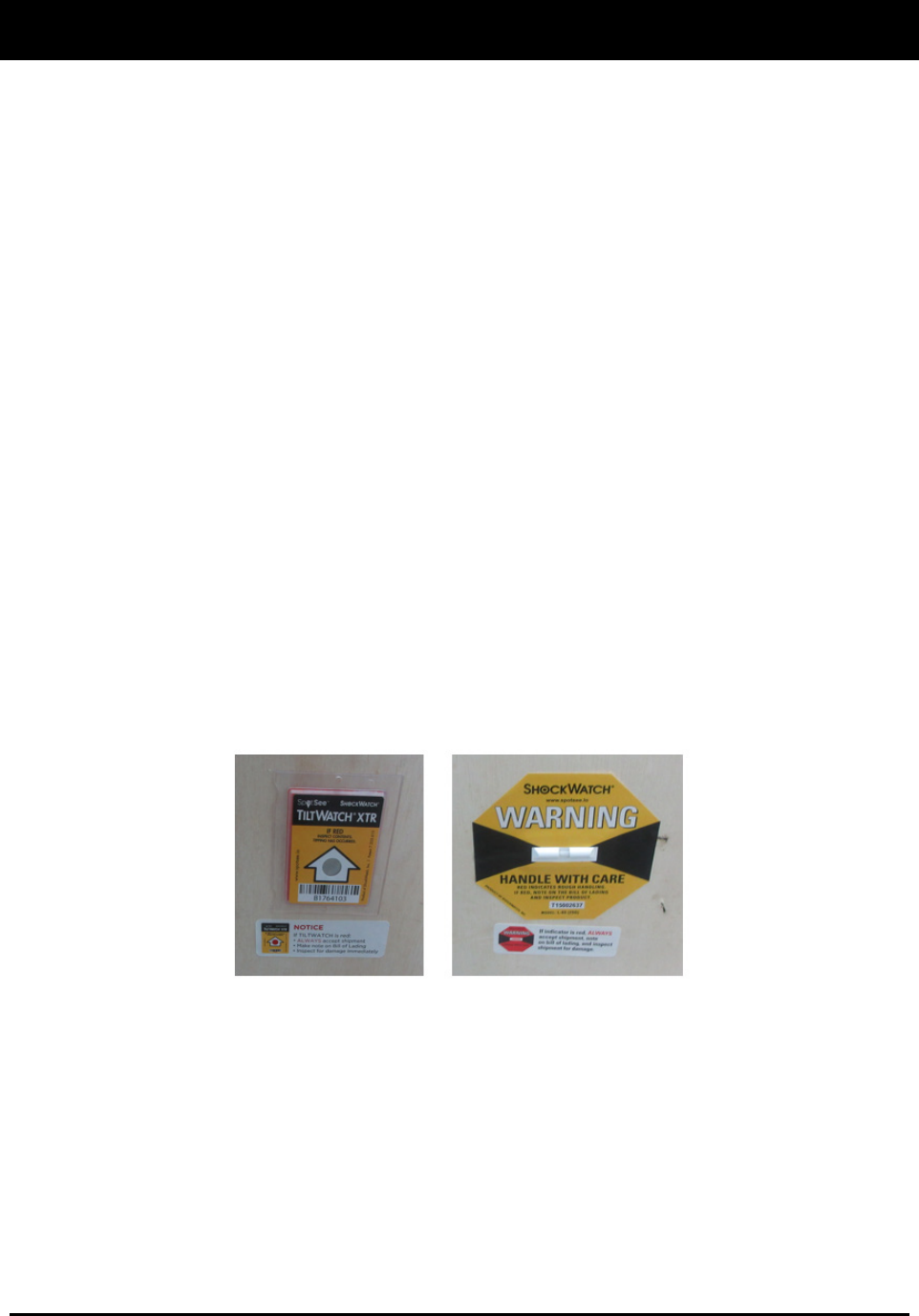

Figure 3-1 Crate Impact Indicator (Tiltwatch and Shockwatch)

3. Use a forklift with a 2000 kg capacity. Safely lift the crate and place it at the designated

place.

FlexTRAK-OH Material Handling System IOM Manual Installation

3.4 Uncrating and Placing the FlexTRAK-OH

1. Safely dismantle the machine crate as instructed by the crate dismantling instructions.

2. Remove any screws that anchored the machine with the crate floors.

3. Identify the machine lifting point.

4. Place in the forklift fork under the machine profile as guarded by the lifting point label on

the machine (Figure 3-2).

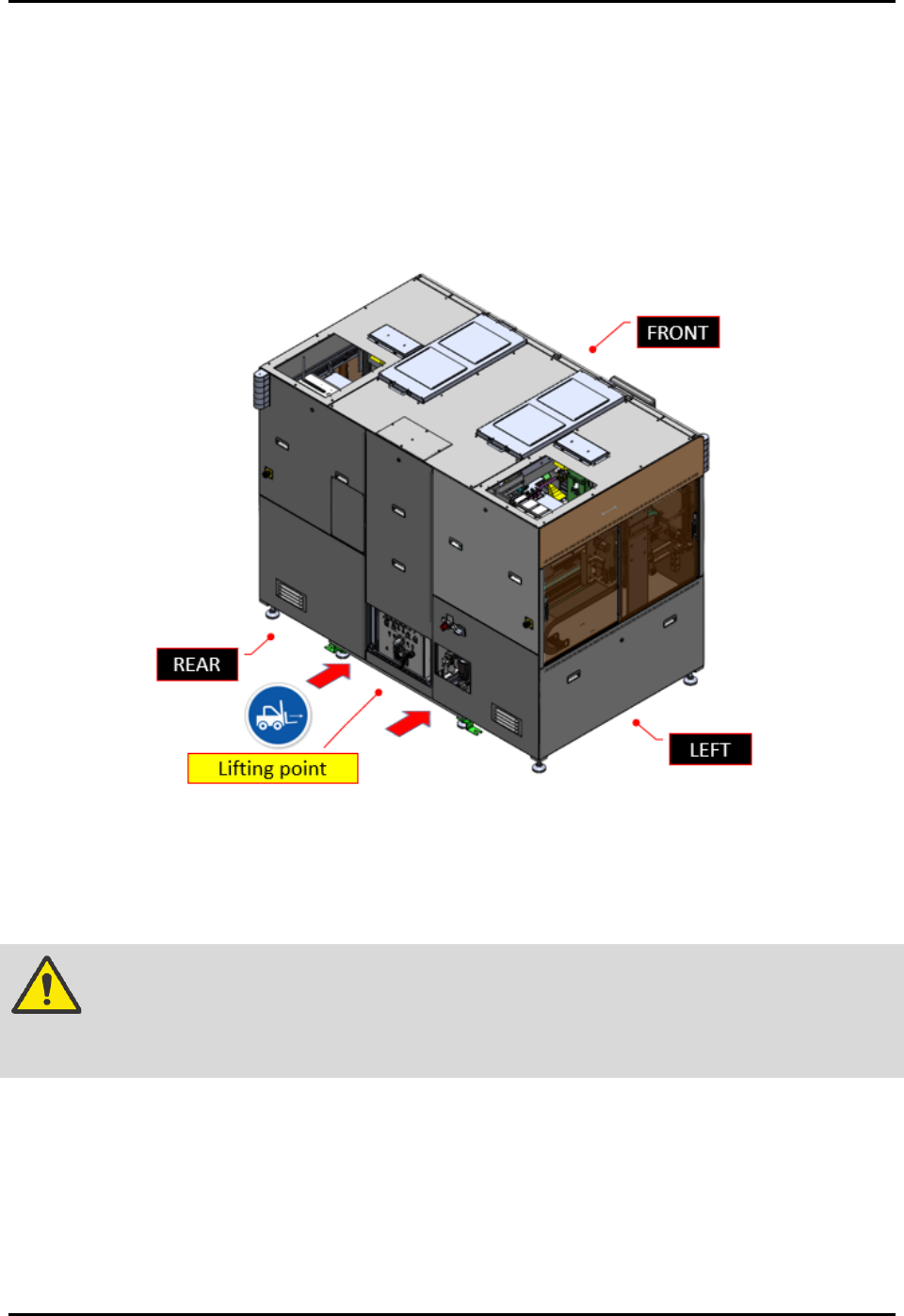

Figure 3-2 Machine Lifting Point

5. Jack up the machine until the leveling foot pad gap with the floor is more than 10 cm.

6. Safely move the machine to the designated production place.

WARNING! Do not use the four castor wheels installed on machine bottom to move the entire

machine during relocation (Figure 2-14). This may cause machine damage when

the area is uneven or has an earthquake seismic risk.

7. Setup the machine orientation and clearance distance requirement as required by the

production plant. See 8.5 Clearance Distance Requirement.

8. Safely move down the forklift and place the machine in a safe area.

9. Remove all tie wraps from the machine components.

 Cut the tie wrap carefully without damaging the machine cables, wires, tubing, etc.
