FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-63
3. Select the desired recipe number for new production setup.

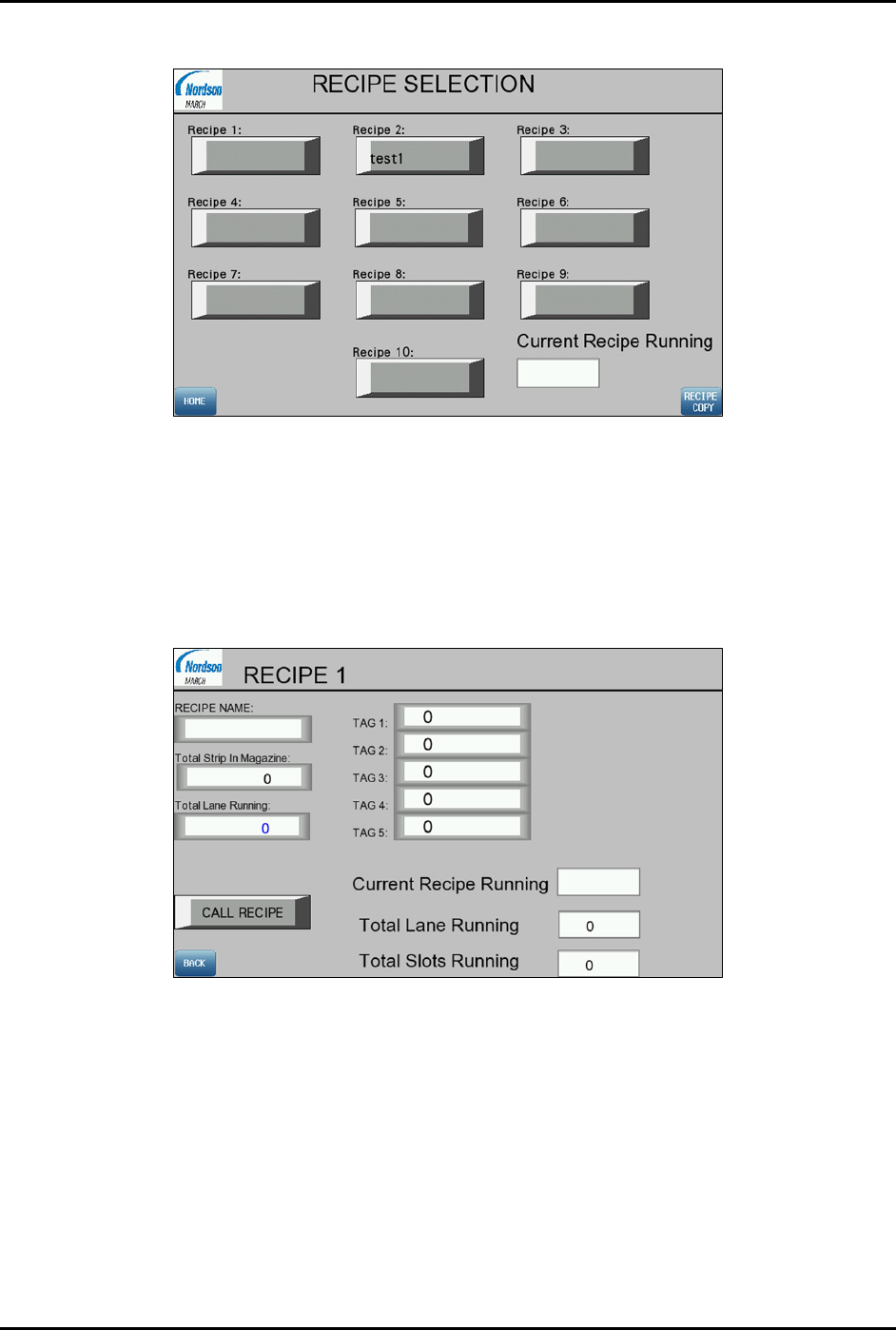

Figure 4-102 Recipe Selection Screen
4. For example, Figure 4-103 shows Recipe 1 is selected. Enter the following criteria into the
screen.
a. Recipe Name: Name of Recipe 1.
b. Total Strip In Magazine: Number of magazine slots.
c. Total Lane Running: Number of strip lane kit.
Figure 4-103 Recipe 1 Screen
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-64 © 2023 Nordson Corporation
4.16 Manual Magazine Loading and Unloading
4.16.1 Magazine Loading
1. Manually check the magazine replenish status through the HMI screen.
2. If the magazine is depleted, open the magazine loading cover (A1) (Figure 4-104).
3. Lift up the access cover until the latch is locked on the cover.
Item Description
A1 Magazine with untreated strips loading port.
B1 Magazine with treated strips unloading port.

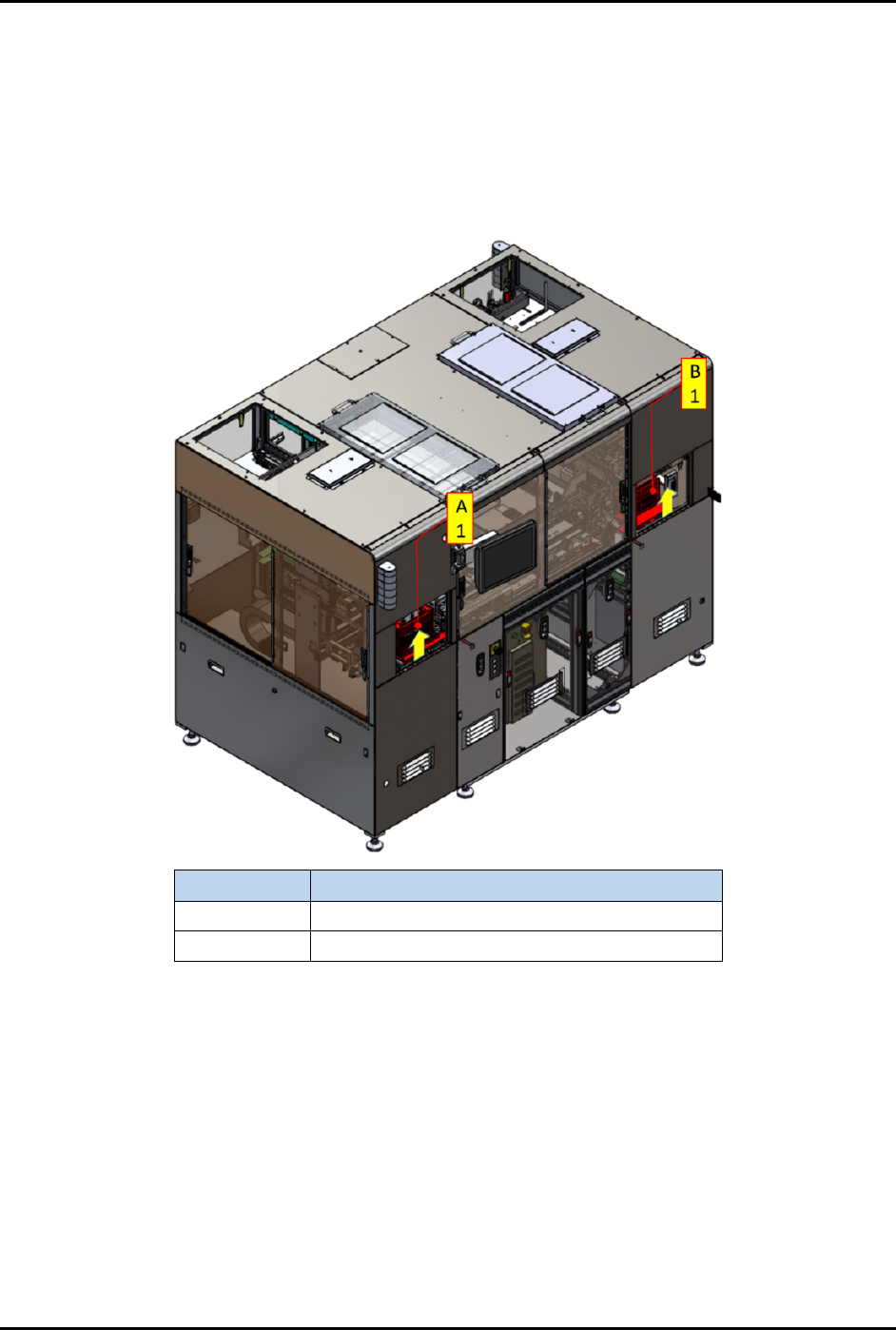

Figure 4-104 Magazine Loading and Unloading Ports
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-65
4. Prepare a magazine loaded with untreated strips.
Before loading magazine into manual loading port, ensure the magazine barcode (2)
and the loading direction (1) are displayed on the magazine top surface (Figure 4-105).
5. Press down both the strip feed in stopper latch (3) and the strip out stopper latch (4) to close
the magazine stopper bar.
Figure 4-105 shows the open position and close position of the stopper latch.
Item
Description
1
Magazine Loading Direction
2
Magazine Barcode
3
Strip Feed In Stopper Latch
4
Strip Out Stopper Latch

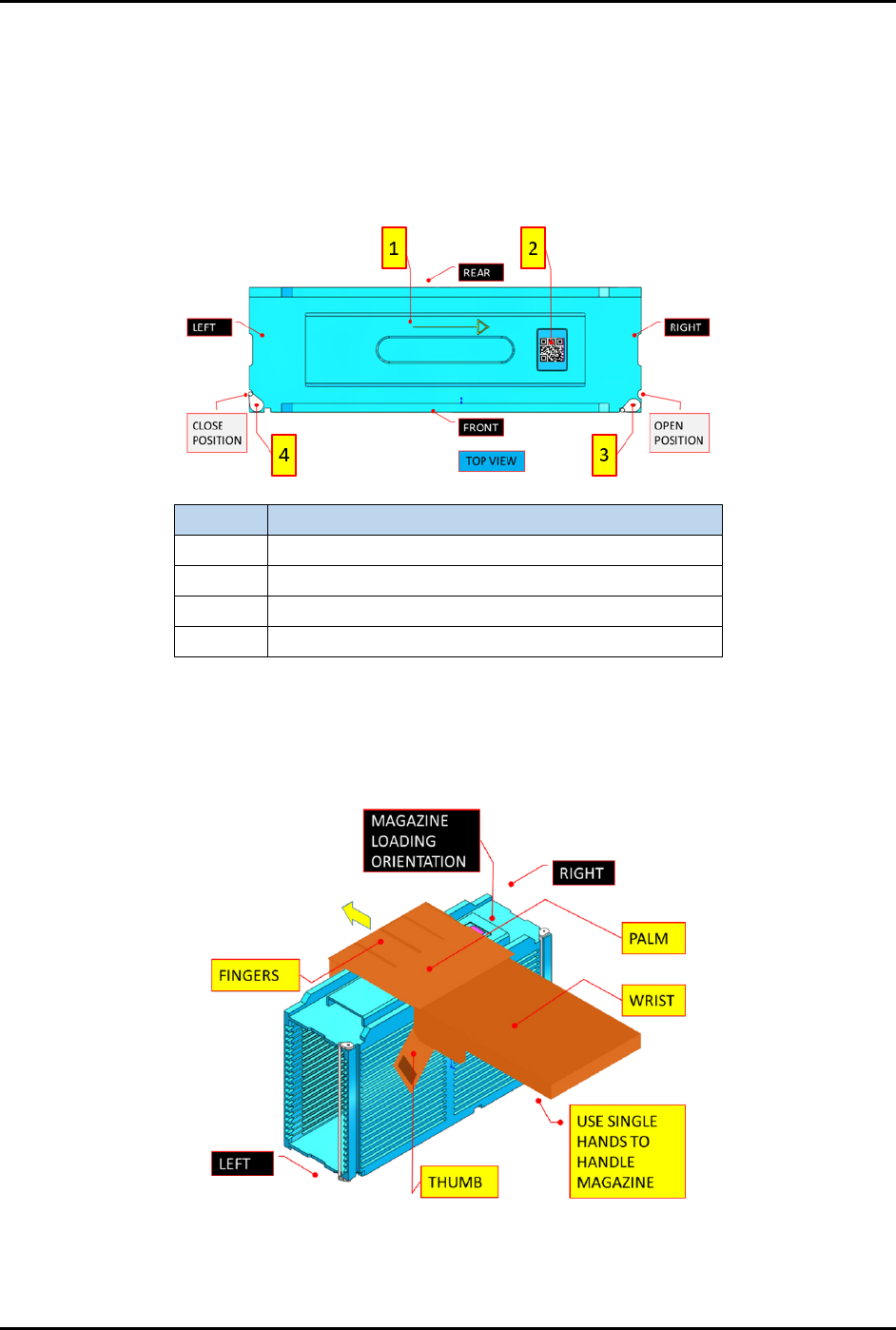

Figure 4-105 Preparing the Magazine
6. Hold the magazine and walk to the manual loading port area (Figure 4-106).
Do not touch the strips with bare hands. Use authorized hand gloves permitted by the
manufacturing plants.
Figure 4-106 Loading the Magazine 1
